Specification: ( Manual)

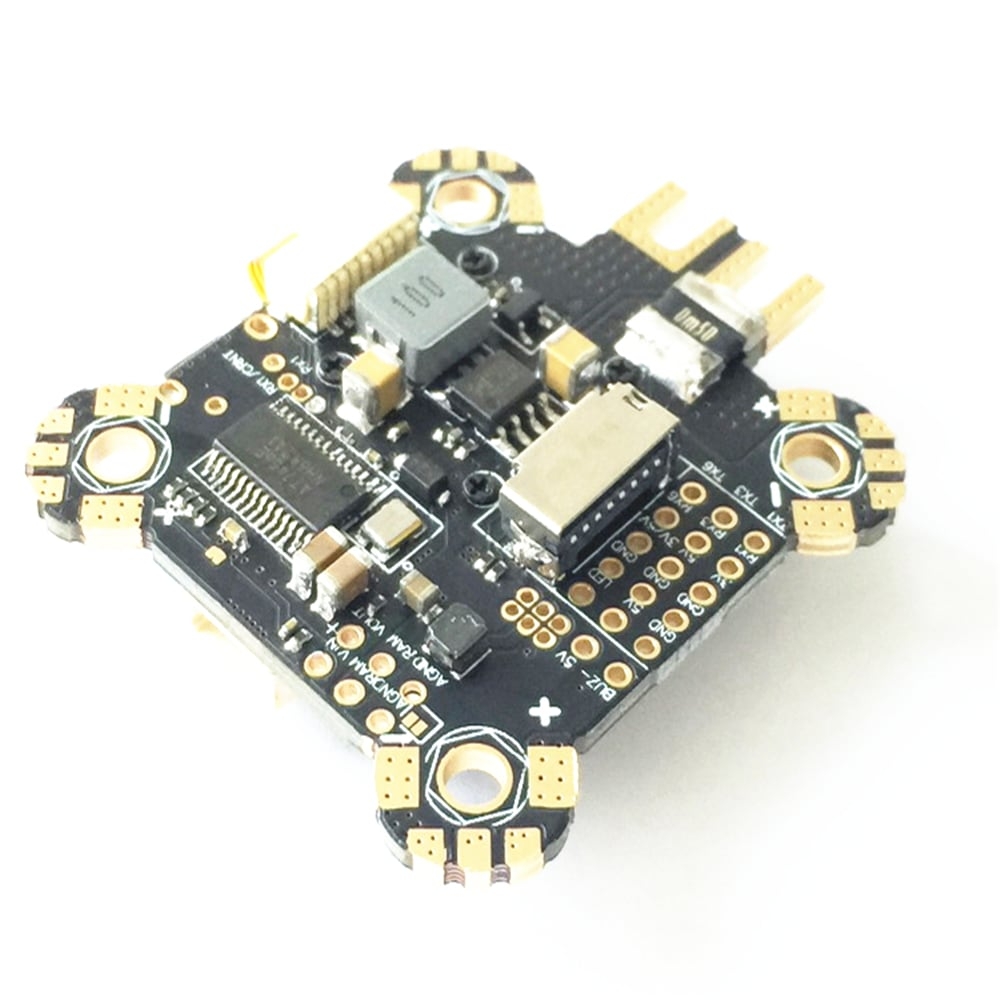

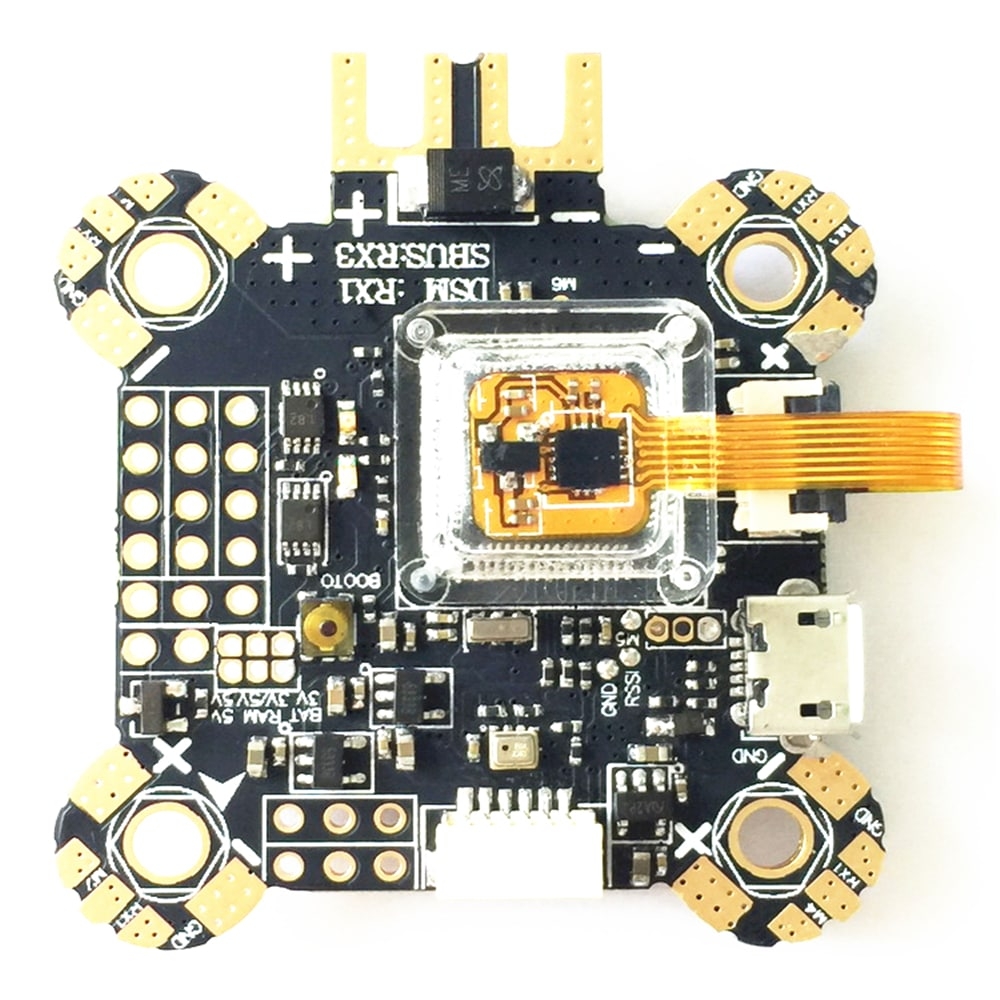

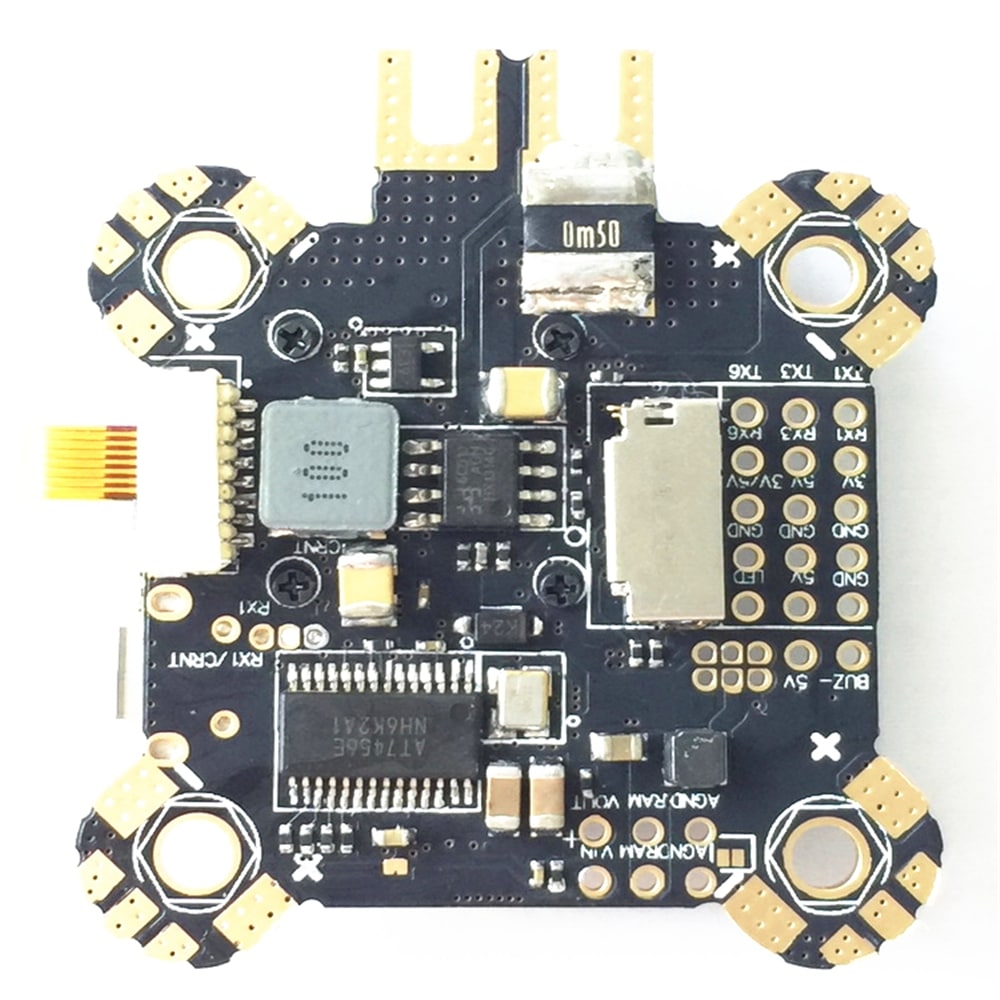

Item Name: F4 Flight Controller AIO OSD PDB BEC Current Sensor and LC Filter
Model: F4 Pro Corner
MCU: STM32F405
Lipo: 3-6S
BEC Output: 5V at 2A
Hole Distance: 30.5x30.5mm
STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
Built-in Current sensor
Built-in Professional level PDB
Built-in LC filter for Camera power(max 800ma)
Firmware Update: betaflight 3.2.0 4SD
Features:
STM32F405 MCU
Use ICM20608 over SPI for the best possible flight performance
Supports Lipo direct plug in (3-6S)
With onboard damping box, the ICM20608 runs perfect under 32k Gyro loop.
With onboard barometer and AB7456 OSD chip for the BetaFlight integrated OSD
There is only 0.2-0.5 mohm internal resistance from input to each output pads
You can use Target OSF4SD to update the firmware.
Item Name: F4 Flight Controller AIO OSD PDB BEC Current Sensor and LC Filter
Model: F4 Pro Corner
MCU: STM32F405
Lipo: 3-6S
BEC Output: 5V at 2A
Hole Distance: 30.5x30.5mm
STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
Built-in Current sensor
Built-in Professional level PDB
Built-in LC filter for Camera power(max 800ma)
Firmware Update: betaflight 3.2.0 4SD
Features:
STM32F405 MCU
Use ICM20608 over SPI for the best possible flight performance
Supports Lipo direct plug in (3-6S)
With onboard damping box, the ICM20608 runs perfect under 32k Gyro loop.
With onboard barometer and AB7456 OSD chip for the BetaFlight integrated OSD
There is only 0.2-0.5 mohm internal resistance from input to each output pads
You can use Target OSF4SD to update the firmware.
Specification
Custom |
|
---|---|
General |
Type: Flight Controller |
Dimension and Weight |

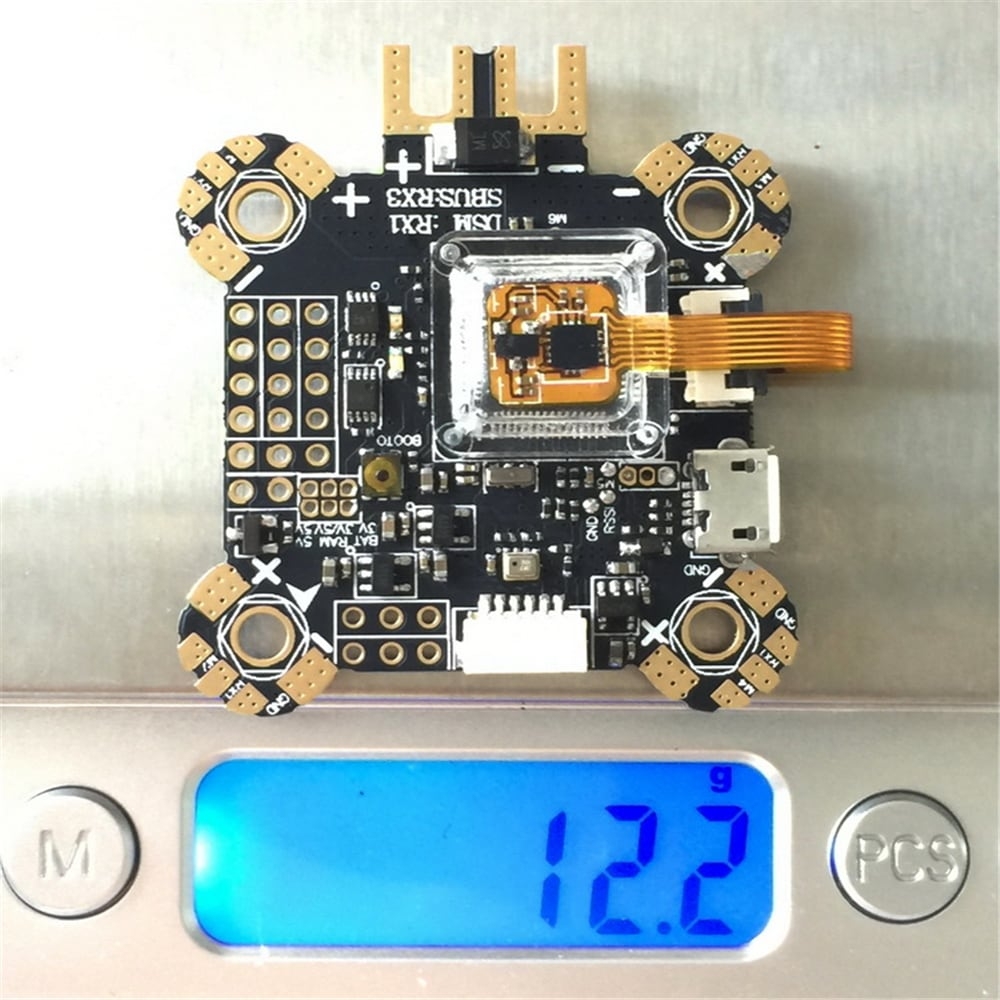

Package weight: 0.0800 kg
Package size (L x W x H): 5.00 x 5.00 x 1.00 cm / 1.97 x 1.97 x 0.39 inches |
Package Contents |

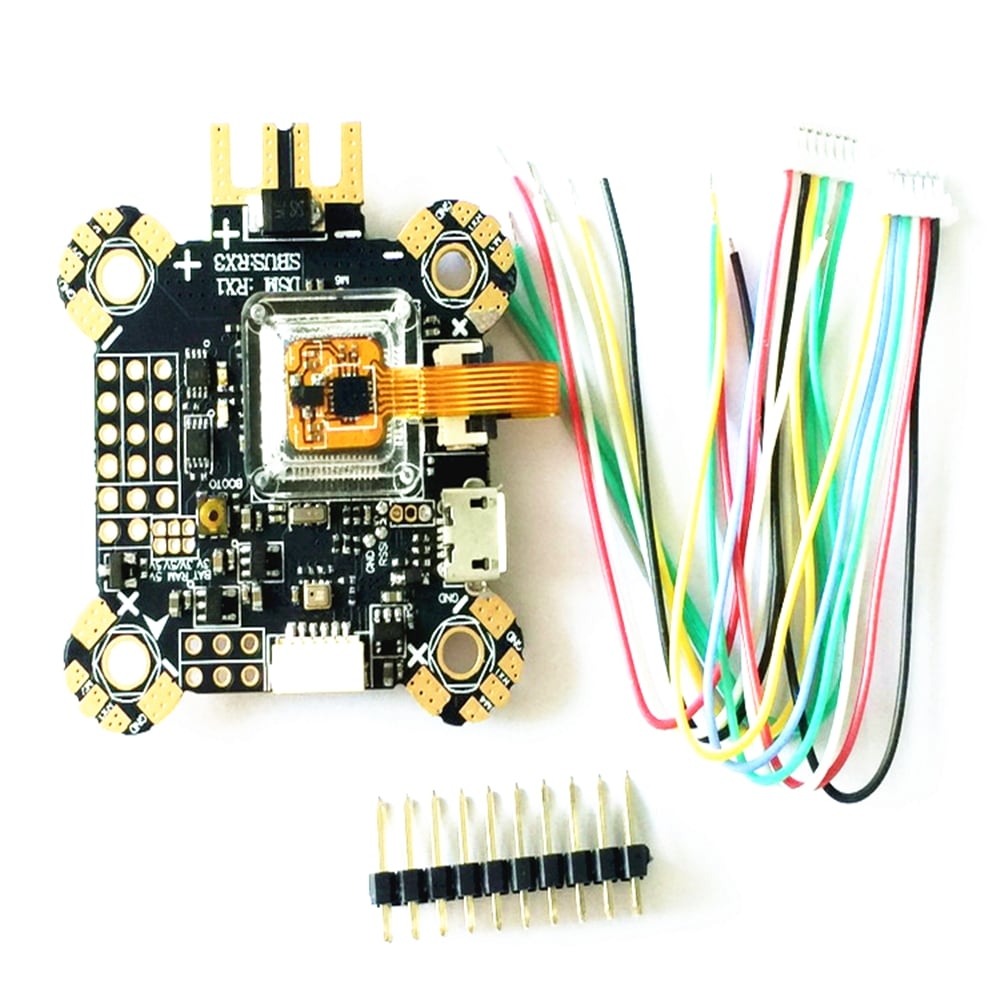

Package Contents: 1 x F4 Flight Controller, 2 x Cable ,1 x Pins |
