4 PCS Racerstar RS30A V2 ESC & 4X Rcerstar BR2206 2600KV Motor & 10 Pairs 5040 3-Blade Propeller
Specification
RS30A ESC:
Brand Name: Racerstar
Item Name:New Beheli_S 30A ESC
Model: RS30A V2
Input Voltage: 2-4S
Con.Current:30A
Peak Current(10s):35A
BEC:NO
Programming :YES
Net Weight: 6.26g
Size:28*13mm

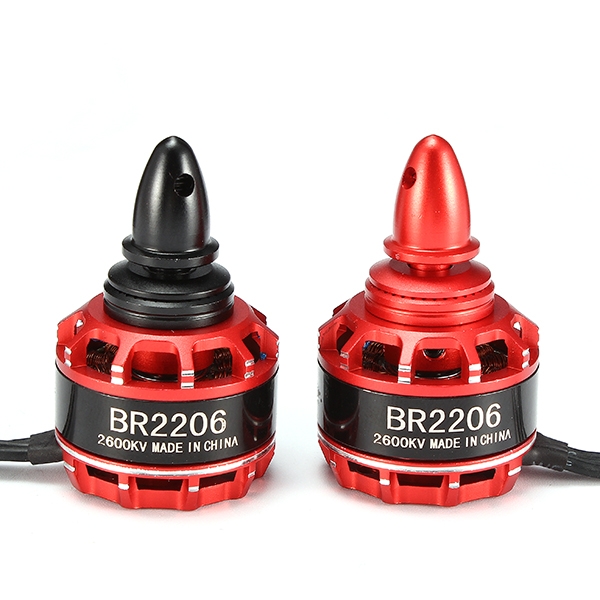

BR2206 2600KV motor:
Brand: Racerstar
Item name: BR2206 2600KV Brushless Motor
RPM/V: 2600KV
Height: 25mm
Width: 27.5mm
Shaft diameter: φ2.98
Motor mount hole size: 4-M2, 2-M3
Weight: 32.5 grams
Voltage: 2-4S
Battery: 2-4S lipo battery
Usage: for 200-300 Multirotor Frame Kit
Tested with 14.8V voltage and 4045 propellers:
Load current: 23.5A
Pull: 680g
Power: 330W
Efficiency: 2.1 (g/W)

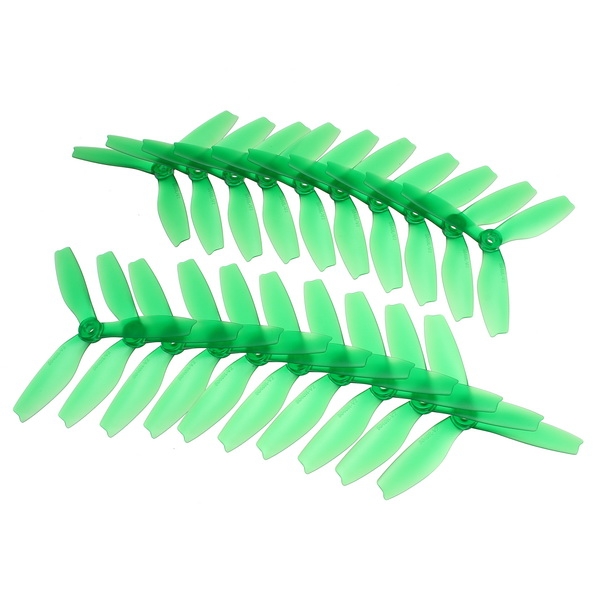

5040 Propeller:
Package Included:
4 X RS30A ESC
2 X BR2206 2600KV CW motor
2 X BR2206 2600KV CCW motor
10 X 5040 3 BladePropeller CW
Brand: Racerstar
Material: PC
Color: green
Quantity: 10 pairs (the same color)
Mounting hole: 5mm
Weight:
98g (10 pairs)
4.9g(one piece)
Usage: for 2204, 2205 2206 etc. 5mm shaft motors.
Package Included:
4 X RS30A ESC
2 X BR2206 2600KV CW motor
2 X BR2206 2600KV CCW motor
10 X 5040 3 BladePropeller CW
10 X 5040 3 BladePropeller CCW
