Highlights
- Customized for Multi-copter, sensitive throttle response
- Suitable for throttle compatible well with motor
- Throttle signals transmitted via twisted pair cable to avoid the crosstalk
- More stable flight
- Maximum refresh frequency up to 500Hz, compatible with all flight controls
- Ultra-low resistance MOSFET with miniaturization, and all flashes are N MOS with high withstanding current;
- Miniaturization design, with high performance capacitor filter on board, weight reduced to 2g, with thick PCB copper and low heat dissipation
Specification
| General | |
|---|---|
| Type | ESC |

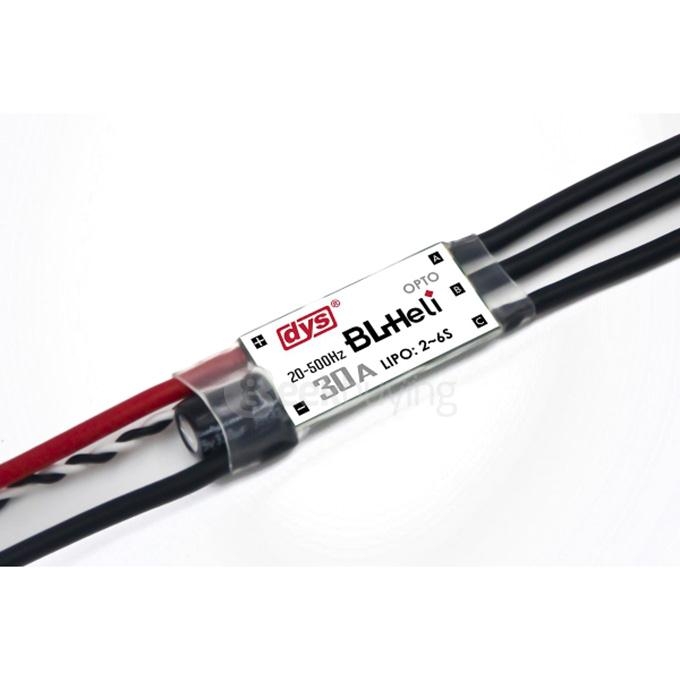

| Model | DYS BL30A |
| Quantity | 4 Piece |
| Compatible | QAV160/180/250/300/330 |
| BEC | OPTO |
| Input Voltage | 2-6s Lipo |
| Signal Frequency | 20-500Hz |
| Outout PWM Frequency | 18KHz |
| Come with BLHeli | Yes |
| Application | Compatible with SimonK and BLHeli |
| Size(LxWxH) | 45x16.6x5.5mm |
| Weight | 14.5g |
| Package Contents | |
| 4 x BL30A ESC | |
