5.8G 48CH 25mW/600mW Switchable Mini FPV AV Transmitter RP-SMA with 5V BEC Output - 15.99 €

Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

Free shipping aviable, Registered postage from 25 €

5.8G 48CH 25mW/600mW Switchable Mini VTX FPV AV Transmitter RP-SMA with 5V BEC Output

Description:

Antenna Connector : RP-SMA, Straight/Right Angle(Optional)

Channel: 48

Transmission frequency: 5.6-5.9Ghz

Input voltage: 2-6S

Transmitting power: 25mw/600mw

Working Current: 190mA / 12V

Working temperature: -10- + 85

Video bandwidth: 8M

Audio Coding: 6.5M

Board Dimensions: 38x18x8mm

Net Weight: 8g

Cables Function :

Red: positive

Black: negative

Yellow: AV cable

Green: audio cable

Blue: Ground

Operation :

Long press button for 3s to adjust frequency

Long press button for 5s to adjust the power: 25mW(L),600mW(H)

Notice : Please connect the antenna before you power on it, or it will be burned.

Frequency:
CH Band CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 A(A) 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz b(B) 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz C(E) 5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz D(F) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz E(R) 5658MHz 5695MHz 5732MHz 5769MHz 5806MHz 5843MHz 5880MHz 5917MHz F 5362MHz 5399MHz 5436MHz 5473MHz 5510MHz 5547MHz 5584MHz 5621MHz

Features :

Super mini size and light weight form

25mW/600mW Switchable

48 channels, almost cover all 5.8G frequencies.

Package Included:

1 x 5.8G 48CH 25mW/600mW Switchable AV Transmitter

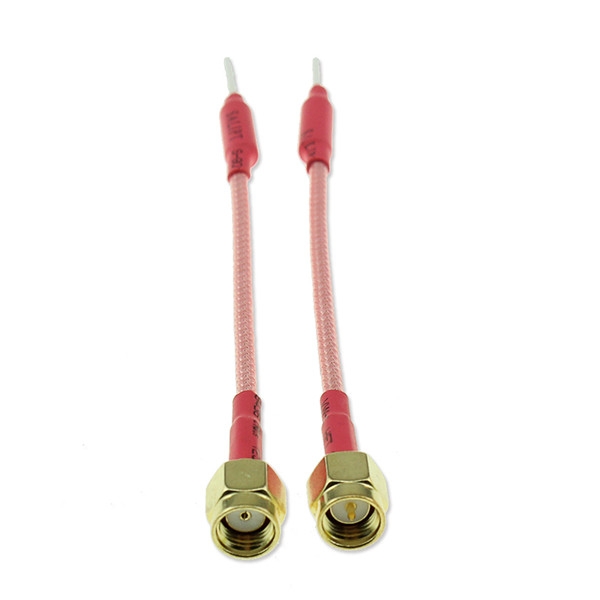

1 x Antenna

1 x cable
