Main Features:

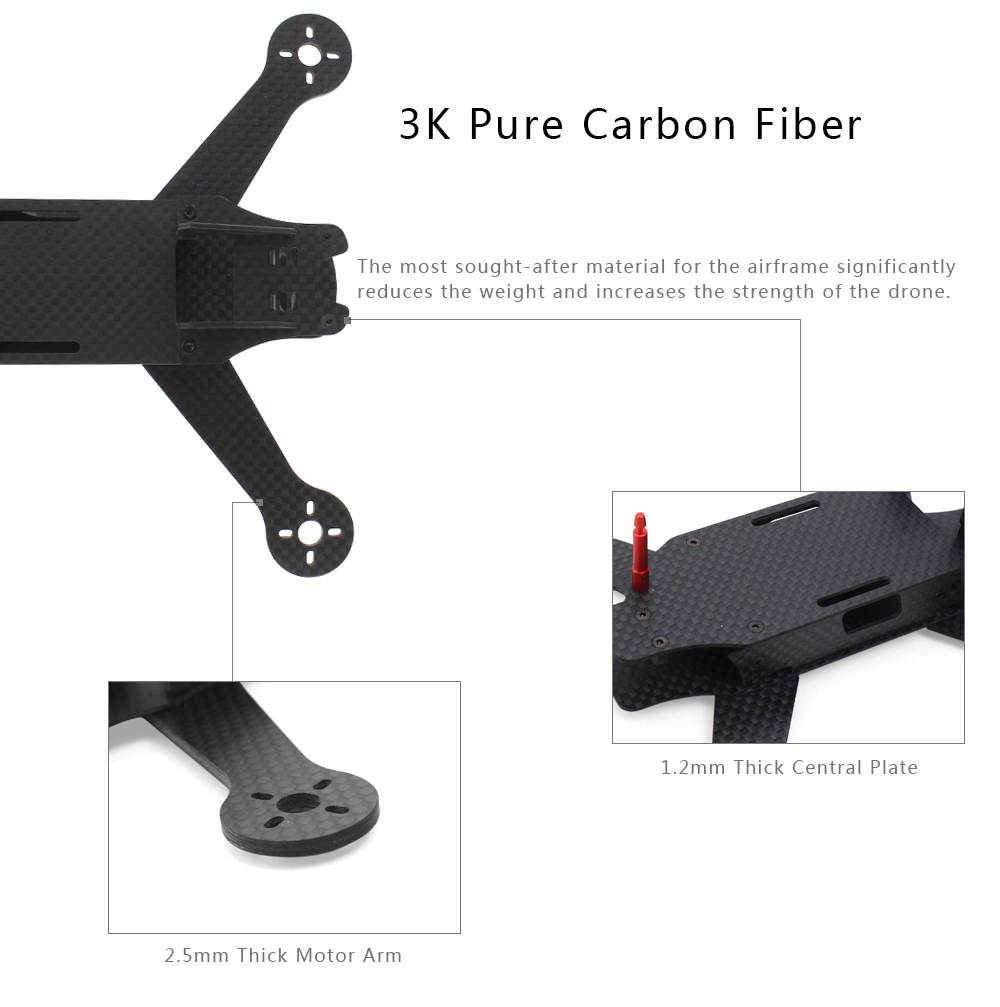

- 3K pure carbon fiber with a wheelbase of 190mm and a light weight of 110g

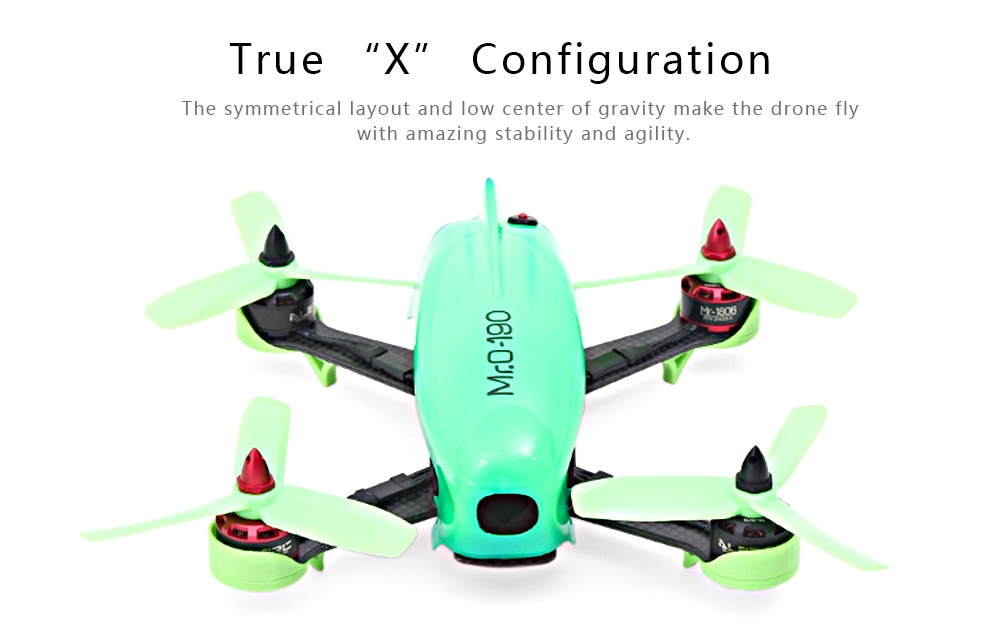

- True "X" layout and low center of gravity design for stable and agile flight

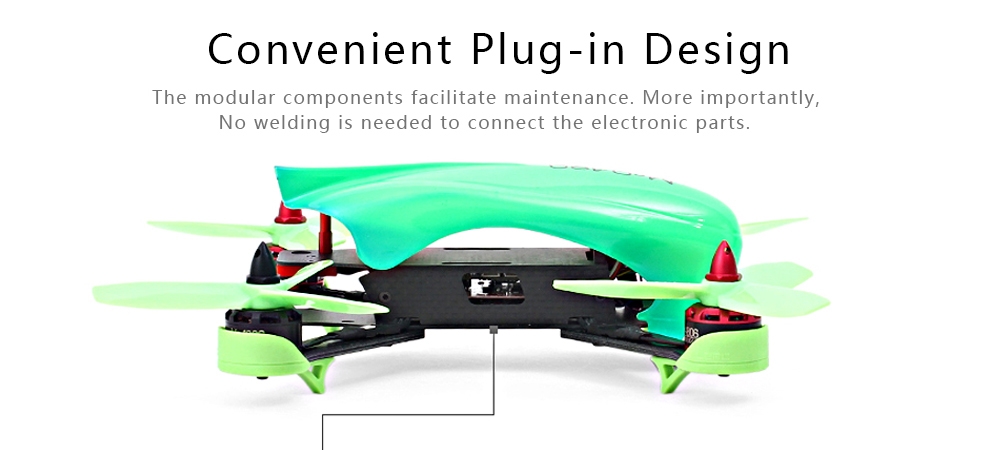

- Modular components greatly increase the ease of maintenance, and the plug-in design does away with welding

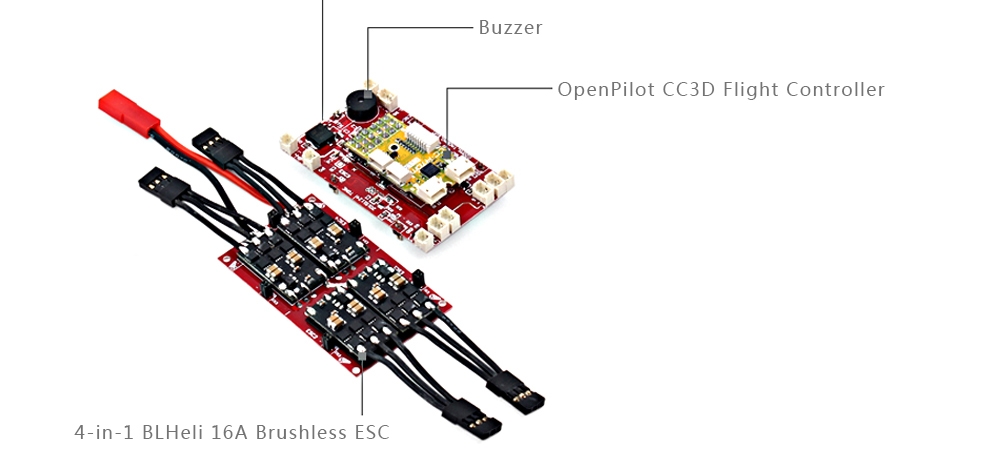

- Flight control board integrated lighting control, low voltage alarm buzzer and so on

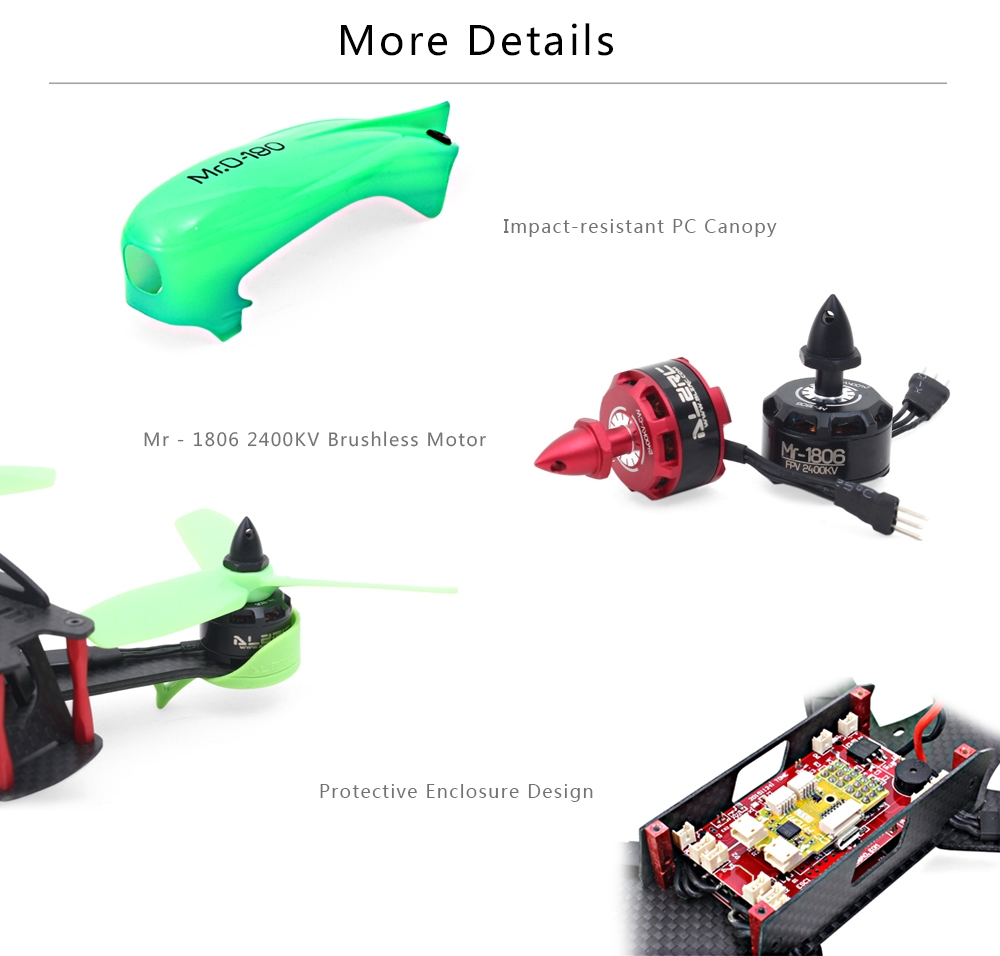

- High-quality and impact-resistant PC material for the streamlined canopy
Specifications:
Wheelbase: 190mm

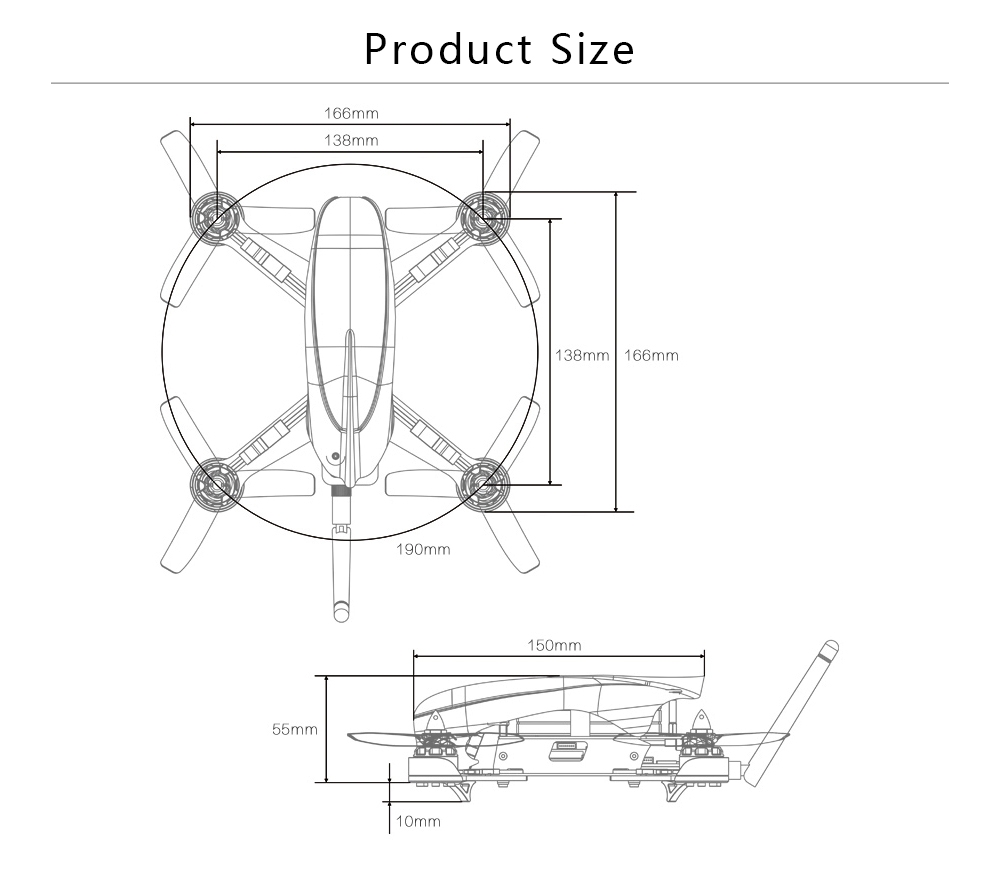

Dimensions: 166 x 166 x 55mm
Frame kit weight: 110g
Brushless motor: Mr - 1806 2400KV
Brushless ESC: BLHeli 16A 2 - 4S
Flight controller: OpenPilot CC3D
Camera: 600TVL CMOS
AV transmitter: 5.8G 40CH 200mW
Note:
This product does not include battery, receiver, or transmitter.
It is recommended to use 850 - 1000mAh 3S 25C LiPo battery as the power supply.
Specification
General |
Brand: ALZRC
Type: Frame Kit |
---|---|
Racing Quadcopter Parameters |
Wheelbase: 190mm |
Motor |
Model: Mr - 1806
KV: 2400 CW / CCW: CCW,CW |
Camera |
Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli
Input Voltage: 2 - 4S |
Dimension and Weight |
Package weight: 0.395 kg
Product size (L x W x H): 16.60 x 16.60 x 5.50 cm / 6.54 x 6.54 x 2.17 inches Package size (L x W x H): 33.00 x 22.00 x 8.00 cm / 12.99 x 8.66 x 3.15 inches |
Package Contents |

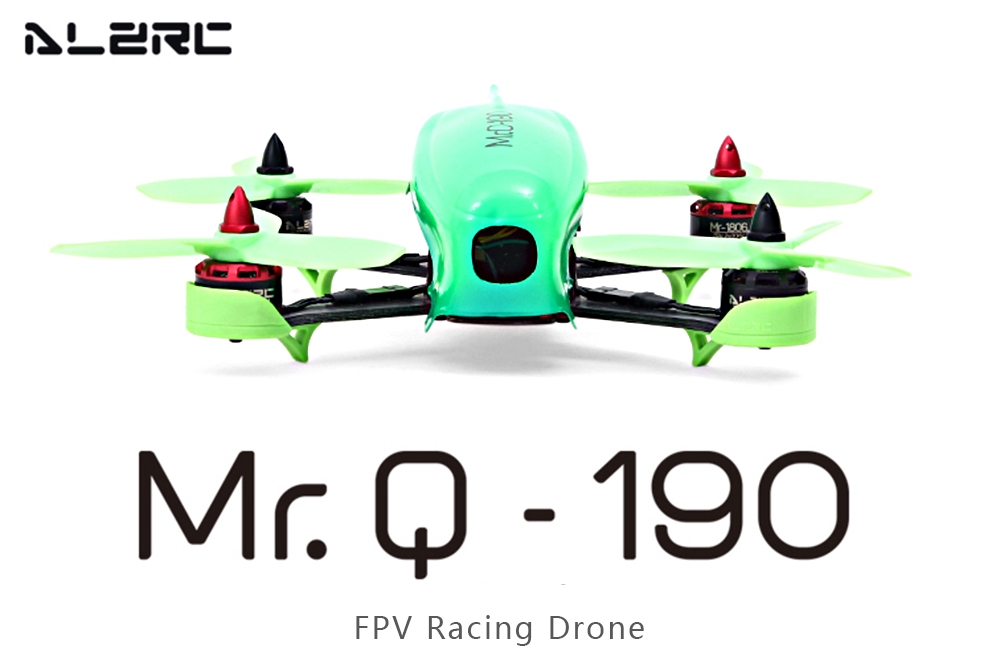

Package Contents: 1 x Mr. Q - 190 FPV Racing Drone |
