Main Features:
- 5 inch big PMMA screen with 93 percent light transmittance presents 800 x 480px HD 16:9 image to you

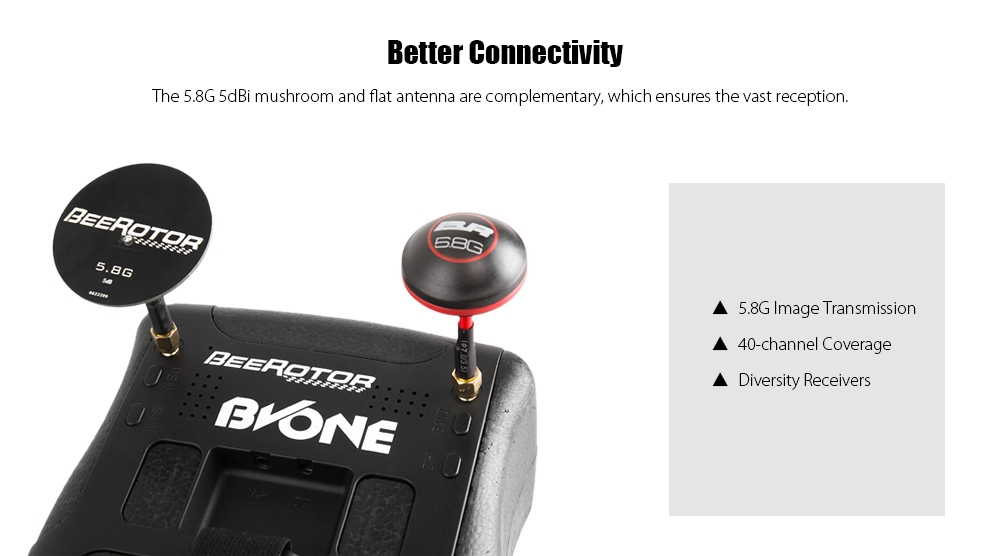

- 5.8G image transmission, 40-channel coverage ( including RaceBand ), dual 5dBi antennas, built-in diversity receivers
- 7 - 23V wide voltage input. It is recommended to use 2 - 3S lithium-ion / LiPo battery
- Power-saving. It can work non-stop for more than 7 hours with 2200mAh power supply

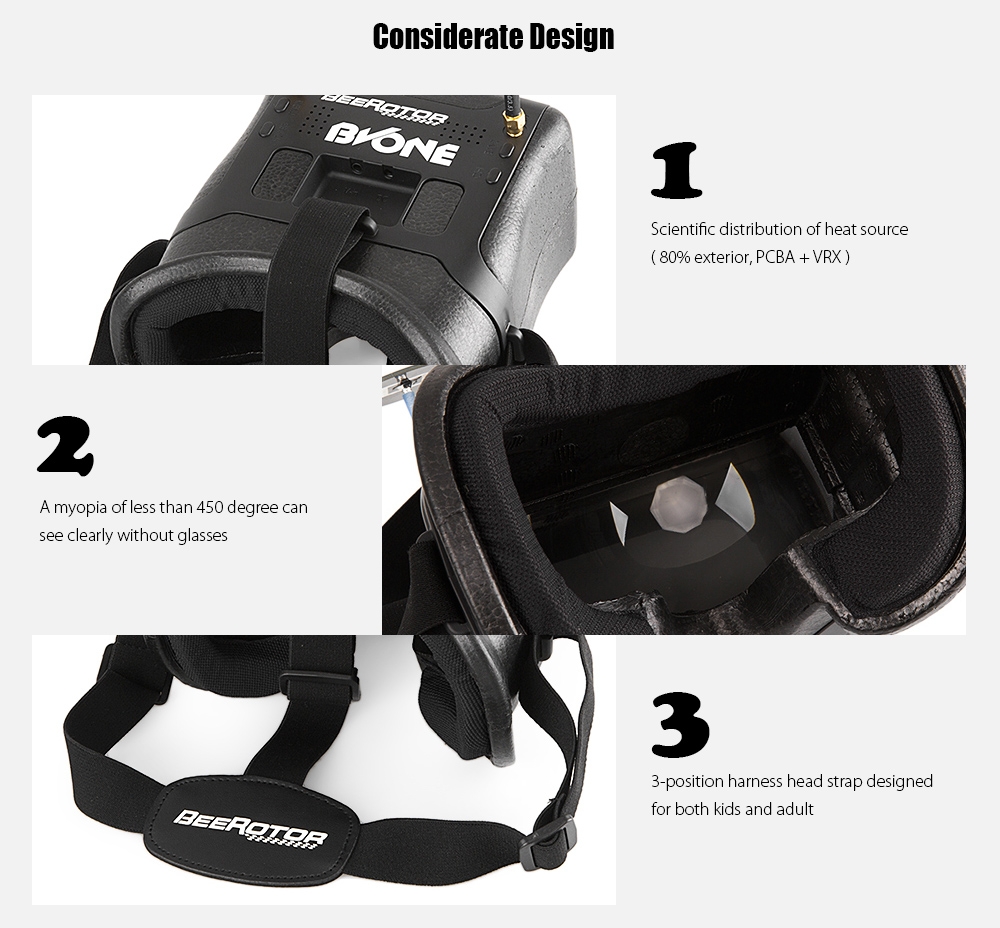

- Scientific distribution of heat source, 20 percent interior ( screen ), 80 percent exterior ( PCBA + VTX )
Specifications:
Display
Screen: 5 inch PMMA, 93 percent light transmittance
Resolution: 800 x 480px
TV system: PAL / NTSC / Auto
Aspect Ratio: 16:9
Power Supply
Operating voltage: 7 - 23V
Operating current: 460mA at 7.4V
Recommended battery: 2200mAh ( not included )
Working time: more than 7 hours with 2200mAh battery
Connectivity
Frequency: 5.8GHz
Channels: 40 ( including RaceBand )
Antenna gain: 5dBi
Sensitivity: -92dBm
Receiver type: diversity receiver
Interface: SMA connector, AV IN
Channel searching: auto
Specification
General |
Brand: BEEROTOR
FPV Equipments: FPV Goggles,FPV Video Goggles |
|---|---|
FPV Goggles |
Resolution: 800 x 480px
Screen size: 5 inch Working Time: 7 hours with 2200mAh battery Sensitivity: -92dBm Antenna: dual 5dBi antennas TV System: Auto,NTSC,PAL Operating Voltage Range: 7 - 23V |
Dimension and Weight |
Product weight: 0.230 kg
Package weight: 0.635 kg Product size (L x W x H): 16.40 x 16.00 x 12.00 cm / 6.46 x 6.3 x 4.72 inches Package size (L x W x H): 25.00 x 19.00 x 13.00 cm / 9.84 x 7.48 x 5.12 inches |
Package Contents |
Package Contents: 1 x Pair of Goggles, 1 x AV Cable, 1 x Power Cable, 1 x Female JST to Male XT60 Adapter, 1 x Chinese-English Manual, 1 x Mushroom Antenna, 1 x Flat Antenna |
