Main Features:
- Optimization for CleanFlight / BetaFlight firmware

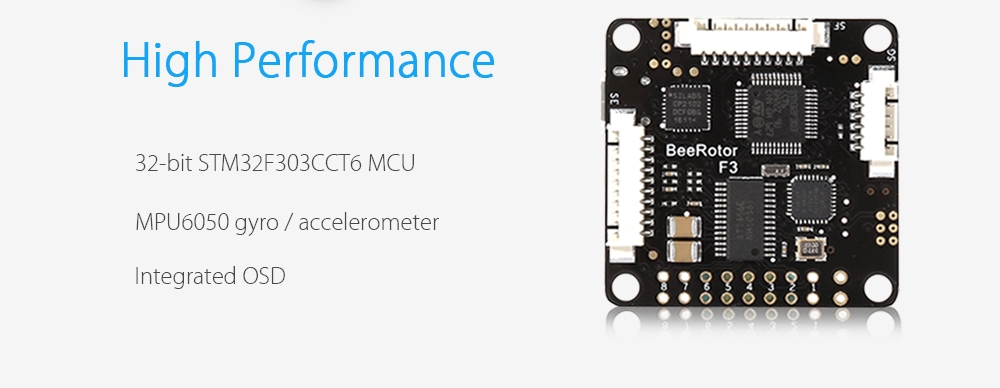

- ARM Cortex - M4 32-bit MCU STM32F303CC with 256KB flash, 40KB SRAM and hardware floating point unit
- MPU6050 and BMP180 / BMP280 sensors
- Build-in 8MB flash for blackbox flight data logging
- On-board OSD with absolutely original MAX7456EUI+ and standard FTDI debug port
- Receiver connector for PPM / SBUS / SumD / DSM2 / DSMX and RSSI input
- Up to 3 serial ports and 8 PWM outputs
- Multifunctional connector for SWD / UART2 - 3 / soft serial / buzzer / LED strip / voltage detection
- Multifunctional OSD connector for video input / video output / ICSP / debug port ( UART1 )
- PDB connector for 5V input / current and voltage detection
- Power input reverse polarity protection
Specifications:
Power input: 5.0 - 5.5V
Size: 35 x 35 x 9mm
Mounting hole spacing: 30mm

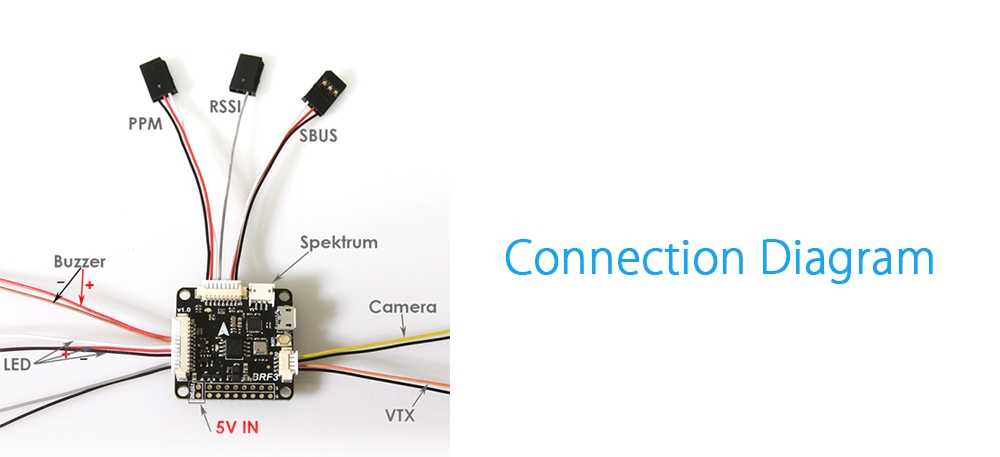

Connection cables: for PPM / RSSI / SBUS / SumD receiver, camera / AV transmitter, buzzer / LED strip / voltage detection, OSD debug port to FTDI adapter
Specification
General |
Brand: BEEROTOR
Type: Flight Controller |
|---|---|
Dimension and Weight |
Product weight: 0.008 kg
Package weight: 0.020 kg Product size (L x W x H): 3.50 x 3.50 x 0.90 cm / 1.38 x 1.38 x 0.35 inches Package size (L x W x H): 12.00 x 17.00 x 1.90 cm / 4.72 x 6.69 x 0.75 inches |
Package Contents |
Package Contents: 1 x Flight Controller, 1 x Pack of Cables, 1 x English Manual |
