Description:

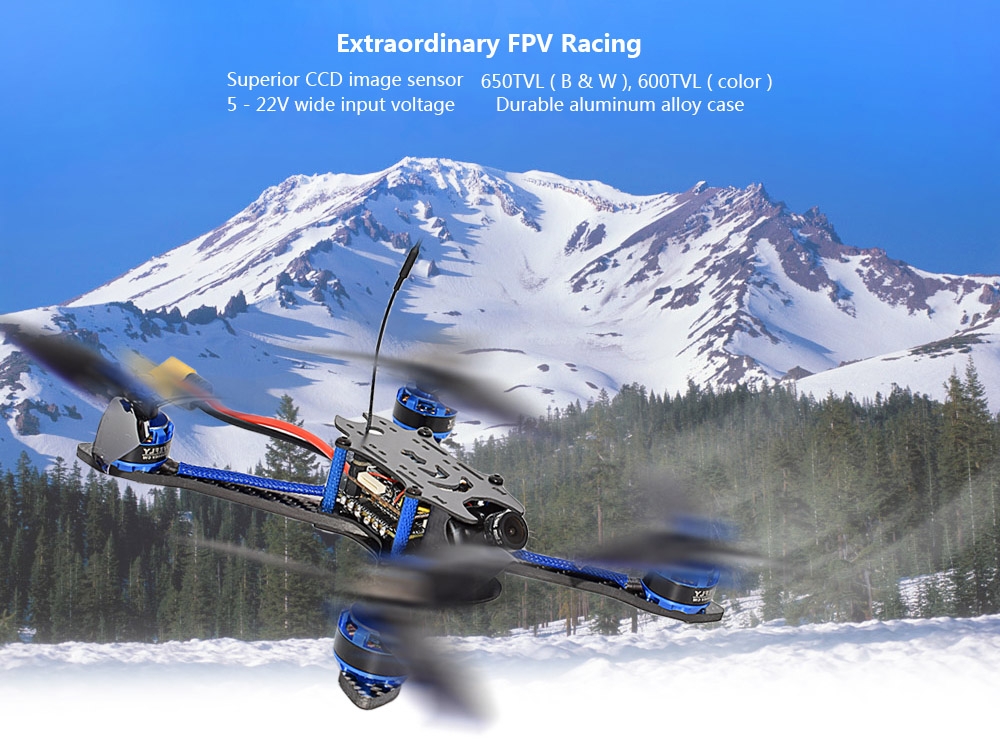

BFlight 210 210mm FPV racing drone features the neat structure, ease of maintenance and the remote adjustment of frequency / band. The flight controller and the video transmitter are separate, which is good for heat dissipation and the high performance. The multirotor has four independent arms, making it convenient to replace any one of them. More importantly, if the receiver supports SBUS, then you are allowed to change the frequency / band directly with the radio transmitter in your hand. With BFlight 210, FPV racing is sure to be more enjoyable.
Main Features:
â Neat structure and good heat dissipation with 3 PCB boards of flight controller, 4-in-1 ESC and video transmitter at the center

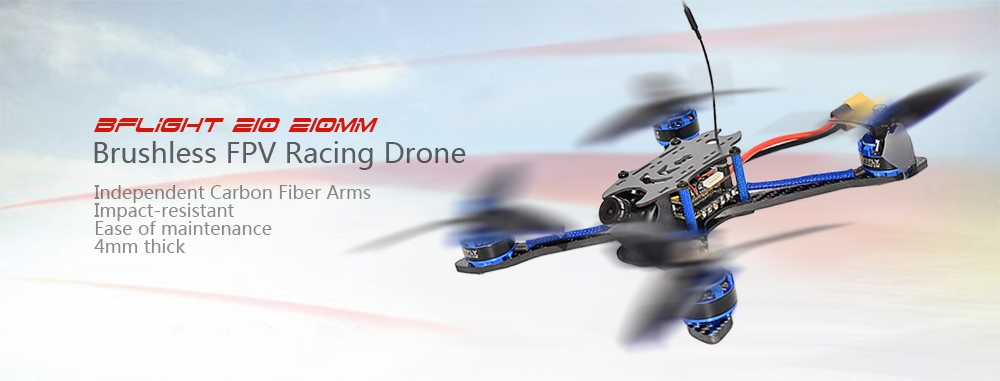

â 4mm ultra thick 3K carbon fiber chassis consists of 4 independent arms, which increases the ease of maintenance
â 4-in-1 BLHeli - S 30A ESC supports Oneshot, Multishot, the latest DShot digital signals as well as firmware updates

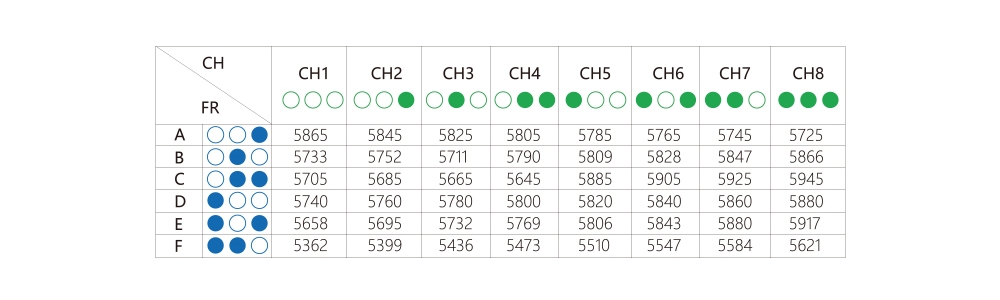

â 5.8G 40CH real-time FPV, 650TVL CCD camera, 1km image transmission range, remotely adjustment of frequency / band ( receiver SBUS support required )
Specifications:
Wheelbase: 210mm
Weight: 267g
Size: 178 x 178 x 38mm ( not including propellers )
Frame material: 3K carbon fiber
Bottom plate thickness: 4mm
Top plate thickness: 1.5mm
Flight controller: OMNIBUS F3 Pro with OSD
Brushless motor: F2205 2300KV
Brushless ESC: 4-in-1 BLHeli - S 30A
Propeller: Gemfan 5152 three-blade
Camera: HS1177, 650TVL ( black and white ), 600TVL ( color )
Image sensor: 1/3 inch Super HAD II CCD
Video transmitter: 5.8G 40CH 25mW / 200mW
Power supply: 11.1 - 22.2V ( 3 - 6S LiPo )
OMNIBUS F3 Pro Flight Controller
Processor: STM32F303 MCU
IMU: MPU6000 SPI
Barometer: BMP280
Integrated BEC: yes
Supported micro SD card: up to 32GB
4-in-1 BLHeli - S 30A ESC
Main processor: EFM8BB2F16G
Driver: FD6288 MOSFET
Upgradable: yes
Continuous current: 4 x 30A
Burst current: 4 x 35A
HS1177 Camera
Image sensor: 1/3 inch Super HAD II CCD
Lens diameter: 2.1mm
Horizontal resolution: 650TVL ( black and white ), 600TVL ( color )
Min. illumination: 0.01 lux
Operating voltage: 5 - 22V
Operating current: 70mA
Case material: aluminum alloy
Different Versions:
PNP: without receiver
BNF DSMX: includes DSMX Pro receiver, compatible with DSM2 and DSMX protocol. 500m receive distance
BNF FrSky: includes FrSky Pro 8-channel receiver, compatible with D8 mode, support SBUS ( default ) and PPM. 500m receive distance
BNF FLYSKY AFHDS: includes FLYSKY AFHDS PPM receiver, compatible with AFHDS transmitter. 500m receive distance
BNF FLYSKY AFHDS 2A: includes FLYSKY AFHDS 2A receiver, compatible with AFHDS 2A transmitter. 500m receive distance
Note:
The colors ( black, blue, red, pink, and transparent ) of the propeller set will be shipped randomly.
Specification
General |
Type: Frame Kit
Version: PNP |
|---|---|
Motor |
Model: F2205
Motor Type: Brushless Motor KV: 2300 |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 650TVL ( black and white ), 600TVL ( color )
Sensor: CCD |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 |
Dimension and Weight |
Product weight: 0.2670 kg
Package weight: 0.5200 kg Product size (L x W x H): 17.80 x 17.80 x 3.80 cm / 7.01 x 7.01 x 1.5 inches Package size (L x W x H): 26.00 x 20.00 x 7.00 cm / 10.24 x 7.87 x 2.76 inches |
Package Contents |
Package Contents: 1 x Drone, 4 x Spare Propeller, 1 x Battery Strap |
