Highlights

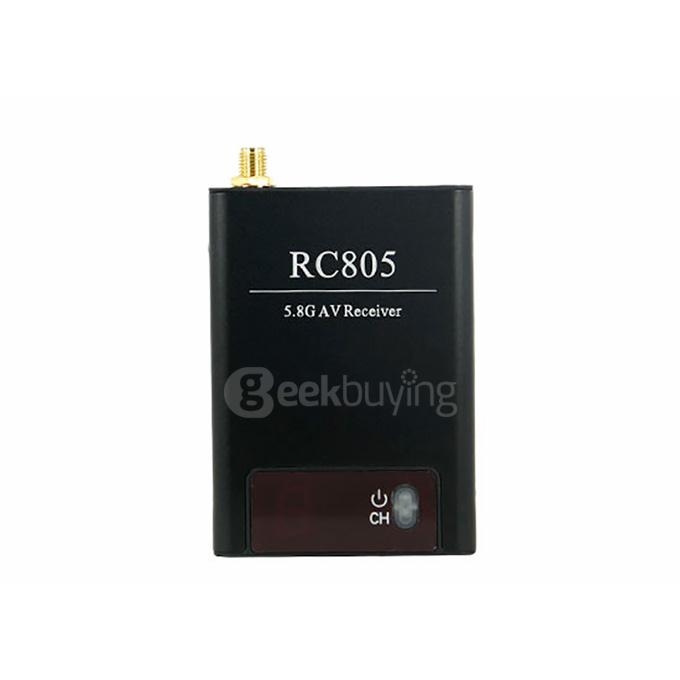

- The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press to channel selection
- This receiver also includes an additional AV output for video recording while using FPV goggles
Specification
| General | |
|---|---|
| Type | Wireless Receiver |
| Model | RC805 |
|
Receiver |
Receiving sensitivity: < -90dBm Receiving frequency: ISM 5.8GHz 8CH |
| Antenna | Antenna port: 50ohm RP-SMA Antenna Gain: 2dBi |
| Power supply | DC12V 220mA |
| Video | Video output level: 1Vp-p @ 75ohm |
| Audio | Audio output level: 1Vp-p @ 10Kohm |
| Dimensions/Weight | Dimensions: 72.5x54.2x15.5mm Weight: 52g |
| Working Frequency | 5725 to 5865 |

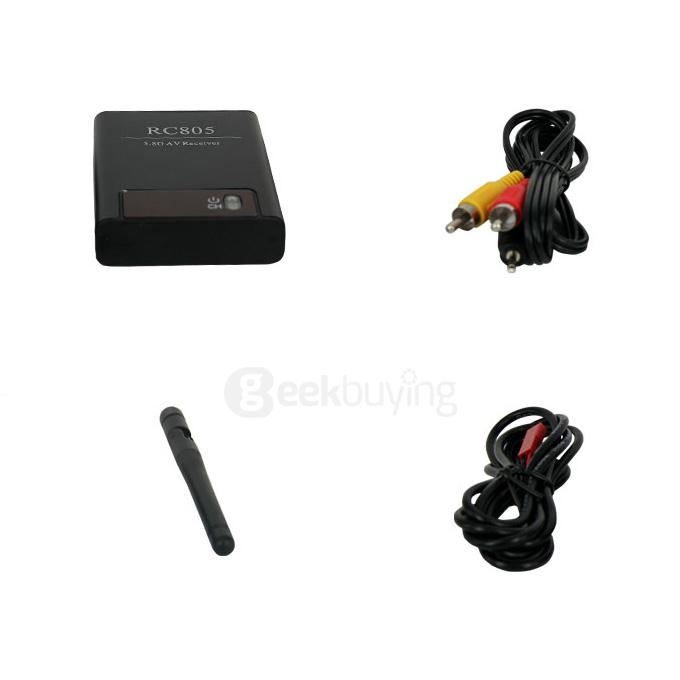

| Package Contents | |
| 1 x RC805 Receiver | |
| 1 x Antenna | |
| 1 x AV ouput | |
| 1 x Power cable (JST) | |
