Specification:

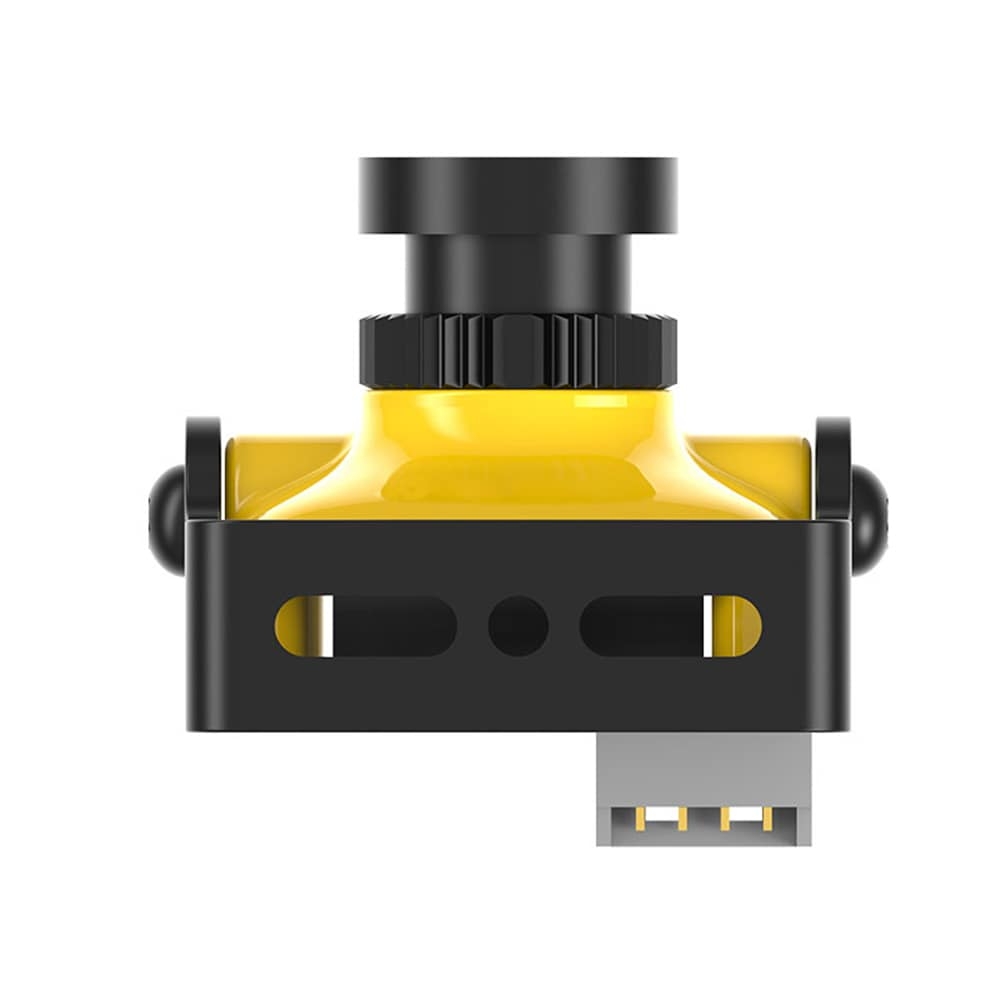

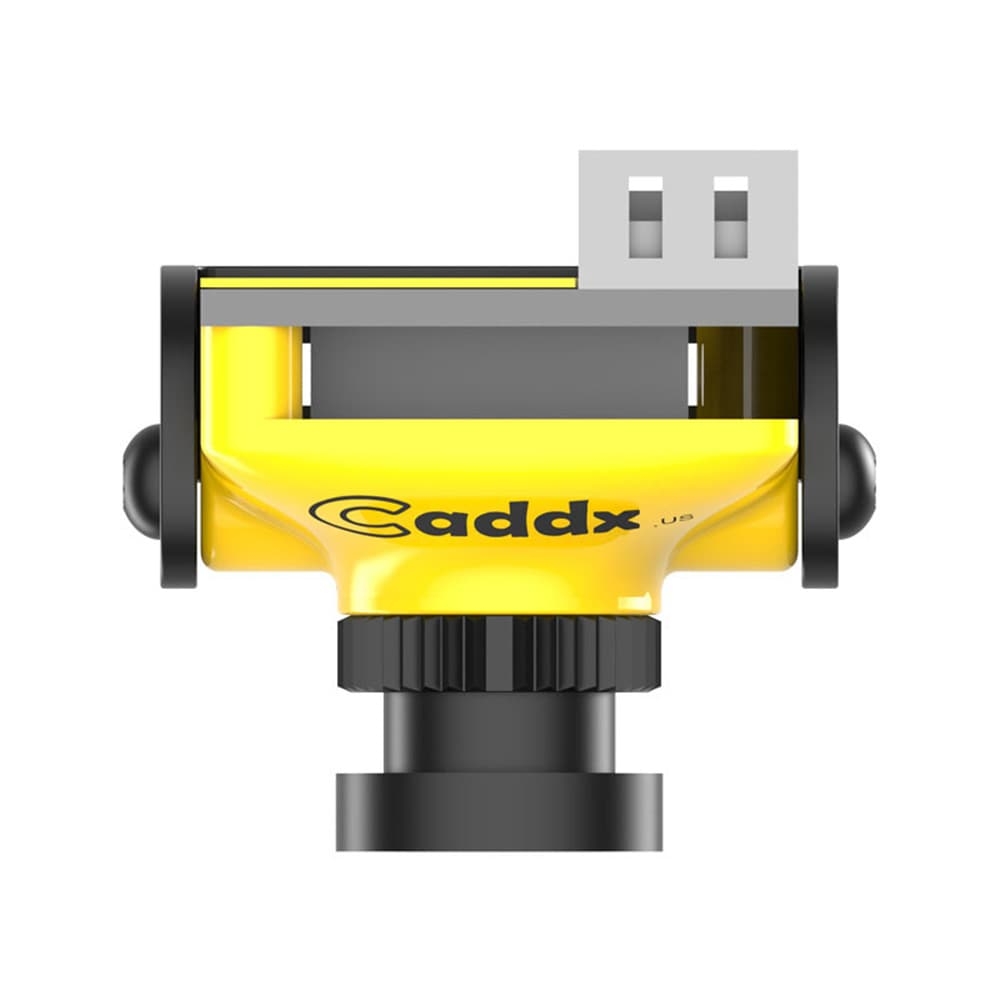

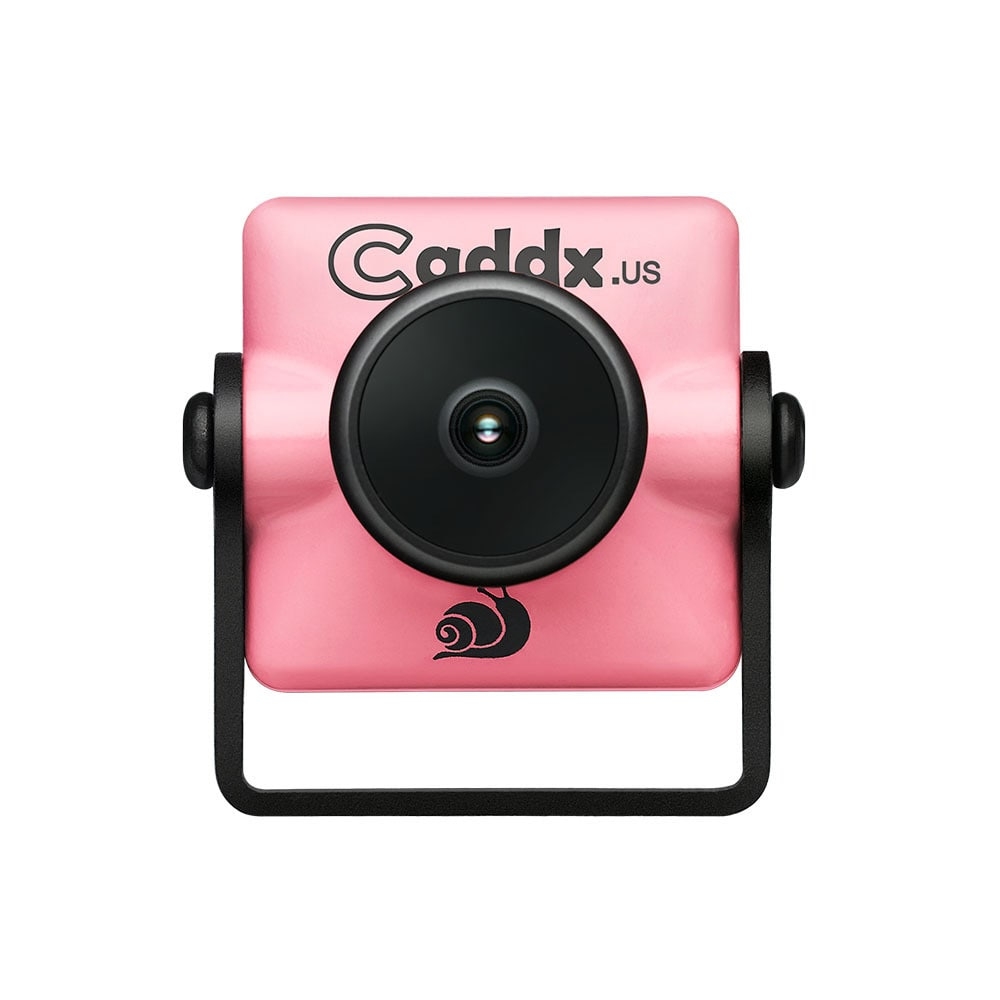

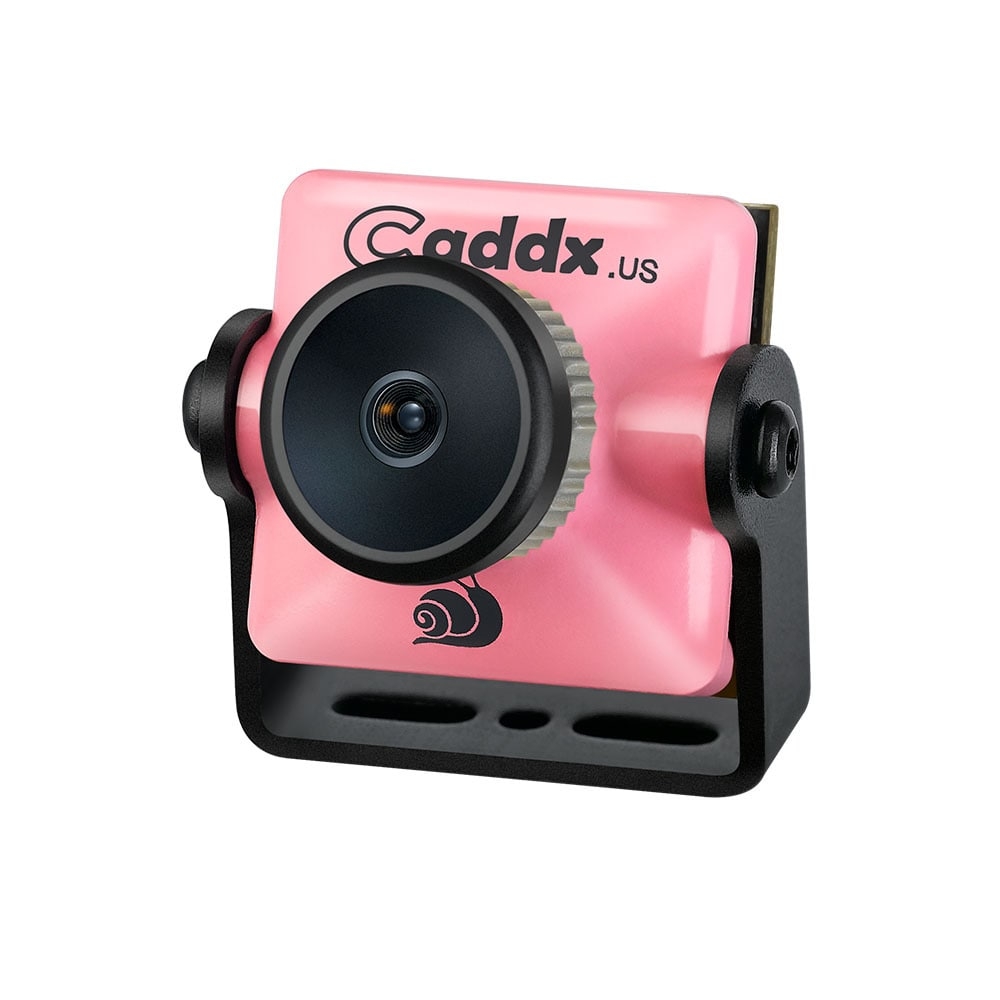

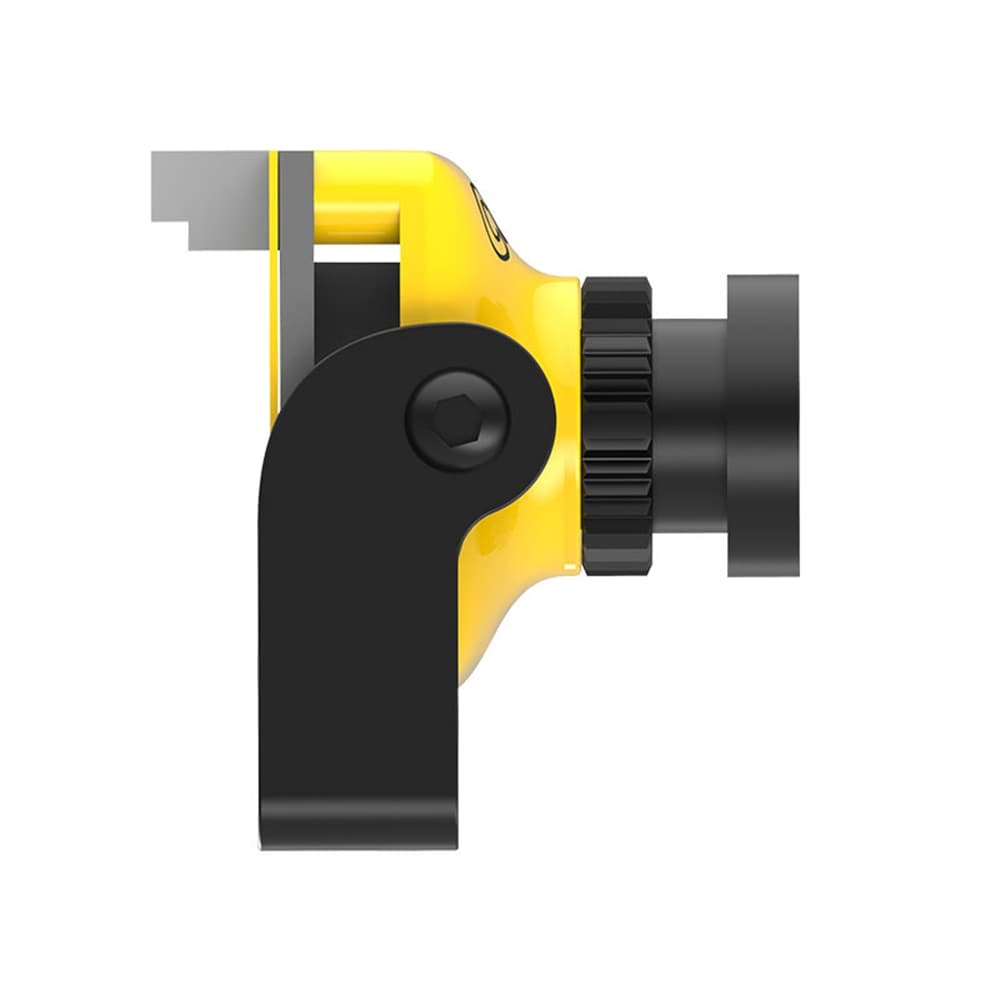

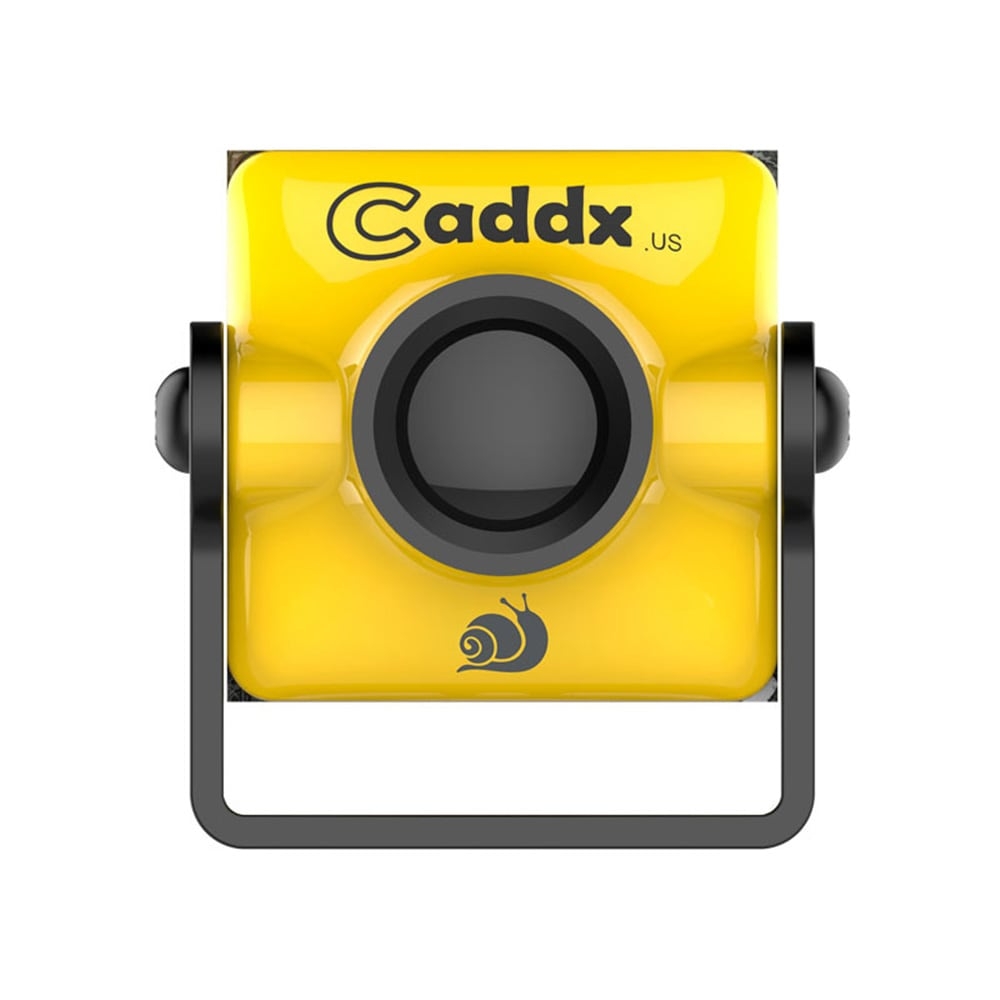

Model: Turbo Micro F1
Image Sensor: 1/3 CMOS Sensor
Horizontal Resolution: 1200 TVL
Aspect Ratio: 16:9
TV System: NTSC/PAL switchable
Synchronization: Internal
Electronic Shutter: PAL: 1/50-100,000; NTSC: 1/60-100,000
S/N Ratio: more than 52dB (AGC OFF)
Video Output: CVBS
Lens: 2.1mm
Min. Illumination: 0.005Lux at F1.2
Auto Gain Control: YES
BLC: YES
Camera: YES
WDR: D-WDR
DNR: 2 DNR
Day/Night: Auto/Color/B&W
Dimensions: 19mmx19mmx16mm
Wide Power Input: DC 4.5-40V
Work Temperature: -20c--+60c
Work Humidity: 20 - 80 percent
Color: Yellow/Pink
Weight: 5.5g (N.W.)
Model: Turbo Micro F1
Image Sensor: 1/3 CMOS Sensor
Horizontal Resolution: 1200 TVL
Aspect Ratio: 16:9
TV System: NTSC/PAL switchable
Synchronization: Internal
Electronic Shutter: PAL: 1/50-100,000; NTSC: 1/60-100,000
S/N Ratio: more than 52dB (AGC OFF)
Video Output: CVBS
Lens: 2.1mm
Min. Illumination: 0.005Lux at F1.2
Auto Gain Control: YES
BLC: YES
Camera: YES
WDR: D-WDR
DNR: 2 DNR
Day/Night: Auto/Color/B&W
Dimensions: 19mmx19mmx16mm
Wide Power Input: DC 4.5-40V
Work Temperature: -20c--+60c
Work Humidity: 20 - 80 percent
Color: Yellow/Pink
Weight: 5.5g (N.W.)
Specification
General |
FPV Equipments: Camera
Functions: 3D |
|---|---|
FPV Goggles |
TV System: NTSC / PAL Switchable,NTSC / PAL Switchable |
Camera |
Sensor: CMOS |
Dimension and Weight |
Package weight: 0.0600 kg
Package size (L x W x H): 4.00 x 4.00 x 2.00 cm / 1.57 x 1.57 x 0.79 inches |
Package Contents |
Package Contents: 1 x Caddx Turbo Micro F1 FPV Camera , 1 x Aluminum bracket , 1 x FPV silicone cable (4-pin port one side, 3-pin port the other side), 1 x Internal hexagonal wrench , 1 x Warranty card, 1 x set Screws |
