Description:
TomBee 150 features high integration, compact body, and fast speed. It integrates the Detrum RXC6 receiver, flight control, power distribution board, OSD module and 5.8G video transmitter, greatly saving the space and reducing the weight. The 800TVL 3MP mini-camera provides you perfect FPV visual experience. The searchlight makes the night flight is available. At the same time, it supports the third-party receivers, fully meet user's needs.
Main Features:

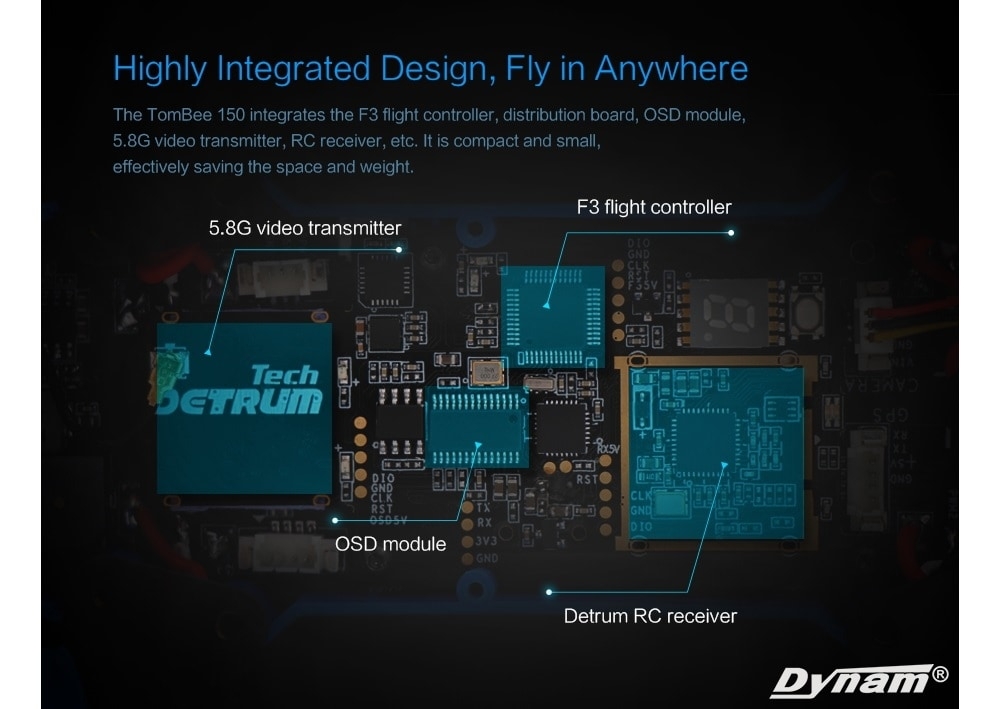

- Highly integrated design:
Use integrated PCB circuit board, effectively saving space and reducing weight.
- HD Camera:
800TVL 3MP mini camera, adjustable camera angle ( 20 - 40-degree ), allowing you see clearly and see more
- A full range of anti-collision design:
Ultra-high strength carbon fiber fuselage, high-strength plastic protective camera cover, enhancing the aircraft's toughness and impact resistance.
- Small size, strong power:
Portable small size, even can put into the pocket, but still has excellent flight performance.
Powerful Tomcat 1806 3100KV motor, 15A ESC, clover propellers and 4S 14.8V 850mAh lithium battery give it excellent ride-through performance.
- Front searchlight:
The front light ensures that even in the light, you can fly it and take photos freely.
- With Built-in Detrum receiver and supports PPM / SBUS / Spektrum receiver:
Built-in Detrum RXC6 receiver is compatible with GAVIN series of remote controls.
With PPM, and SBUS / Spektrum receiver interfaces, you can connect other common remote control.
- 5.8G transmission transmitter:
5.8G frequency and 48-channel for good image transmission and anti-interface performance.
- Lost alarm function:
When the UAV is out of control, it will alarm automatically, helping the player to retrieve it as soon as possible.
- A variety of flight modes, one key switch:
Adopts the mainstream F3 flight control system. Support self-steady mode, semi-stable mode, and manual mode.
Specifications:
Motor: Tomcat 1806 3100KV
F3 Flight controller:
CPU: STM32F303CCT6
IMU: MPU6050
OSD: built-in
Firmware: CleanFlight - SPRACINGF3
Cells: 3 - 6S
ESC:
Continuous current: 15A
Peak current: 30A
Support battery: 4S 850mAh LiPo
Support: Oneshot
Video Transmitter:
Frequency: 5.8G
Channel: 48
Power: 200mW
Transmission distance: 800m
TomBee 150 features high integration, compact body, and fast speed. It integrates the Detrum RXC6 receiver, flight control, power distribution board, OSD module and 5.8G video transmitter, greatly saving the space and reducing the weight. The 800TVL 3MP mini-camera provides you perfect FPV visual experience. The searchlight makes the night flight is available. At the same time, it supports the third-party receivers, fully meet user's needs.
Main Features:
- Highly integrated design:
Use integrated PCB circuit board, effectively saving space and reducing weight.
- HD Camera:
800TVL 3MP mini camera, adjustable camera angle ( 20 - 40-degree ), allowing you see clearly and see more
- A full range of anti-collision design:
Ultra-high strength carbon fiber fuselage, high-strength plastic protective camera cover, enhancing the aircraft's toughness and impact resistance.
- Small size, strong power:
Portable small size, even can put into the pocket, but still has excellent flight performance.
Powerful Tomcat 1806 3100KV motor, 15A ESC, clover propellers and 4S 14.8V 850mAh lithium battery give it excellent ride-through performance.
- Front searchlight:
The front light ensures that even in the light, you can fly it and take photos freely.
- With Built-in Detrum receiver and supports PPM / SBUS / Spektrum receiver:
Built-in Detrum RXC6 receiver is compatible with GAVIN series of remote controls.
With PPM, and SBUS / Spektrum receiver interfaces, you can connect other common remote control.
- 5.8G transmission transmitter:
5.8G frequency and 48-channel for good image transmission and anti-interface performance.
- Lost alarm function:
When the UAV is out of control, it will alarm automatically, helping the player to retrieve it as soon as possible.
- A variety of flight modes, one key switch:
Adopts the mainstream F3 flight control system. Support self-steady mode, semi-stable mode, and manual mode.
Specifications:
Motor: Tomcat 1806 3100KV
F3 Flight controller:
CPU: STM32F303CCT6
IMU: MPU6050
OSD: built-in
Firmware: CleanFlight - SPRACINGF3
Cells: 3 - 6S
ESC:
Continuous current: 15A
Peak current: 30A
Support battery: 4S 850mAh LiPo
Support: Oneshot
Video Transmitter:
Frequency: 5.8G
Channel: 48
Power: 200mW
Transmission distance: 800m
Specification
General |
Brand: DETRUM
Type: Frame Kit Version: BNF |
|---|---|
Flight Controller |
Flight Controller Type: F3 |
Camera |
Camera Pixels: 2MP
Video Resolution: 800TVL Video Standards: NTSC,PAL Sensor: CMOS |
Dimension and Weight |
Product weight: 0.2100 kg
Package weight: 0.6000 kg Product size (L x W x H): 19.00 x 17.00 x 6.00 cm / 7.48 x 6.69 x 2.36 inches Package size (L x W x H): 20.50 x 18.00 x 8.00 cm / 8.07 x 7.09 x 3.15 inches |
Package Contents |
Package Contents: 1 x RC Drone |
