Description:
Assemble your UAV and get involved in thrilling flight! Carefully selected, the combination of all-necessary components will present in front of you as a fascinating quadcopter soon. Everything is prepared here, so you just need to enjoy yourself in the DIY at first!
You can get GEP-ZX6 225mm Carbon Fiber Frame with PDB, EMAX RS2205 Motors, 30A Mini Oneshot125 2-6S ESCs, SP Racing F3 DELUXE Flight Controller, HD 1000TVL 2.8mm Camera, 5.8G 600mW 40CH TS5828L Transmitter, Mushroom Antenna and 5045 Clover Paddles at the same time.
Main Features:

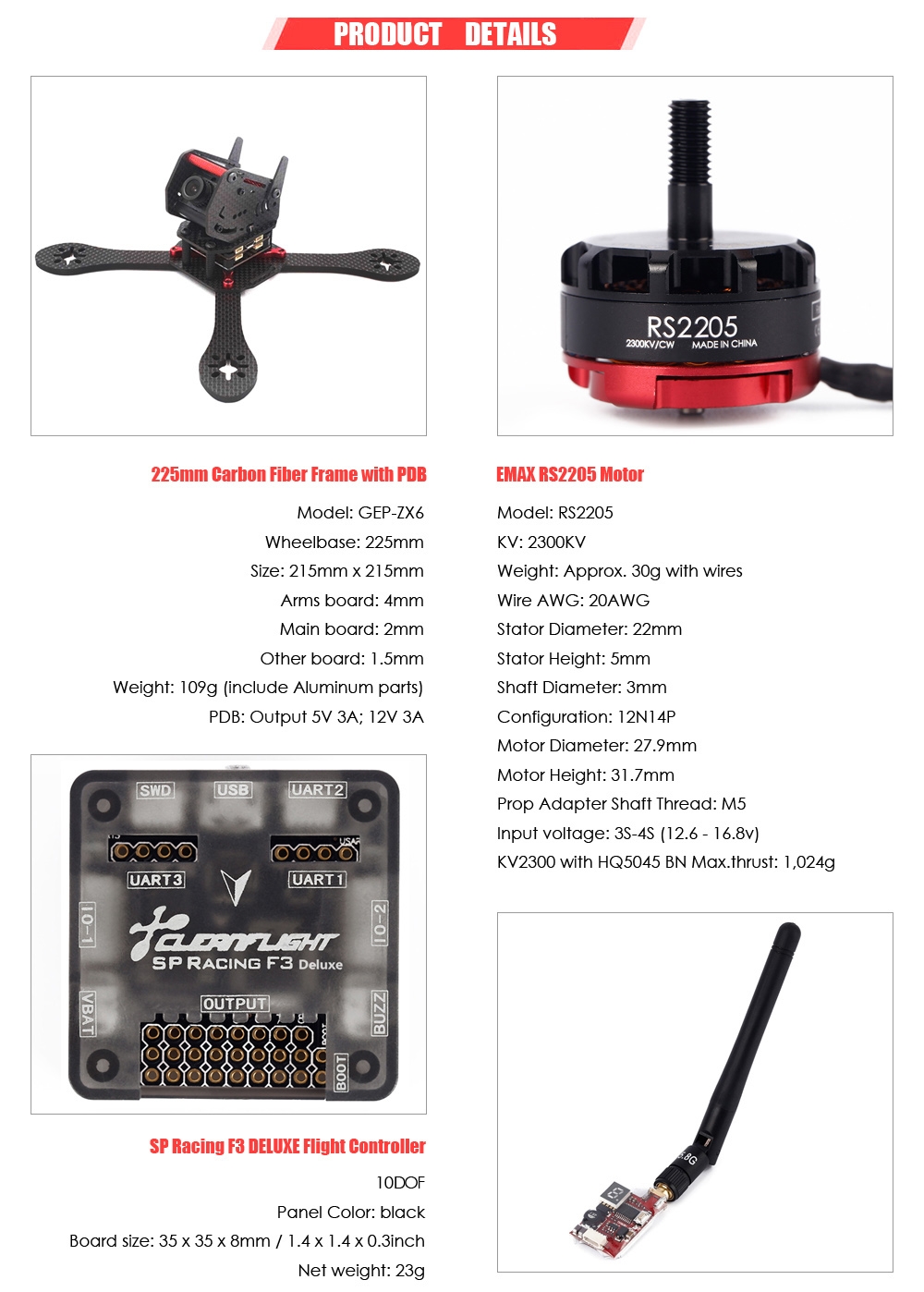

- With a weight of only 3.845 ounces, the frame ("+" configuration) is made of the most sought-after 3K carbon fiber which is light and sturdy. It is integrated with PDB, which supports 5V 3A and 12V 3A output current. 60-degree adjustable camera position provides you with better FPV. In addition, the widened bores secure motors better.
- The EMAX RS2205 brushless motor performs smoothly with highest-grade N52 magnets and long lasting bearings, thus providing an amazing thrust of more than 1,000g. Coordinating with the efficient cooling system, the magnets, which accelerate and stop at your command, rotate sustainably even at high HV.
- The developer-friendly SP Racing F3 DELUXE flight controller, offers cross-platform GUI (Windows / OSX / Linux), so that you can enjoy excellent 10DOF pilot experience. Its loop time is 2 times as fast as STM32F1 based boards. The on-board high-capacity black box stores sensor data so you can improve flight performance more easily next time. The flight controller includes compass and barometer sensors, compared with the ACRO one.

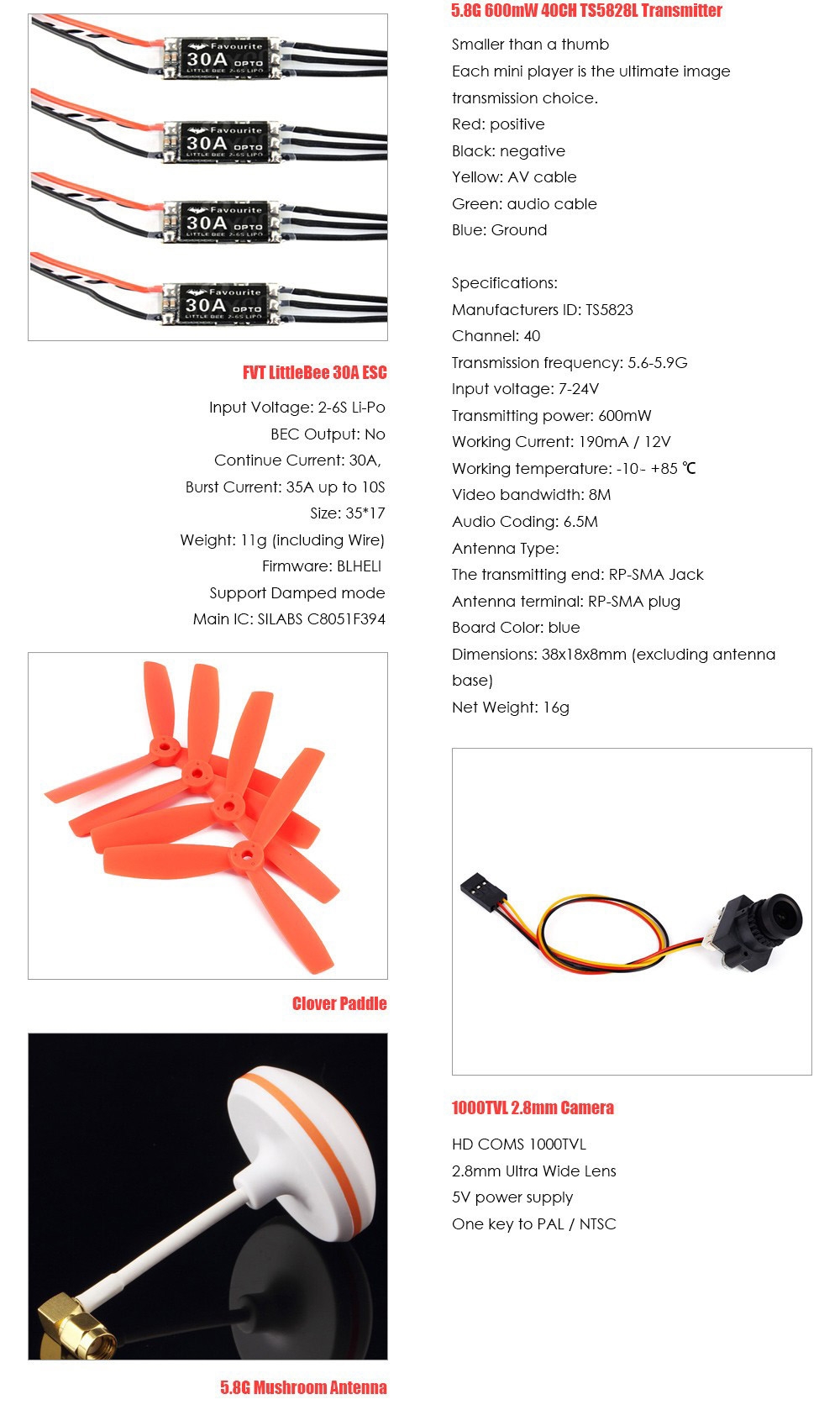

- The FVT LittleBee 30A ESC features excellent freewheeling and exceptional braking, thanks to Silabs processor and fast dedicated driver chips. The "Oneshot125" communication protocol between flight controller and ESC enhances the performance of motors, making them more responsive.
- HD 1000TVL camera is tiny (2.8mm) and NTSC / PAL switchable, giving you awesome first person view.
- With 5.8G transmission rate and 40 channels, all kinds of your command as well as the real-time image relay immediately.
For more information about our products, please refer to corresponding data in the pictures.
Assemble your UAV and get involved in thrilling flight! Carefully selected, the combination of all-necessary components will present in front of you as a fascinating quadcopter soon. Everything is prepared here, so you just need to enjoy yourself in the DIY at first!
You can get GEP-ZX6 225mm Carbon Fiber Frame with PDB, EMAX RS2205 Motors, 30A Mini Oneshot125 2-6S ESCs, SP Racing F3 DELUXE Flight Controller, HD 1000TVL 2.8mm Camera, 5.8G 600mW 40CH TS5828L Transmitter, Mushroom Antenna and 5045 Clover Paddles at the same time.
Main Features:
- With a weight of only 3.845 ounces, the frame ("+" configuration) is made of the most sought-after 3K carbon fiber which is light and sturdy. It is integrated with PDB, which supports 5V 3A and 12V 3A output current. 60-degree adjustable camera position provides you with better FPV. In addition, the widened bores secure motors better.
- The EMAX RS2205 brushless motor performs smoothly with highest-grade N52 magnets and long lasting bearings, thus providing an amazing thrust of more than 1,000g. Coordinating with the efficient cooling system, the magnets, which accelerate and stop at your command, rotate sustainably even at high HV.
- The developer-friendly SP Racing F3 DELUXE flight controller, offers cross-platform GUI (Windows / OSX / Linux), so that you can enjoy excellent 10DOF pilot experience. Its loop time is 2 times as fast as STM32F1 based boards. The on-board high-capacity black box stores sensor data so you can improve flight performance more easily next time. The flight controller includes compass and barometer sensors, compared with the ACRO one.
- The FVT LittleBee 30A ESC features excellent freewheeling and exceptional braking, thanks to Silabs processor and fast dedicated driver chips. The "Oneshot125" communication protocol between flight controller and ESC enhances the performance of motors, making them more responsive.
- HD 1000TVL camera is tiny (2.8mm) and NTSC / PAL switchable, giving you awesome first person view.
- With 5.8G transmission rate and 40 channels, all kinds of your command as well as the real-time image relay immediately.
For more information about our products, please refer to corresponding data in the pictures.
Specification
General |
Type: Antenna,Body Frame,Camera,ESC,Frame Kit,Motor,Propeller,Transmitter |
|---|---|
Motor |
KV: 2300KV
Stator Length: 5mm Configuration: 12N14P Stator Diameter: 22mm Shaft Diameter: 3mm Motor Dimensions: 27.9 x 31.7mm No. of Cells: 3S-4S |
Camera |
Camera Pixels: 1000TVL
Video Standards: NTSC,PAL |
Dimension and Weight |
Package weight: 0.900 kg
Package size (L x W x H): 28.00 x 18.00 x 8.00 cm / 11.02 x 7.09 x 3.15 inches |
Package Contents |
Package Contents: 1 x Carbon Fiber Frame, 1 x SP Racing F3 DELUXE Flight Controller, 4 x EMAX RS2205 Motor, 4 x ESC, 1 x Camera, 1 x Mushroom Antenna, 1 x Transmitter, 4 x Clover Paddle |
