Dys ELF - 83mm Micro Brushless FPV Racing Drone - BNF

Dys ELF - 83mm Micro Brushless FPV Racing Drone - BNF
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:

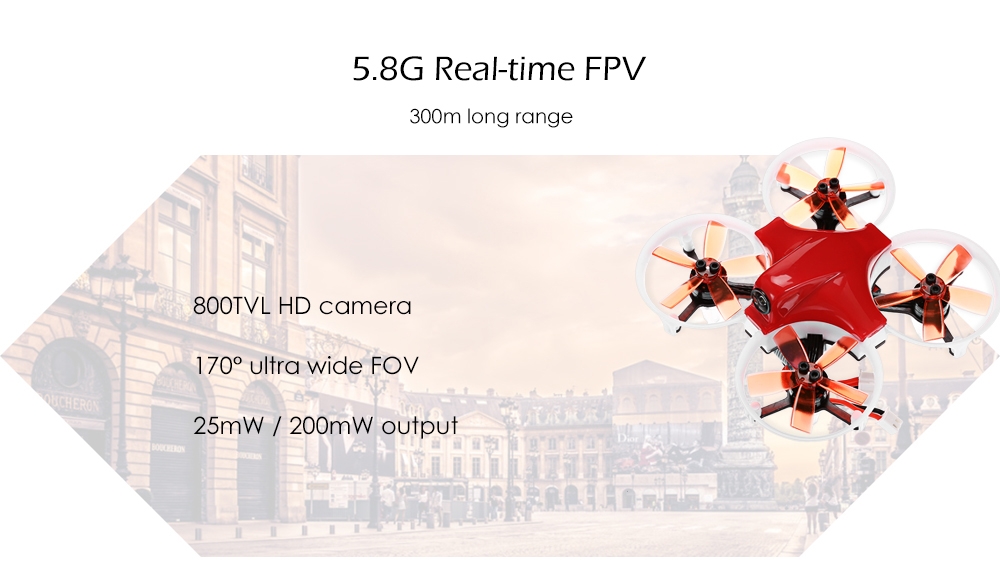

- 800TVL HD 170-degree FOV camera features excellent performance in backlight, ideal for FPV racing
- 5.8G 40CH 25mW / 200mW VTX, 3dBi whip antenna, 300m long image transmission distance

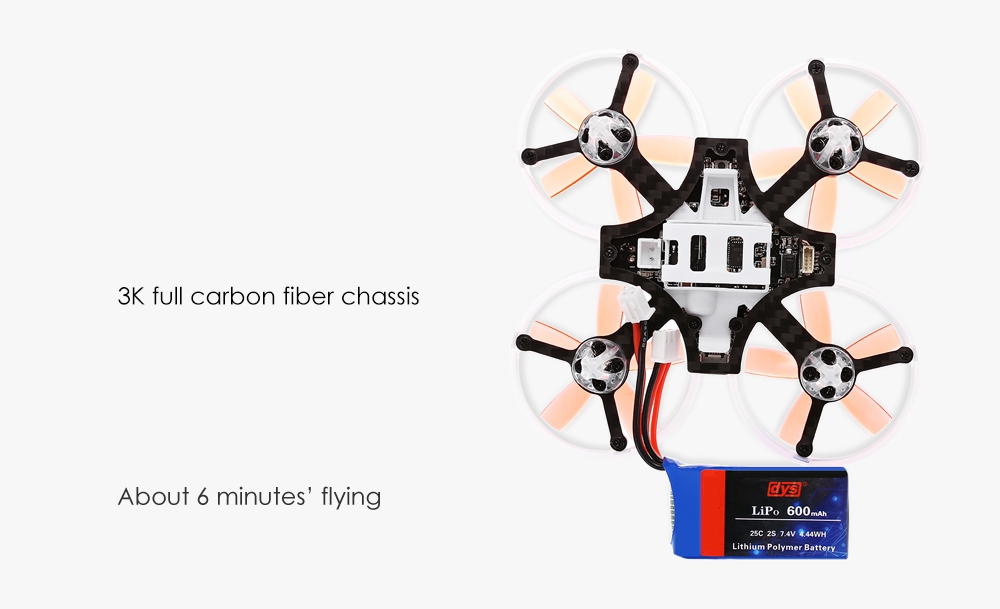

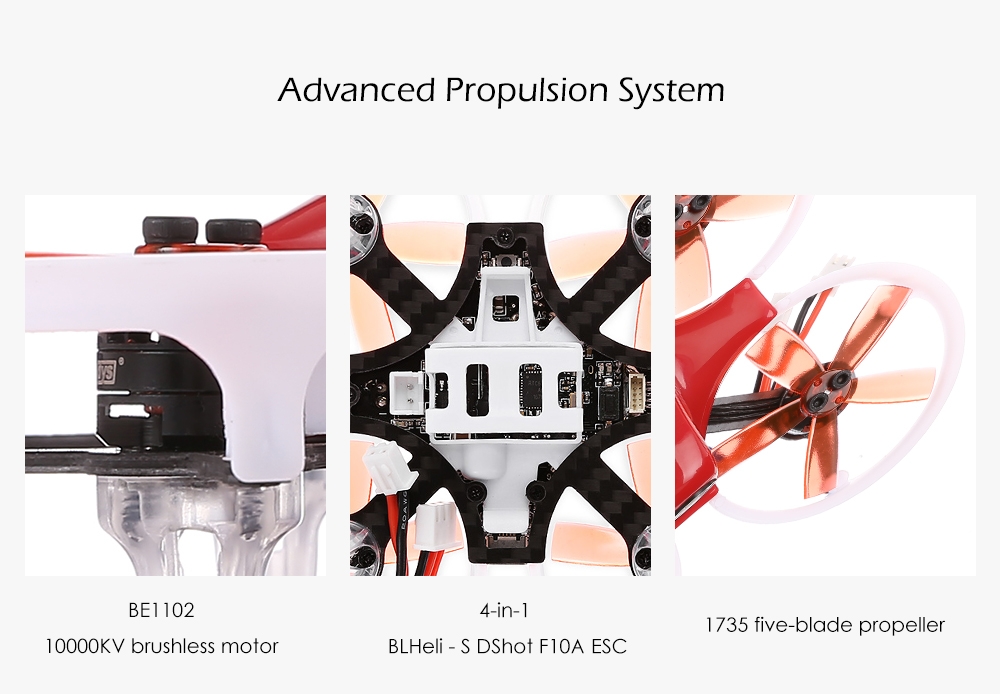

- Swift and stable flight, i.e. BE1102 10000KV brushless motor + 1735 five-blade propeller
- Highly integrated PCB consists of F3 flight controller, 4-in-1 BLHeli - S F10A DShot ESC, and buzzer
- D8R receiver protocol, compatible with FrSky transmitters ( including X9D etc. )

Specifications:

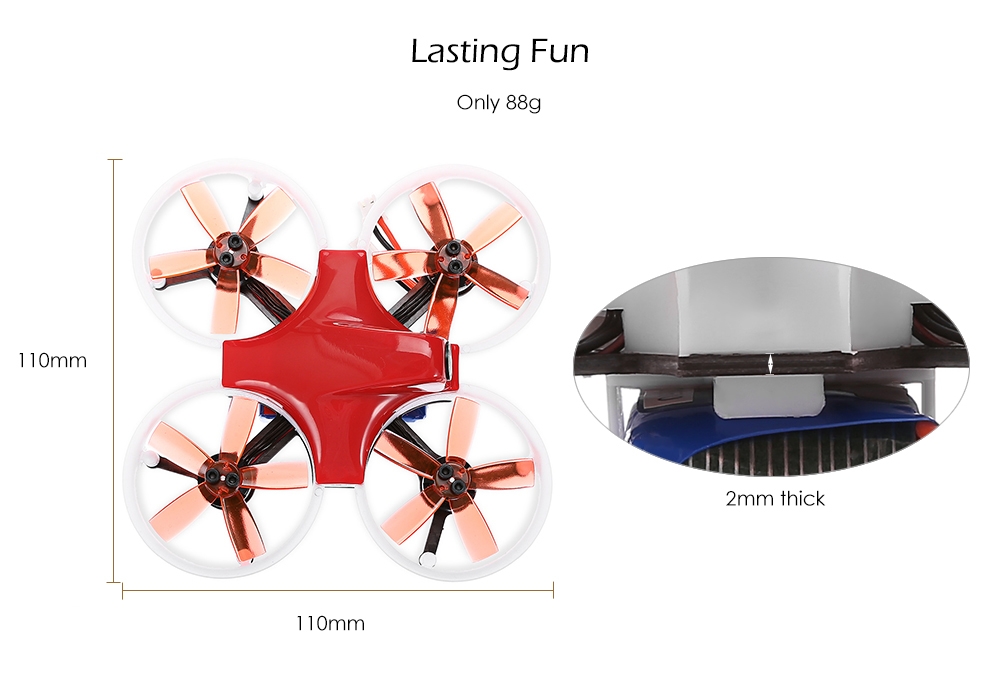

Weight: 88g
Wheelbase: 83mm
Brushless motor: BE1102 10000KV
Brushless ESC: 4-in-1 BLHeli - S F10A
Flight controller: F3
Battery: 7.4V 600mAh 2S LiPo
Flight time: about 6 minutes
Camera: 800TVL HD
Field of view: 170 degree
TV system: NTSC / PAL ( auto )
Video transmitter: 5.8G 40CH 25mW / 200mW
Antenna: 3dBi
Propeller: 1735 5-blade

Click here to download the user manual.

Specification

General

Brand: DYS
Type: Frame Kit
Version: BNF
Size: Micro

Motor

Model: BE1102
Motor Type: Brushless Motor
KV: 10000

Flight Controller

Flight Controller Type: F3

Remote Controller Specifications

FPV Distance: 300m
Model Power: Built-in rechargeable battery

Camera

Video Resolution: 800TVL ( horizontal resolution )

Electronic Speed Controller

Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42
Continuous Current: 10A

Battery

Battery (mAh): 600mAh
Battery Coulomb: 25C
Flying Time: 5~6mins
Charging Time (h): about 1 hour
Battery Size: 4.4 x 2.3 x 1.4cm ( not including connectors )
Plug Type: Other Plug

Charger Informations

Charger Power Supply: AC
Output Voltage (V) : 13.5V ( 1.8A )
Input Voltage (V) : 100 - 240V AC ( 0.5A ) 50 / 60Hz

Dimension and Weight

Product weight: 0.0880 kg
Package weight: 0.3800 kg
Product size (L x W x H): 11.00 x 11.00 x 5.00 cm / 4.33 x 4.33 x 1.97 inches
Package size (L x W x H): 17.00 x 10.00 x 22.00 cm / 6.69 x 3.94 x 8.66 inches

Package Contents

Package Contents: 1 x Drone ( Battery Included ), 4 x Spare Propeller, 1 x Balance Charger, 1 x Power Adapter, 1 x Chinese-English Manual
