DYS F4 Flight Controller

DYS F4 Flight Controller
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:

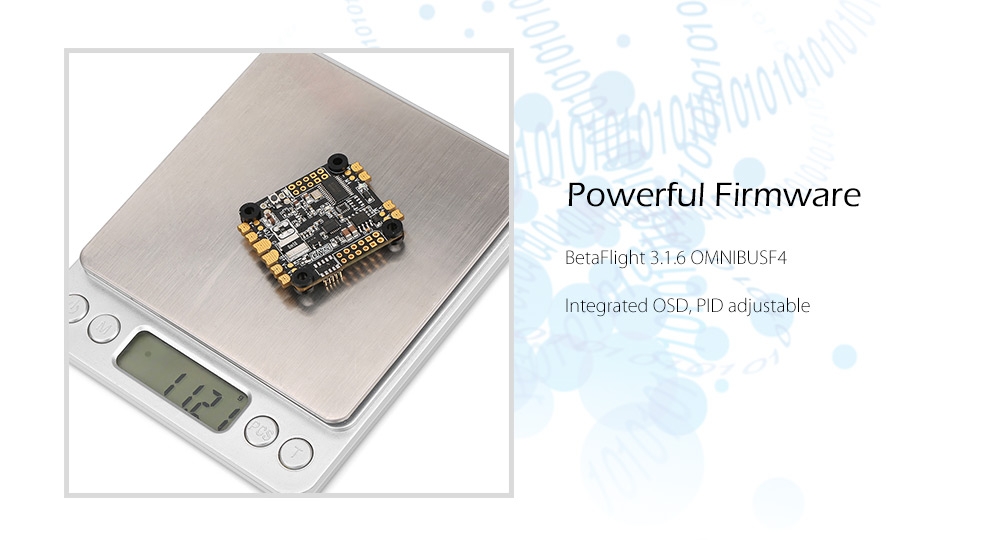

- BetaFlight 3.1.6 OMNIBUSF4 firmware
- STM32F405 GRT6 processor, up to 6K refresh rate
- 3oz copper PCB ensures current stability and fast cooling
- Compatible with all ESCs, as well as DYS 4-in-1 ESC without soldering
- Integrated OSD - no need to flash firmware additionally or debug OSD via BetaFlight ground station
- Integrated current meter monitors the real-time power consumption
- You can adjust the PID ( proportion-integration differentiation ) via transmitter by using OSD
- You can adjust the power, frequency band / channel of the TBS VTX or the upcoming DYS VTX via open ports
- The 4 damping balls reduce the vibration and improve the stability of the drone

Specifications:
Processor: STM32F405 GRT6
IMU: MPU6000
Size: 42 x 36 x 10mm
Hole distance: 30.5 x 30.5mm
Net weight: 11.2g ( excluding wire )
Power supply: 2 - 6S LiPo
Max. current capacity: 150A
BEC: 5V 3A

Click here to download the wiring diagram.

Note:
The scale in the picture is not included.

Specification

General

Brand: DYS
Type: Flight Controller

Flight Controller

Flight Controller Type: F4

Dimension and Weight

Product weight: 0.0112 kg
Package weight: 0.0600 kg
Product size (L x W x H): 4.20 x 3.60 x 1.00 cm / 1.65 x 1.42 x 0.39 inches
Package size (L x W x H): 12.00 x 8.00 x 2.00 cm / 4.72 x 3.15 x 0.79 inches

Package Contents

Package Contents: 1 x F4 Flight Controller, 1 x Buzzer, 1 x Power Cable, 1 x Pack of Fittings
