Main Features:
- BLHeli-S ESC with hardware generated PWM synchronous to MCU yields ultra-quiet motor performance
- Utilizes high-performance EFM8BB21 50MHz MCU
- BLHeli-S does Damped Light only
- Firmware upgradable via signal wire ( works with USB linker for XM series )
- Supports motors with super high KV ( EFM8BusyBee 50MHz can handle up to 500k eRPM )
- Supports DShot600 and DShot300
- High-current burst rating
- High-resolution throttle steps
About DShot
The numbers indicate how much data is sent per second.
DShot600 - 600,000 bits/s
DShot300 - 300,000 bits/s
DShot150 - 150,000 bits/s
Advantages of DShot
Compared to Oneshot and Multishot, DShot is better because:
- ESC calibration is no longer required ( no oscillator drift )
- More accurate ESC signals, and more robust against electrical noise
- Higher resolution of 2048 steps, compared to others of 1000 steps
- Faster than Oneshot
- Safer, every signal has the cyclic redundancy check
Specifications:

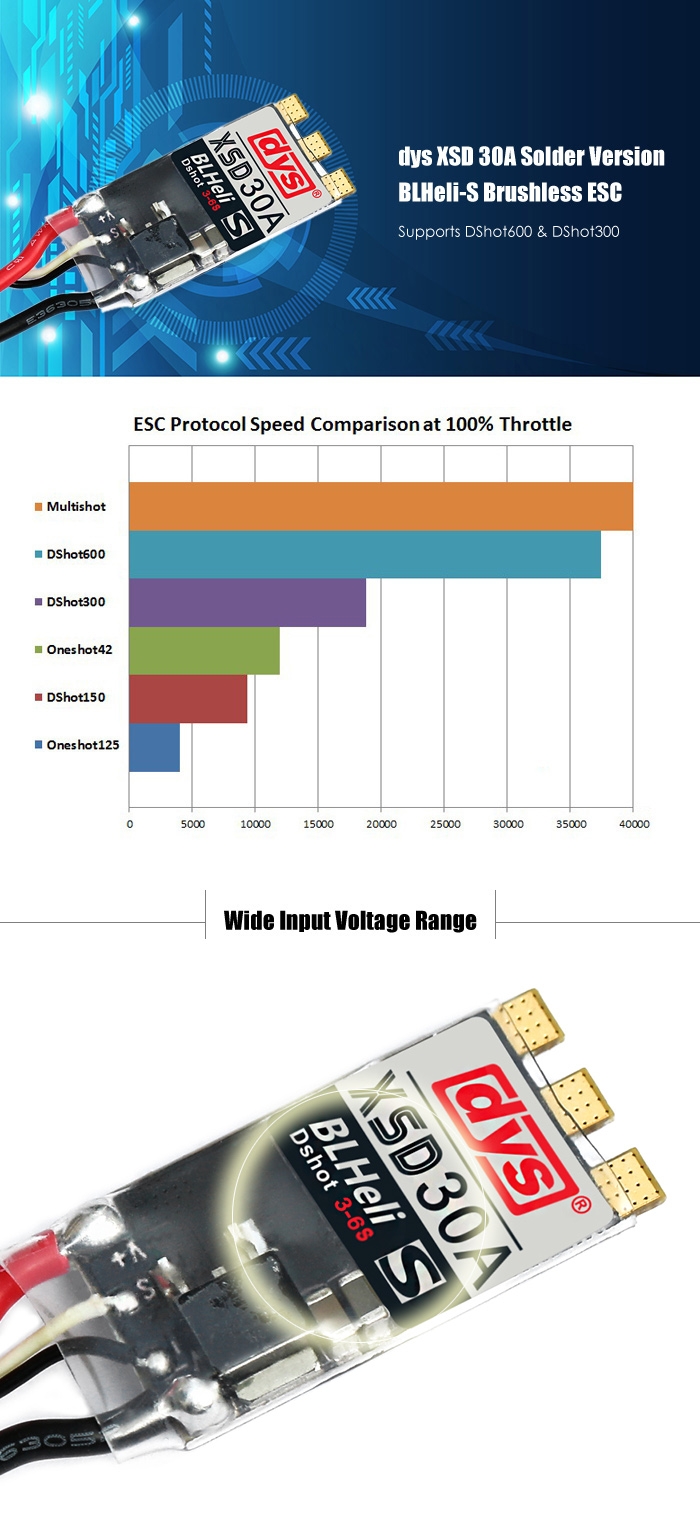

Item name: XSD 30A solder version
Input voltage: 3 - 6S Lipo
BEC: no
Size: 45 x 16.5 x 5.8mm
Features: BLheli-S firmware, Dshot600, Dshot300
Weight: 7.5g
MCU: Silabs EFM8BB21 50MHz
Click here to know more about DShot.
Specification
General |
Brand: DYS
Type: ESC |
|---|---|
Electronic Speed Controller |
Firmware: BLHeli-S |
Dimension and Weight |
Package weight: 0.016 kg
Product size (L x W x H): 4.50 x 1.65 x 0.58 cm / 1.77 x 0.65 x 0.23 inches Package size (L x W x H): 12.00 x 17.00 x 1.00 cm / 4.72 x 6.69 x 0.39 inches |
Package Contents |
Package Contents: 1 x ESC |
