Main Features:
- Genuine Japanese NMB bearings, N52 neodymium magnets
- Excellent heat dissipation, at least 30 percent reduction in motor temperature
- Pure copper windings, low internal resistance, high efficiency
- BLHeli ESC with synchronous rectification hardware design
- Utilizes high-performance MCU F396; supports Oneshot125, Multishot
Specifications:
Motor weight: approx. 30g / piece with wires
ESC weight: 4.78g / piece
Note:
The coin in the picture is not included.
Specification
General |
Brand: EMAX
Type: ESC,Motor Set |
|---|---|
Motor |

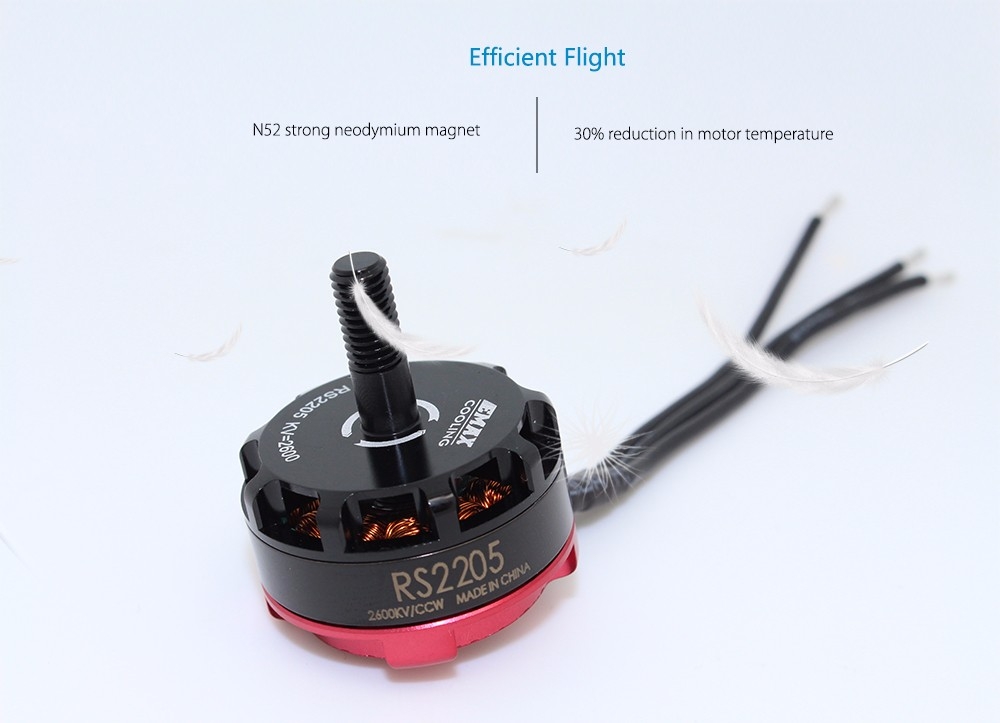

Model: RS2205
Motor Type: Brushless Motor KV: 2600 Stator Length: 5mm Configuration: 12N 14P Stator Diameter: 22mm Shaft Diameter: 3mm Motor Dimensions: 27.9 x 31.7mm ( diameter x height ) No. of Cells: 3 - 4S LiPo CW / CCW: CCW,CW Maximum Thrust: 763g |
Electronic Speed Controller |
Firmware: BLHeli
Functions: Multishot,Oneshot125 Continuous Current: 30A Burst Current: 40A Input Voltage: 2 - 4S |
Dimension and Weight |
Product weight: 0.2000 kg
Package weight: 0.2350 kg Package size (L x W x H): 15.00 x 12.00 x 4.50 cm / 5.91 x 4.72 x 1.77 inches |
Package Contents |
Package Contents: 4 x Motor, 4 x ESC, 1 x L-wrench, 3 x Pack of Screws, 4 x Nut |
