Highlights
720P HDMI

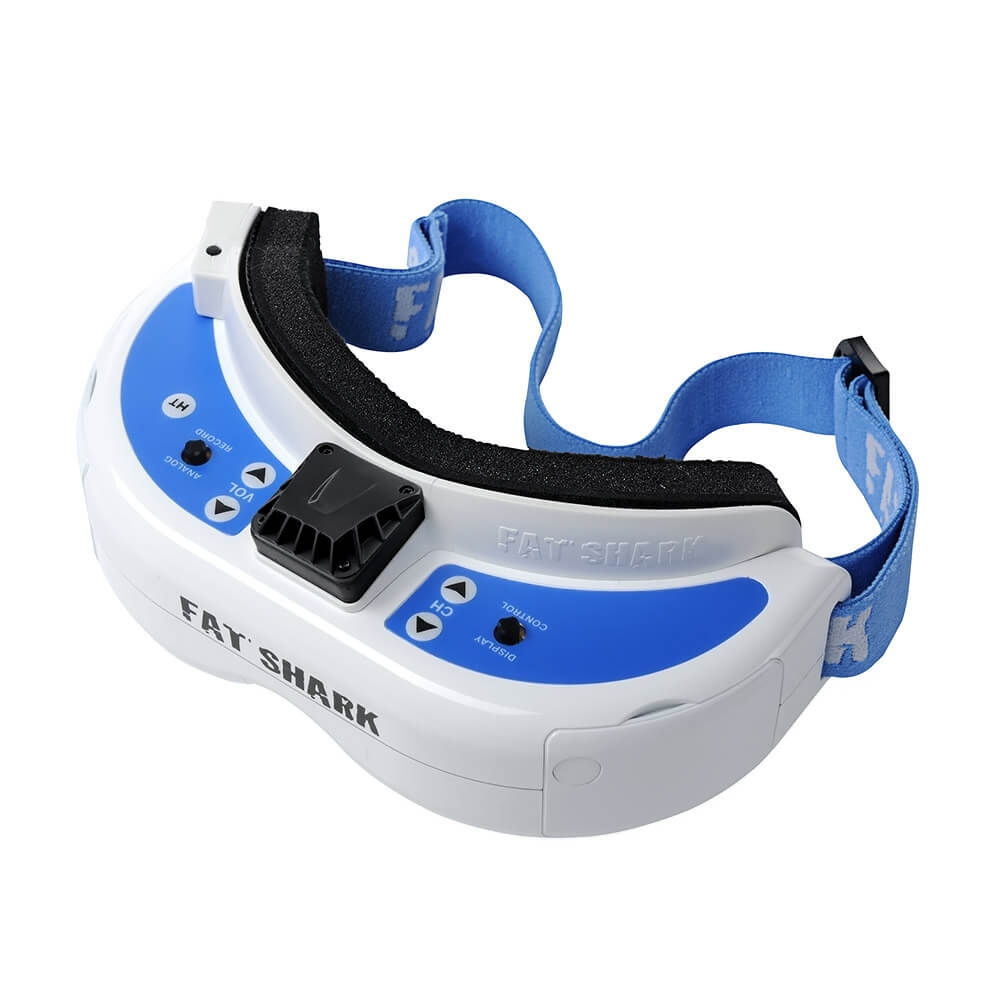

The Dominator V3 focuses on HDMI connectivity with 720p support through a robust mini HDMI port and 16:9 format WVGA image. DVR can swap between NTSC and PAL format as well as power backup to write files should the power be disconnected while recording. The Dominator V3 has modular bays to support 1G3, 2G4 and 5G8 band receivers and ability to add the Trinity head tracker.
Modular Design
The Dominator V3 feature a modular design, meaning that additional modules and accessories can be added for expandable functionality. In order to receive the video downlink from your wireless video transmitter, a receiver module is required. Receiver modules are available in 1.3GHz, 2.4GHz, or 5.8GHz options. Please note that Fat Shark only guarantees compatibility with NexwaveRF modules from Fat Shark for ImmersionRC. To install the receiver module, simply remove the door panel on the side of the headset, insert the module, and snap the door panel back in place.
3-Axis Trinity Head Tracker
For the most immersive experience, the optional 3-Axis Trinity Head Tracker module can be inserted into a slot on the opposite side of the headset, accessed through a second removable door panel. The head tracker lets you control pan, tilt, and roll of your aircraft-mounted FPV camera (sold separately) using the motion of the headset.

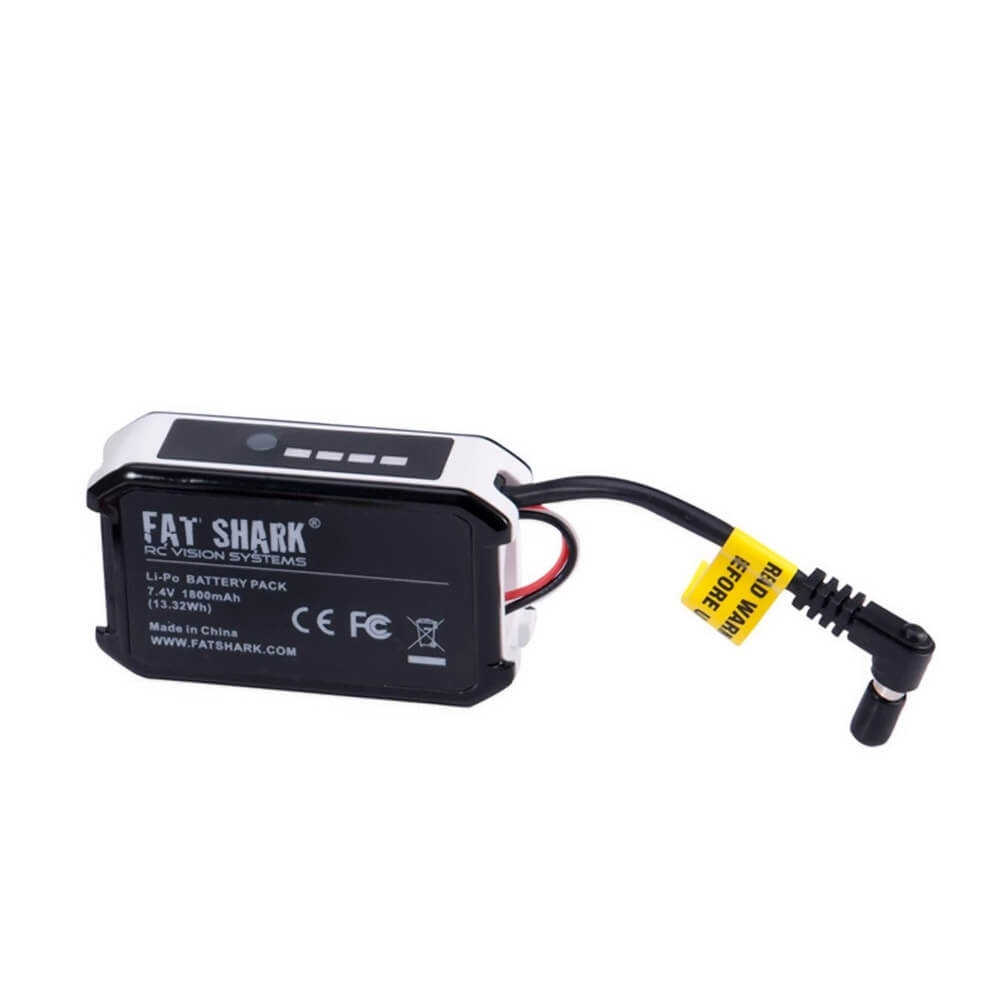

1800mAh Battery
The Dominator is fitted with the fan face-plate which provides superior comfort and prevents lens fogging. Power is provided to the headset using the new 1800mAh battery which securely fits in a head strap pocket on the headset. The battery pack includes a 3 pole balance lead for charging off standard RC type chargers. Also included with the headset is a DC power cable, AV cable, and carrying case.
Specification
| General | |
|---|---|
| Brand | Fatshark |
| Model | Dominator V3 |
| Quantity | 1 Piece |
| Specification | |
| Optics | FOV (field of view): 30° diagonal (the same plastic optics as DOMV2) Interpupillary Distance (IPD): 59 to 69 mm (adjustable) Optional Diopter Lens Inserts: -2, -4, -6 dpt |
| Display | 800 x 480 WVGA LCD Polarized LED backlight NTCS/PAL auto selecting Side/Side 3D Input HDMI 16:9 Video 4:3 horizontally stretched (Current A/C chip only supports to 720p 50/60 Hz, could be upgraded to 1080p in the future) |
| Stereo | Channel Selection Volume Control Mode Selection (Wired/Wireless) Display Control DVR Control HT Control |
| Electrical | Power Supply: 7 - 13 V (2S/3S supply) Power Consumption: 390mA wireless/ 230mA direct mode (no RX) (@7.4V nominal) Driver Board: Using the same as HD’s, support Side/Side 3D RF Modules: Infinite channel support on multiple bands Head Tracker: Modular (sold separately) Analog DVR: MicroSD support to 32Gb Record Rate: 6Mbps (MJPG compression, 30 fps, AVI) File playback (native recording, no codec support) Upgradeable via SD card PAL/NTSC continuous scan auto detect/mode change Auto save if power removed DVR stay off when not switched on |
| Interface | 3.5mm AV in/out port Power in port 3.5mm 3p earphone port MiniDIN4 data port (head tracking) MicroSD insert slot RF module port MiniHDMI port Mechanical: Ergonomic molded headset w/ adjustable headband |
| Dimensions & Weight (Main Product) | |
| Dimension | Product:169.2 x 80 x 45.5 mm Package: 0.7kg, 22*14*9cm |
| Weight | 152 g |

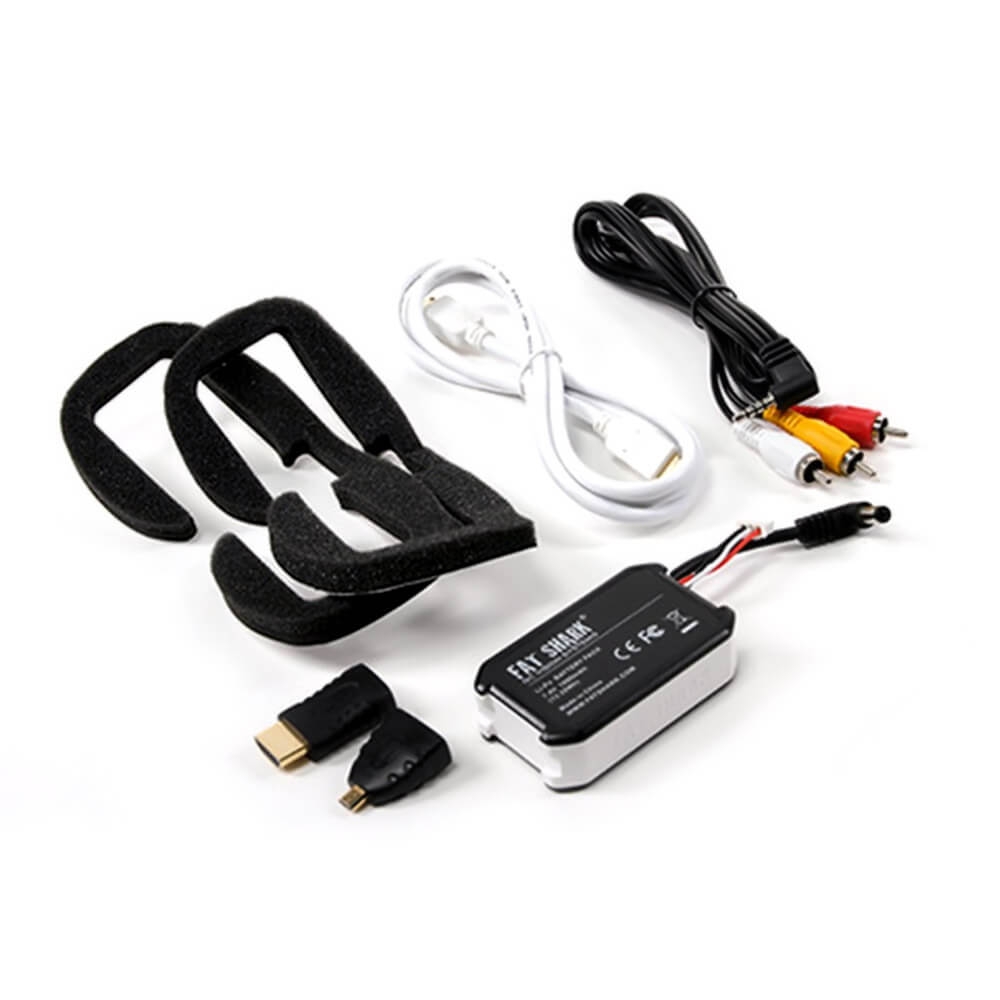

| Package Contents | |
| 1 x 3m AV cable | |
| 1 x HDMI cable with mini to micro and mini to standard adapters | |
| 1 x 1800 mAh battery with LED indicator | |
| 1 x Charge cable adapter | |
| 1 x Zipper carry case | |
| 1 x DC DIY cable | |
| 1 x Manual | |
