Main Features:
- With 1/3 inch Super HAD II CCD sensor, 2.5mm 120-degree FOV lens, ideal for FPV racing

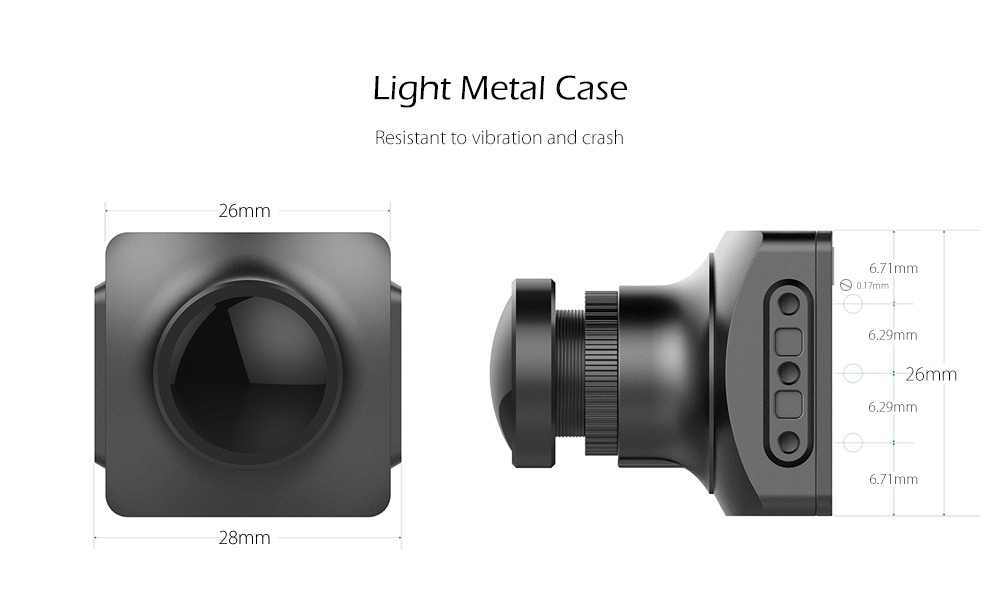

- Upgrade version with metal case, resistant to vibration and crash

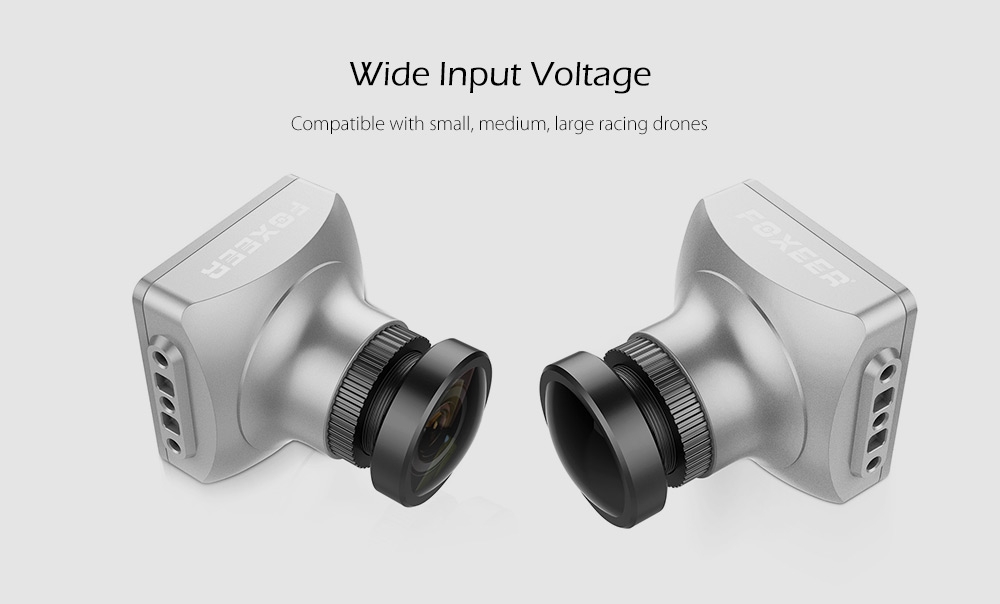

- Supports 5 - 35V wide input voltage range, it is suitable for drones in different sizes

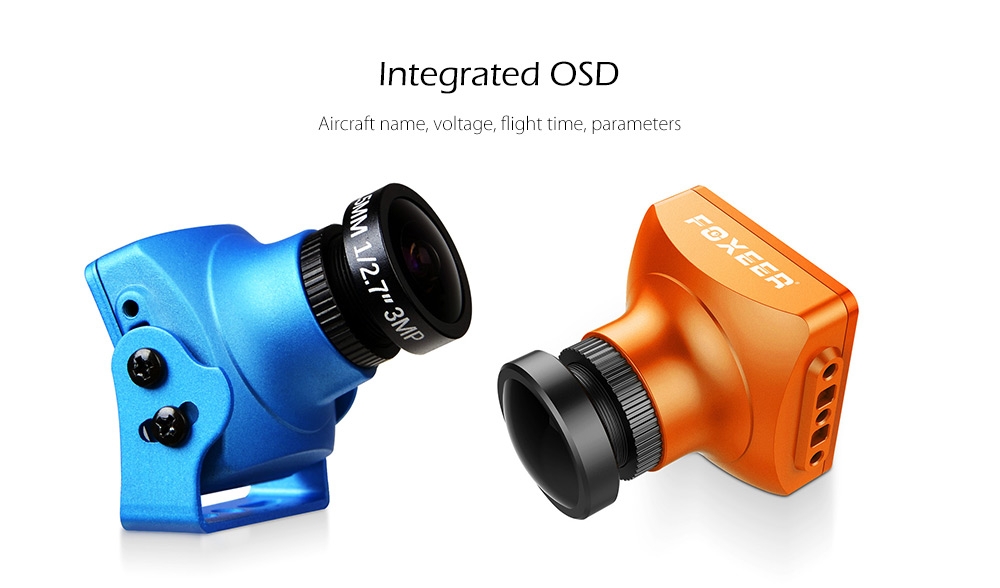

- OSD for showing voltage, time, aircraft name, and setting parameters
- Integrated microphone for recording sound during a flight
Specifications:
Image sensor: 1/3 inch Super HAD II CCD
Pixels: PAL: 976 ( H ) x 494 ( V ); NTSC: 768 ( H ) x 494 ( V )
TV system: PAL / NTSC
Lens: 2.5mm 120-degree FOV
Resolution: 650TVL ( black and white ), 600TVL ( color )
OSD: aircraft name, power, flying time
Menu ( OSD ) language: English
Synchronization: internal synchronization
Shutter speed: PAL: 1/50 - 1/100,000s; NTSC: 1/60 - 1/100,000s
Noise: less than 60 ( AGC OFF )
Video out: 75 ohm
Min. illumination: 1 lux
DNR: 2DNR
WDR: D-WDR
Auto gain control: Off / Low / Mid / High
Back light compensation ( BLC ): Off / Black Light Compensation / Strong Light Supression
Private shading: 1 - 8 private shading area
Motion detection ( MD ): On / Off ( multi-level sensitivity adjustable )
Auto white balance: Manual / Auto / Auto Track
Mirror: horizontal mirror optional
Negative: Positive / Negative
Day / night shift: Auto / Color / Black and White
White dot repair: support
Image adjustment: support
Color to Black and White: auto
Power requirement: 5 - 35V
Working humidity: 20 - 80 percent
Storage humidity: 20 - 95 percent
Storage temperature: -40 to 60 Deg.C
Specification
General |
FPV Equipments: FPV Mini Camera
Functions: Video |
|---|---|
Camera |
Sensor: CCD |
Dimension and Weight |
Product weight: 0.0160 kg
Package weight: 0.0900 kg Product size (L x W x H): 2.60 x 2.80 x 3.80 cm / 1.02 x 1.1 x 1.5 inches Package size (L x W x H): 9.20 x 6.00 x 5.20 cm / 3.62 x 2.36 x 2.05 inches |
Package Contents |
Package Contents: 1 x Camera, 1 x Camera Case, 1 x Metal Bracket, 1 x OSD Control Board, 1 x 7-pin Cable, 1 x English Manual |
