FrSky Redundancy Bus - 10 Switchboard Module

FrSky Redundancy Bus - 10 Switchboard Module
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Overload protection on each channel and receiver

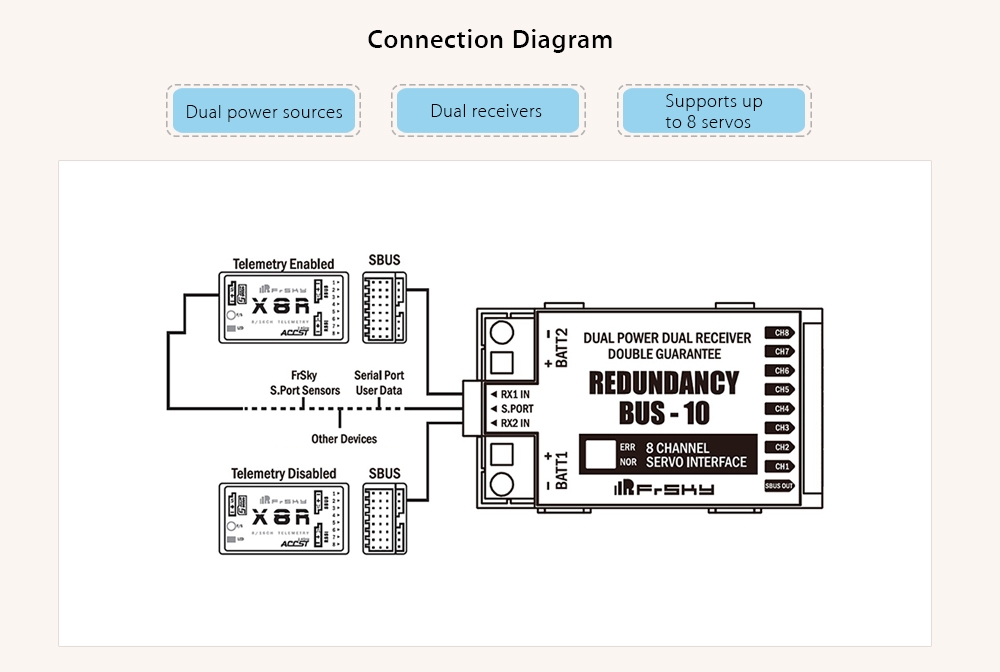

- It can be connected with up to 2 batteries and 2 receivers, i.e., double guarantee
- 50Hz mode of servo outputs ( 20ms period ) or equal to the input of SBUS cycle
- Integrated S.Port telemetry feedback ( including voltage, overload indication, etc. )
- Servo signal output period settable
- Supports high voltage servos
- Compact size and upgradable firmware

Specifications:
Recommended input voltage range: 4 - 8.4V
Supported number of servos: up to 8
Weight: 10g
Dimension: 63 x 27 x 10.5mm
Operating temperature range: -20 to 75 Deg.C

Caution:
Please do not connect the power source to CH1 - CH8, S.Port, SBUS OUT, RX1 IN or RX2 IN.
There is an overload protection function on every channel ( including CH1 - CH8, SBUS OUT, RX1 IN, RX2 IN ). If the overload current exists, only the affected servo output will be disconnected.

Click here to download the user manual.

Specification

General

Brand: FrSky
Type: Switch Board

Dimension and Weight

Product weight: 0.010 kg
Package weight: 0.055 kg
Product size (L x W x H): 6.30 x 2.70 x 1.05 cm / 2.48 x 1.06 x 0.41 inches
Package size (L x W x H): 16.50 x 8.70 x 2.40 cm / 6.5 x 3.43 x 0.94 inches

Package Contents

Package Contents: 1 x Switchboard Module
