Main Features:
- Based on F3 flight controller, FuriBee F3 flight controller features some improvements
- Its high-performance STM32F303CCT6 32-bit processor with 256KB flash brings you better flight experience
- The FLYSKY receiver is characterized by 200m long receive distance and stable signals
- Caters different groups by supporting 1S 4.2V input, onboard 5V and 3.3V output
- It can be connected to video transmitters and other receivers
- Excellent electric circuits. There is always 1A output current at 5V, which ensures the high performance of both the flight controller and its peripherals
- Supports signal input of SBUS, DSM satellite, PPM receivers, offering you more options
- Micro USB connector for programming
- Suitable for mini RC quadcopters like Blade Inductrix, E010, JJRC H36, FuriBee F36 and so on
Specifications:
- STM32F303CCT6 32-bit processor with 256KB flash
- MPU6050 gyro / accelerometer
- High quality, gold plated PCB
- Integrated FLYSKY 8CH receiver, serial port output
- With the built-in DC-DC boost circuit, it can be powered by other devices via IIC or UART port
- Motor drive frequency: 2K ( it can be set by users, 32K at maximum )
- Parameters can be configured in CleanFlight
- Dimension: 27.5 x 27.5mm
- Weight: 2.7g
Note:

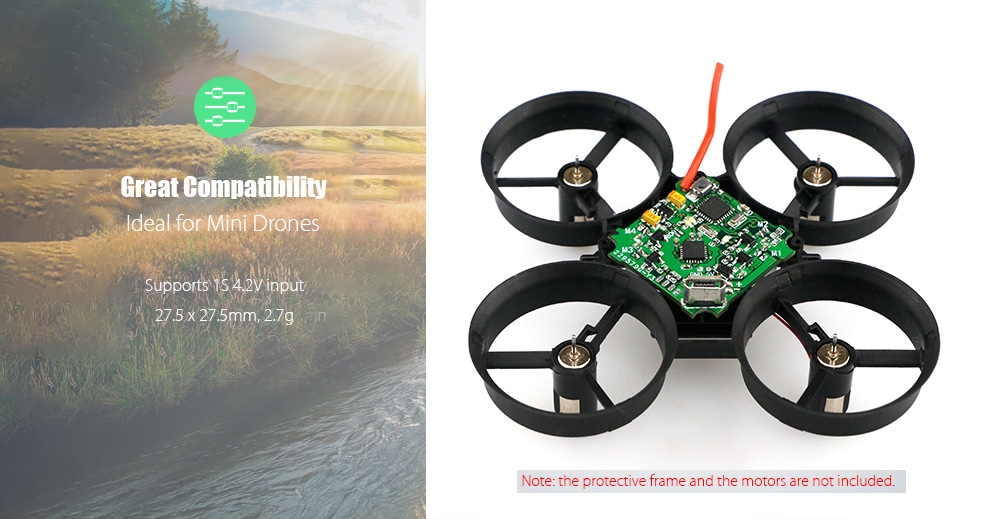

The protective frame and the motors in the picture are not included.
This FLYSKY receiver version does not support data return.
Specification
General |
Brand: FuriBee
Type: Flight Controller |
|---|---|
Flight Controller |
Flight Controller Type: F3 |
Dimension and Weight |
Package weight: 0.0200 kg
Product size (L x W x H): 2.75 x 2.75 x 0.10 cm / 1.08 x 1.08 x 0.04 inches Package size (L x W x H): 4.00 x 4.00 x 1.00 cm / 1.57 x 1.57 x 0.39 inches |
Package Contents |
Package Contents: 1 x F3 Flight Controller, 1 x Power Cable, 4 x Shock Absorber, 4 x Screw |
