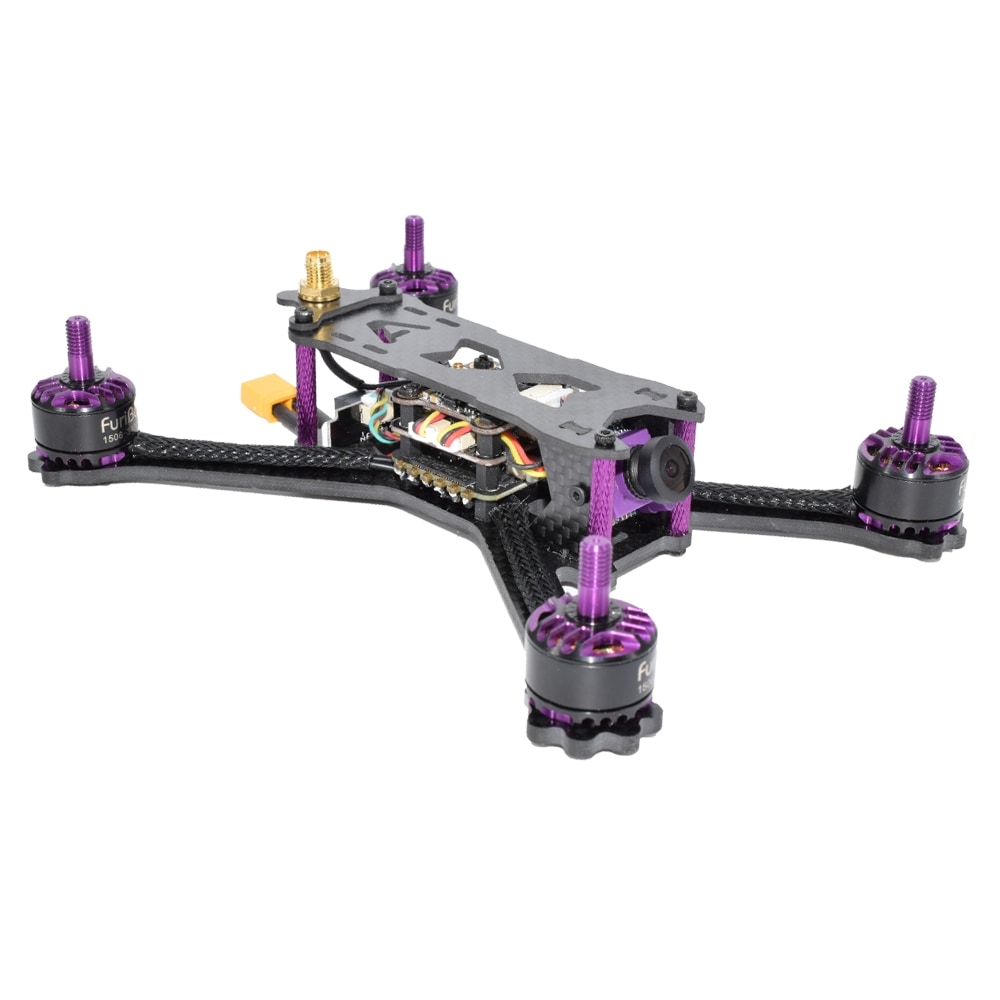

FuriBee Geniuser 160mm FPV Racing Drone with F4 FC 3-4S BLHeli_S 28A ESC

Brief Introduction:
Brand new X-type frame, 160mm wheelbase, OMNIBUS F4 flight controller, built-in OSD, 4-in-1 BLHELI_S 28A electric speed controller, 1506 3400KV brushless motor, 2.1mm 800TVL CCD camera.
It's a professional and powerful FPV racing drone with so many great features waiting for you to explore. Get it home, enjoy the unparalleled racing experience.

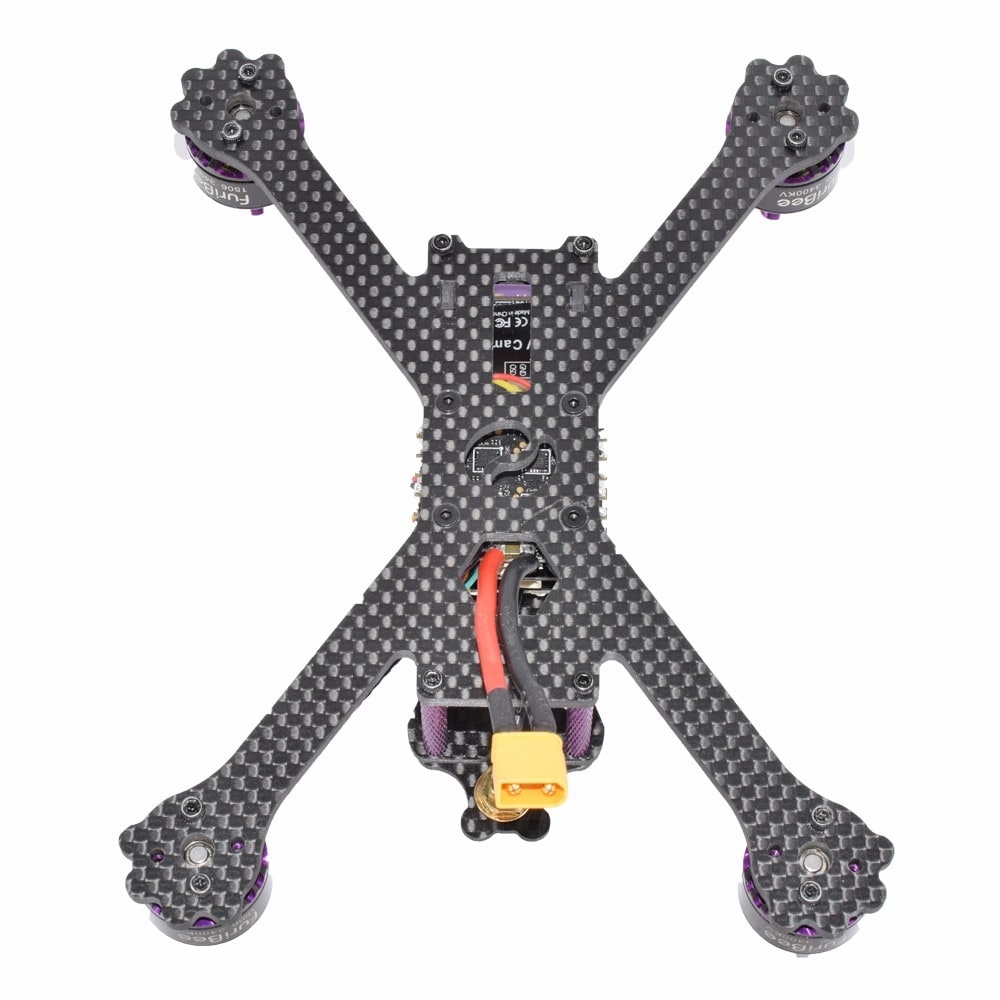

Frame:
- Type: X-type
- Wheelbase: 160mm

F4 6DOF Flight Controller with OSD:
- CPU: STM32F405RGT6
- Motion processing unit: MPU6000
- Receiver port: PPM, SBUS, DSM2 / DSMX, IBUS
- LED_Strip port: yes
- LED buzzer module: yes
- LC filter
- Built-in 5V 3A BEC
- Input voltage: 2-4S
- Support DSHOT electric speed controller: yes
- Support the latest betaflight_3.2.0 firmware

 Electric Speed Controller:
- 4 IN 1 BLHELI_S 28A
- Processor: SILABS EFM8BB21F16G
- Firmware: BLHELI_S 16.6
- Driver: latest 3-in-1 MOS driver
- Input voltage: 2-4S LiPo / 2-4S HV LiPo
- Communication protocol: PWM, Multishot, Oneshot, DSHOT
- MOS tube: AON7418
- Persistent current: 28
- Peak current: 35A ( 5s )
- Brake function is enabled by default

Brushless Motor:
- Mode: FuriBee 1506
- KV: 3400KV
- Input voltage: 3-4S

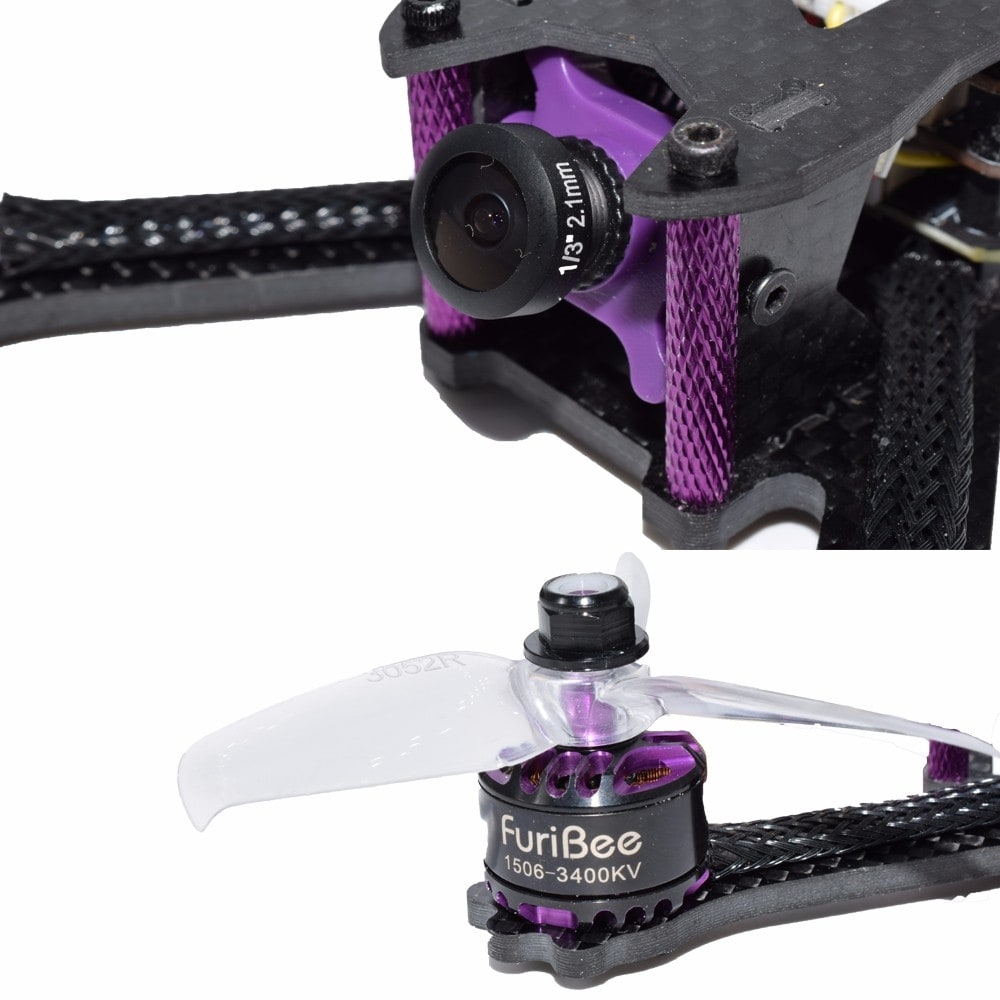

Camera:
- Micro camera
- Image sensor: 1/3 inch CMOS sensor
- Horizontal resolution: 800TVL
- Lens: 2.1mm ( M8 ) FOV145 degrees / 16 : 9
- Signal system: NTSC
- S / N Ratio: more than 50dB ( AGC OFF )
- Electronic shutter speed: NTSC: 1/30 - 100,000
- Auto gain control: ( AGC ) low / middle / high
- Min. illumination: 0.01Lux, 1.2F
- WDR: low / middle / high
- DNR: 2DNR
- Day / night: EXT / COLOR / BW / AUTO GEN
- Power: DC 5-36V
- Working current: 12V, 70mA / 5V, 170mA

Receiver:
- PNP: no
- BNF: Frsky 8CH Receiver
- 600m long-distance reception
- Resolution: 1024
- Receiver port: PPM, SBUS

- Image Transmission:
- Output Power: 0mw / 25mW / 100mW / 200mW
- Output power self-check function
- Full format video format: NTSC /PAL
- Wide input voltage range, low power consumption, 7V - 24V, +12V / 170mA, 200mW

Antenna:
- 5.8G 5dBi RHCP RP-SMA

Propeller:
- GEMFAN 3052 three-blade

LED Buzzer Module:
- WS2812B LED panel
