Description:
FuriBee Space Wolf DT140 is a powerful "monster" with a bigger size - 140mm wheelbase. Made of ultra solid 3K carbon fiber, it is robust to cope with strong impact from the outside. The high-performance D1407 3600KV brushless motors and reinforced 3045 propellers are its powerful wings for flying at a breathtaking speed. It also has a sharp eye, 600TVL CCD camera, which can see clearly in different conditions and immerse you in the stunning FPV.
Main Features:

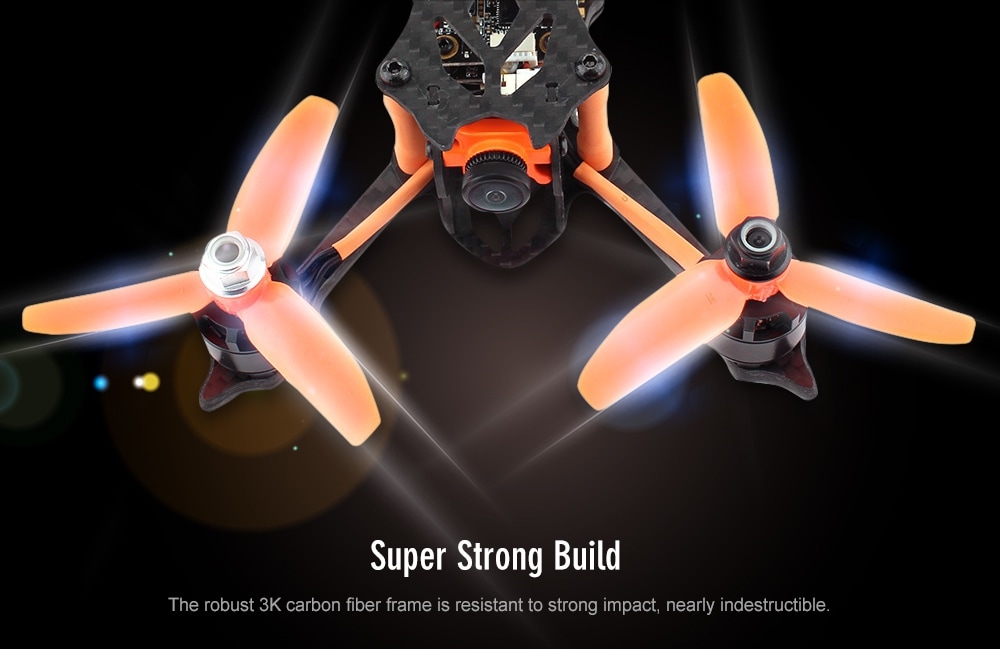

â 140mm wheelbase, durable 3K carbon fiber frame with 3mm thick chassis
â OMNIBUS F4 flight controller integrated with BetaFlight OSD responds faster

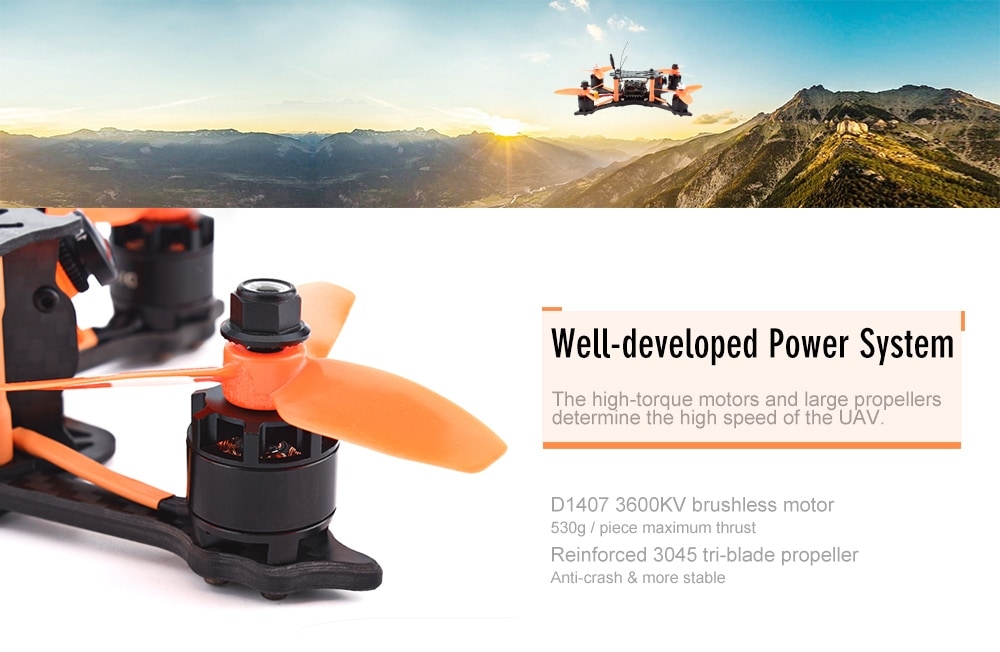

â 4-in-1 BLHeli - S 28A DShot ESC and D1407 3600KV motors make for thrilling speed

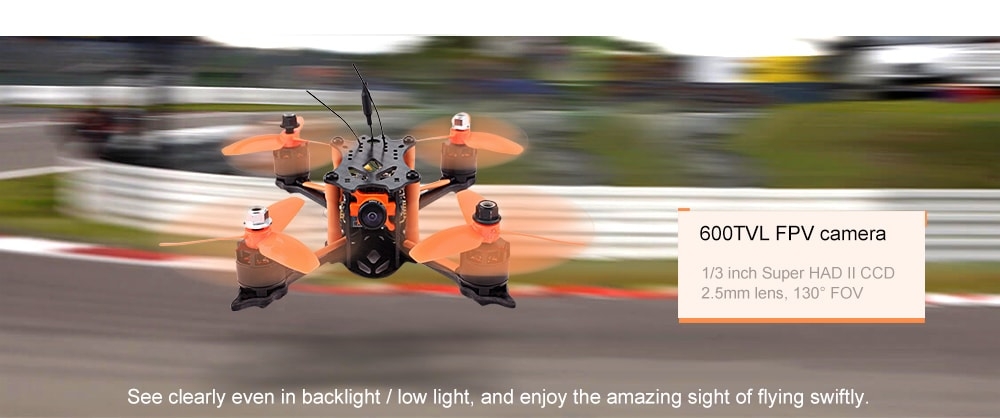

â 600TVL CCD camera for clear image in all conditions and immersive FPV without latency
â 5.8GHz 40CH VTX, 0mW / 25mW / 200mW adjustable for indoor and long-distance flight
Specifications:
Frame Kit
Material: 3K carbon fiber
Wheelbase: 140mm
Arm Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Side Plate Thickness: 1.5mm

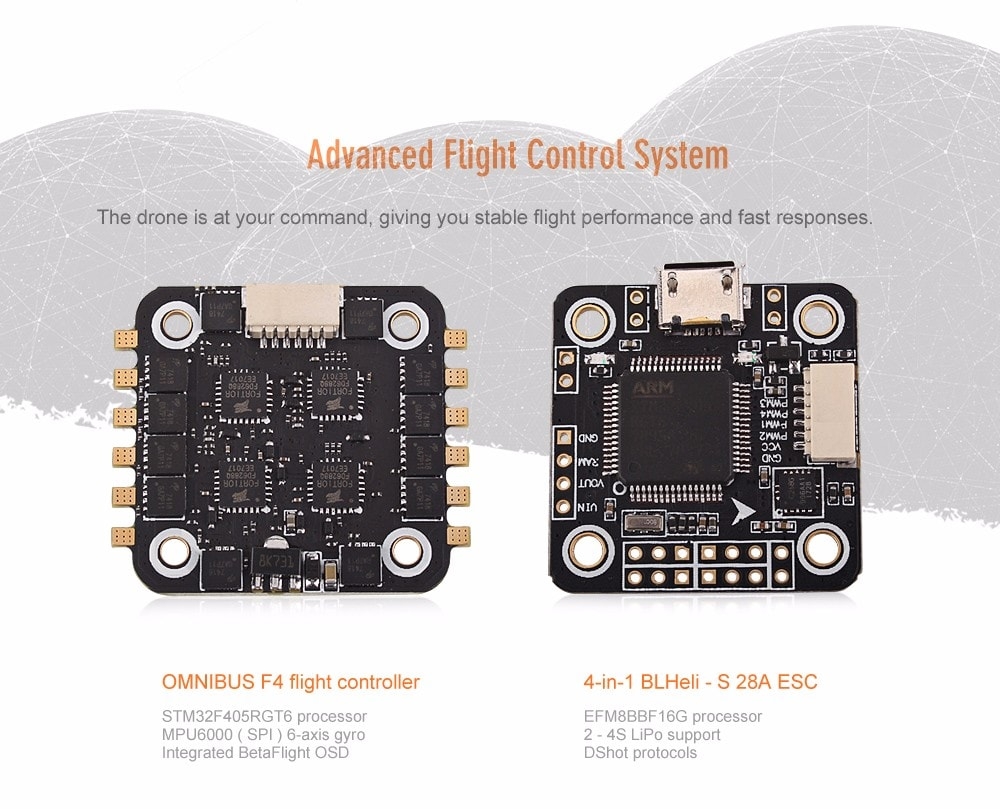

Micro F4 Flight Controller
CPU: STM32F405RGT6
IMU: MPU6000 ( SPI )
Black Box: flash 16MB
Input Voltage: 2 - 4S LiPoÂ
BEC Output: 5V 3A
Size: 25 x 25mm board, 20mm mounting holes distance ( M2 )
Built-in BetaFlight OSD: yes
Supported Receiver: SUBS / PPM / DSMX
28A 2-4S BLHeli - S BB2 4-in-1 ESC
CPU: EFM8BBF16G processor
Driver: FD6288
Firmware: BLHeli - S 16.6
Size: 27 x 27mm ( main board ), 31 x 31mm ( including pad )
Installing Hole: 20 x 20mm, M2
Micro FPV Transmitter
Output Power: 0mW / 25mW / 200mW switchable
Input Voltage: 7 - 24V
BEC Output: 5V 3A
Video System: NTSC / PAL
Antenna Connector: IPEX

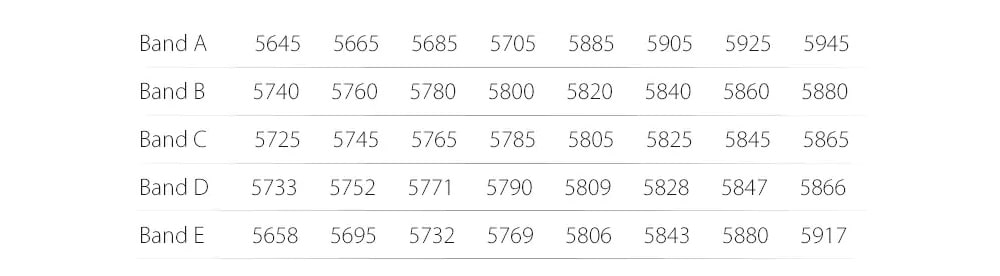

Frequency: 5.8GHz 48 channels, with RaceBand: 5325 - 5945MHz
Size: 23 x 23mm ( L x W )
RunCam Micro Camera
Image Sensor: 1/3 inch super HAD II CCD
Horizontal Resolution: 600TVL
Focal Length: 2.5mm
Field of View: 130 degree
Signal System: NTSC / PAL switchable
S/N Ratio: more than 60dB ( AGC OFF )
Electronic Shutter Speed: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000
Auto Gain Control ( AGC ): yes
Back Light Compensation ( BLC ): yes
Min. Illumination: 0.01Lux / 1.2F
WDR: D-WDR
DNR: 2DNR
Day / Night: Color / Auto / Black and White
Power: DC 5 to 36V
Net Weight: 5.6g
Dimensions: 19 x 19 x 19mm
Specification
General |
Brand: FuriBee
Type: Frame Kit |
|---|---|
Motor |
Motor Type: Brushless Motor
KV: 3600 Stator Length: 7mm Stator Diameter: 14mm Shaft Diameter: 5mm Motor Dimensions: 33.5mm ( diameter ) No. of Cells: 2 - 4S |
Flight Controller |
Flight Controller Type: F4 |
Camera |
Video Resolution: 600TVL ( horizontal )
Video Standards: NTSC,PAL Sensor: CCD |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: Damped Light,DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Continuous Current: 4 x 28A Burst Current: 4 x 35A Input Voltage: 2 - 4S |
Dimension and Weight |
Product weight: 0.1000 kg
Package weight: 0.2500 kg Package size (L x W x H): 15.00 x 15.00 x 6.00 cm / 5.91 x 5.91 x 2.36 inches |
Package Contents |
Package Contents: 1 x RC Drone Set |
