Main Features:

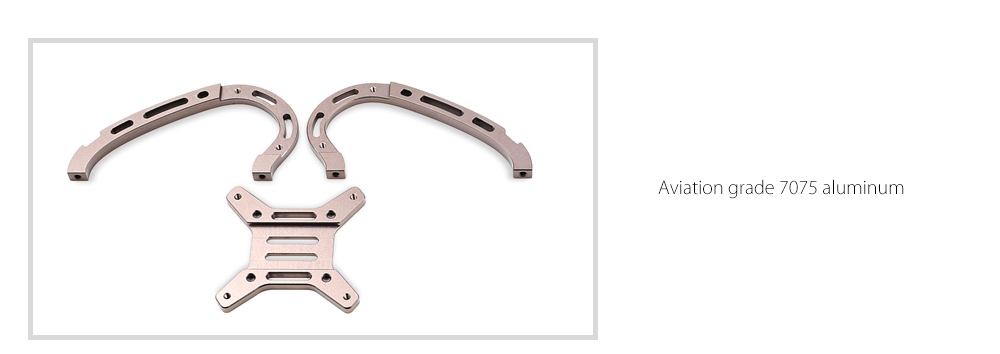

- CNC machined fuselage made of aviation grade 7075 aluminum, extremely solid and resistant to crash

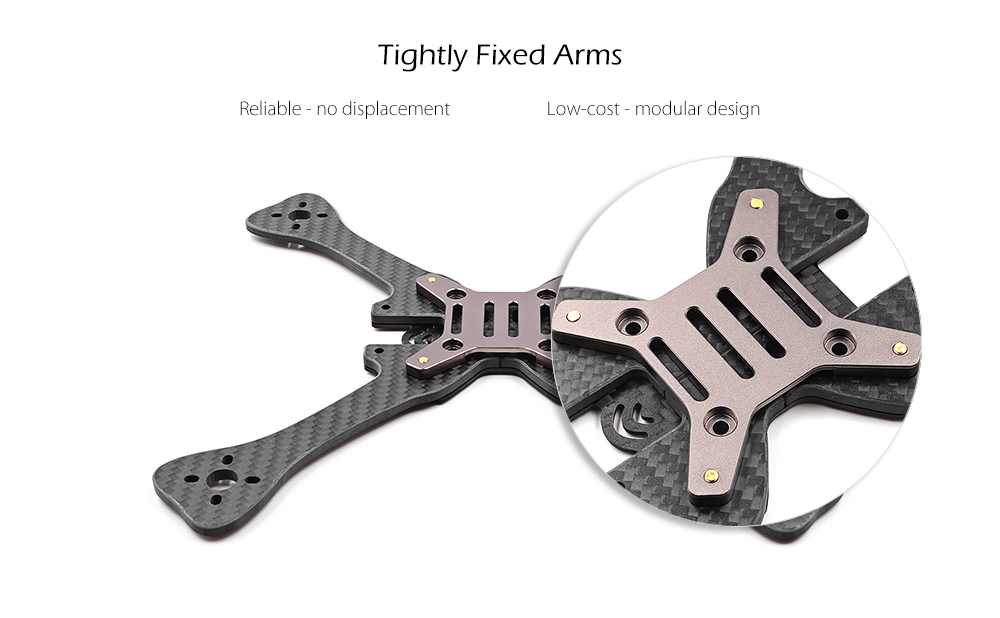

- An alloy part ensures the four arms will not slide or shift their position
- True "X" configuration, suitable for competition and freestyle racing

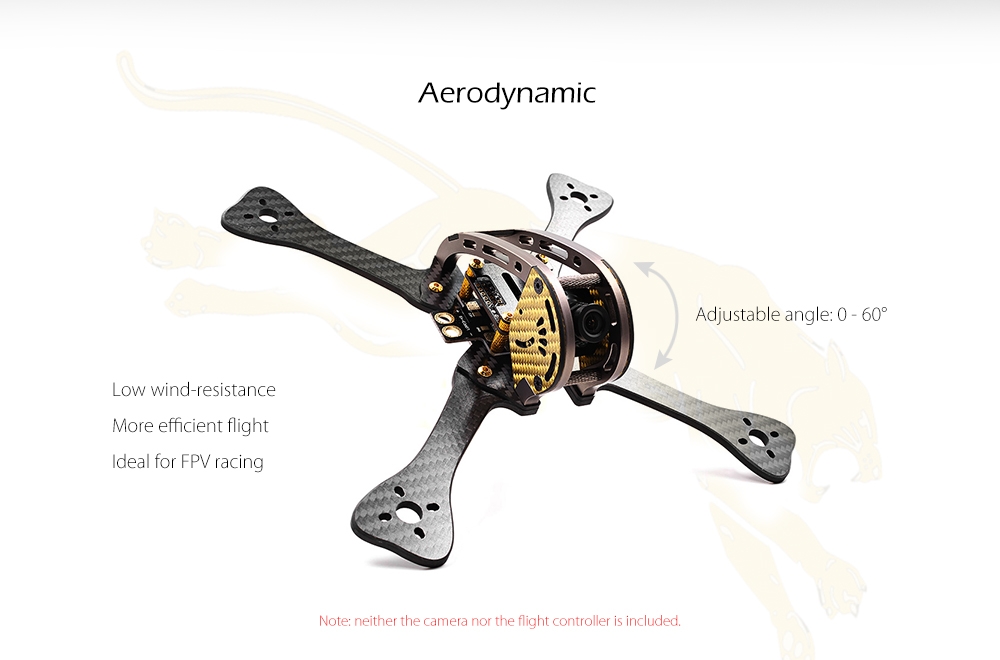

- The camera mount, especially designed for GoPro, RunCum, can be adjusted from 0 - 60 degree
- Camera protective boards on both sides support HS1190, HS1170, Swift, OVL lenses etc.
- More durable - widened motor seat prevents the motor from considerable impact; YFS screws feature 12.9 grade hardness
- Comes with a PDB with XT60 connector, 5V 3A and 12V 0.5A BEC outp
Specifications:
Item: GEP - LX4 Leopard
Weight: 109g
Wheelbase: 195mm
Arm thickness: 4mm
Sideboard thickness: 2mm
Other board thickness: 1.5mm
Recommended Parts ( not included ):
Flight controller: F3 / F4 / NAZE32 / CC3D
Motor: 2204 / 2005 / 2206 / 2305 / 2306
ESC: 20 - 30A
Propeller: 4 inch
Battery: 3 - 4S, 1300 - 1500mAh
Specification
General |
Brand: GEPRC
Type: Frame Kit |
|---|---|
Dimension and Weight |
Product weight: 0.1090 kg
Package weight: 0.2900 kg Product size (L x W x H): 17.50 x 17.50 x 5.00 cm / 6.89 x 6.89 x 1.97 inches Package size (L x W x H): 20.00 x 10.00 x 3.50 cm / 7.87 x 3.94 x 1.38 inches |
Package Contents |
Package Contents: 1 x Frame Kit, 1 x PDB, 1 x XT60 Connector, 2 x Strap |
