HGLRC F4 V5 PRO Flight Controller

HGLRC F4 V5 PRO Flight Controller
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Advanced STM32F405RGT6 processor, onboard 16MB flash for flight data logging
- MPU6000 connected via SPI, high-speed data sampling
- BetaFlight OSD designed for tuning PID via transmitter
- Integrated with current sensor and 5V 3A BEC

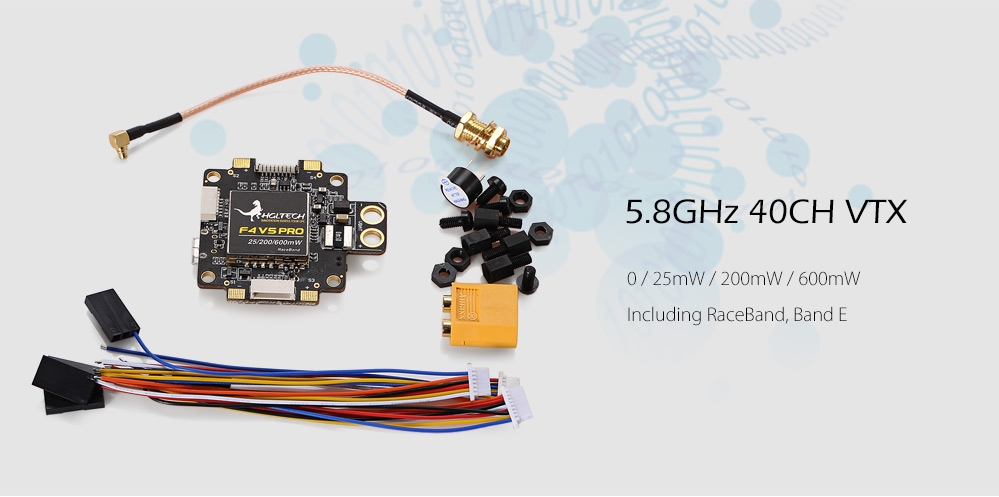

- 5.8GHz 40CH VTX, 0 / 25mW / 200mW / 600mW adjustable power
- 4 x 3oz copper PCB supports 2 - 6S LiPo and up to 200A current
- Compatible with mainstream receivers, such as SBUS / PPM / DSMX receivers etc.
- Supports buzzer, LED strip, voltage monitoring, and BLHeli - S ESC programming

Specifications:
Processor: STM32F405RGT6
IMU: MPU6000
Firmware: BetaFlight
Power supply: 2 - 6S LiPo
Max. current support: 200A
BEC: 5V 3A
Mounting hole spacing: 30.5 x 30.5mm
VTX frequency: 5.8GHz

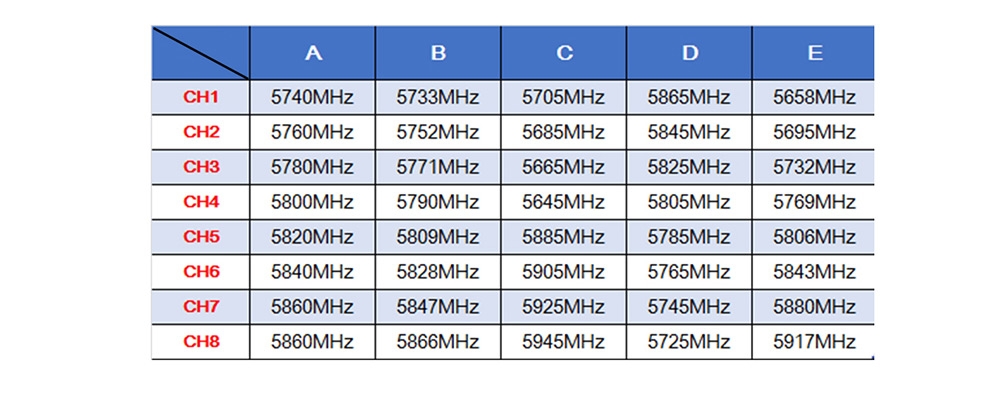

Channels: 40 ( including RaceBand, Band E )
Output power: 0 / 25mW / 200mW / 600mW

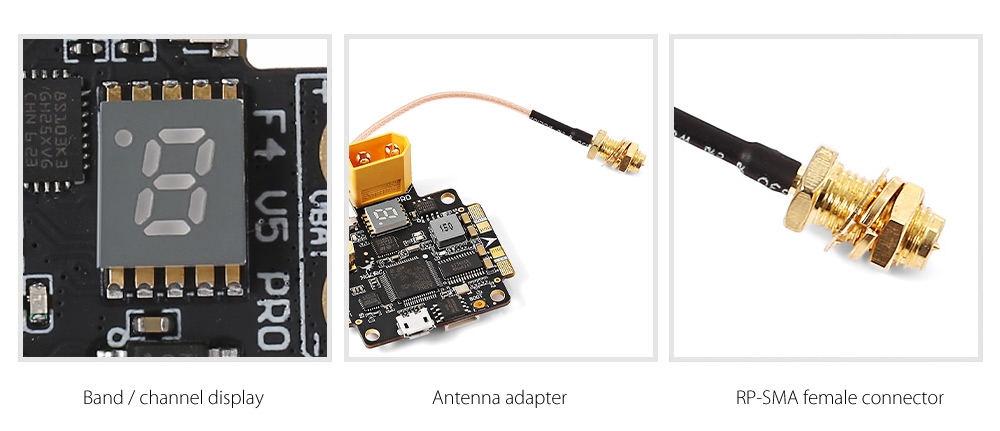

Antenna adapter: with RP-SMA female connector

Click here to download the user manual.

Specification

General

Type: Flight Controller

Dimension and Weight

Product weight: 0.0140 kg
Package weight: 0.0850 kg
Product size (L x W x H): 4.70 x 4.40 x 0.70 cm / 1.85 x 1.73 x 0.28 inches
Package size (L x W x H): 10.50 x 7.30 x 2.50 cm / 4.13 x 2.87 x 0.98 inches

Package Contents

Package Contents: 1 x Flight Controller, 1 x XT60 Male Connector, 1 x Buzzer, 1 x Antenna Adapter, 2 x 8-pin Cable, 1 x 6-pin Cable
