Main Features:
Usage: for 65 - 250mm frame kit
Specifications:

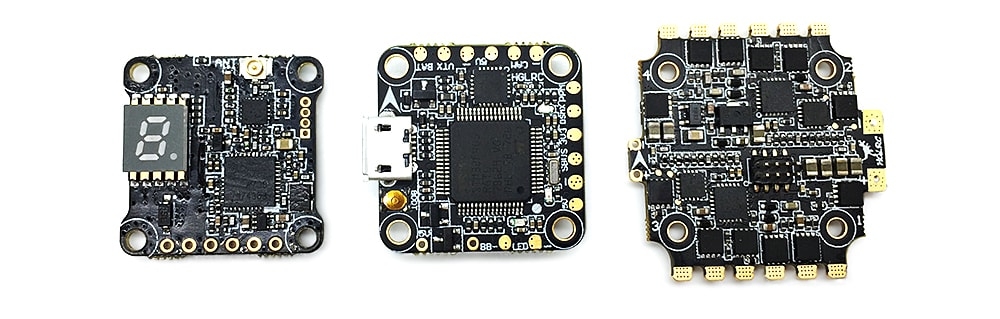

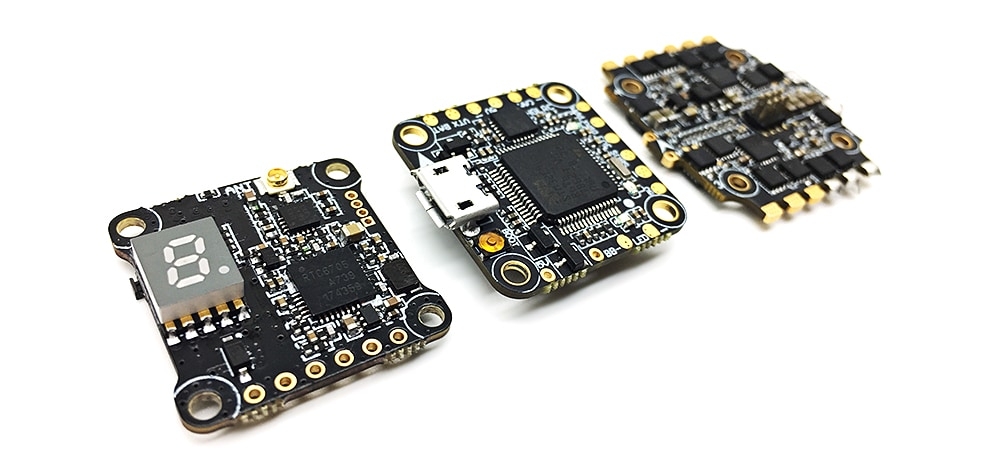

Micro F4 Flight Control Board ( DShot Version ):
MPU: MPU6000 ( SPI )
CPU: STM32F405RGT6, dual 8K
Black box: 16M flash
Input voltage: 2 - 4S LiPo
Built-in BetaFlight OSD to adjust PID
BEC output: 5V at 3A
Size: 25 x 25mm board, 20mm mounting holes ( M2 )
Weight: 3.7g
Support SUBS / PPM / DSMX receiver
2 - 4S BLHeli - S BB2 4-in-1 ESC:
Input voltage: 2 - 4S LiPo battery
Constant current: 33A
Peak current: 38A
BEC output: no
Firmware: BLHeli - S 16.5
Size: 27 x 27mm ( main board ), 32 x 32mm ( including pad )
Installing hole: 20 x 20mm, M2
Weight: 4.7g
CPU: SILABS EFM8BB2 48MHZ
Firmware: BetaFlight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
Mini FPV Transmitter:
Output power: PIT / 25mW / 100mW / 200mW / 350mW switchable
Control mode: BFOSD control ( RX ) / button
Video system: NTSC / PAL
Antenna: IPEX
Frequency: 5.8GHz 6 bands 48 channels, with raceband: 5362 - 5945MHz
Size: 24 x 24mm ( L x W ), hole: 20 x 20mm
Weight: 2.4g
Usage: for 65 - 250mm frame kit
Specifications:
Micro F4 Flight Control Board ( DShot Version ):
MPU: MPU6000 ( SPI )
CPU: STM32F405RGT6, dual 8K
Black box: 16M flash
Input voltage: 2 - 4S LiPo
Built-in BetaFlight OSD to adjust PID
BEC output: 5V at 3A
Size: 25 x 25mm board, 20mm mounting holes ( M2 )
Weight: 3.7g
Support SUBS / PPM / DSMX receiver
2 - 4S BLHeli - S BB2 4-in-1 ESC:
Input voltage: 2 - 4S LiPo battery
Constant current: 33A
Peak current: 38A
BEC output: no
Firmware: BLHeli - S 16.5
Size: 27 x 27mm ( main board ), 32 x 32mm ( including pad )
Installing hole: 20 x 20mm, M2
Weight: 4.7g
CPU: SILABS EFM8BB2 48MHZ
Firmware: BetaFlight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
Mini FPV Transmitter:
Output power: PIT / 25mW / 100mW / 200mW / 350mW switchable
Control mode: BFOSD control ( RX ) / button
Video system: NTSC / PAL
Antenna: IPEX
Frequency: 5.8GHz 6 bands 48 channels, with raceband: 5362 - 5945MHz
Size: 24 x 24mm ( L x W ), hole: 20 x 20mm
Weight: 2.4g
Specification
General |
Type: Flight Controller Set |
|---|---|
Dimension and Weight |
Product weight: 0.0108 kg
Package weight: 0.0215 kg Product size (L x W x H): 3.20 x 3.20 x 0.02 cm / 1.26 x 1.26 x 0.01 inches Package size (L x W x H): 4.00 x 4.00 x 4.00 cm / 1.57 x 1.57 x 1.57 inches |
Package Contents |
Package Contents: 1 x Flight Control Board, 1 x ESC, 1 x Mini FPV Transmitter, 4 x M2 25 Screw, 4 x M2 Screw Nut |
