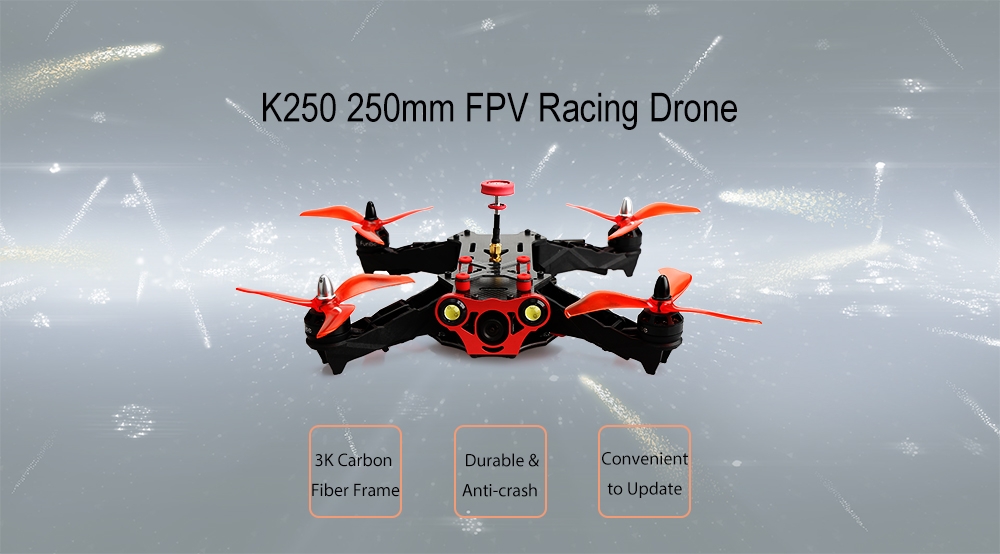

K250 250mm FPV Racing Drone

K250 250mm FPV Racing Drone
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Description:
K250 250mm FPV racing drone is a brilliant outdoor racer, equipped with the 2205 2300KV brushless motor and BLHeli - S 30A ESC. The F3 flight controller and DShot ESC make the motor respond as quickly and accurately as possible, so you can attach a 3S or 4S LiPo to it and enjoy flying at a breathtaking speed.
Meanwhile, the 1000TVL HD camera allows you to see clearly, the 600mW video transmitter enables a wider image transmission range, the 2dBi pagoda antenna ensures the signal coverage. Thus, you are able to get the maximum immersion that you are looking forward to.

Main Features:
● Optimized propulsion system - 2205 2300KV brushless motor, BLHeli - S 30A ESC, 5043 tri-blade propeller
● Fluent HD FPV - 1000TVL CMOS camera, 5.8G 32CH 600mW video transmitter, 2dBi pagoda antenna
● Durable 3mm thick "X" carbon fiber frame with enormous room to install a battery

Specifications:
General
Weight: 435g ( excluding antenna and propellers )
Material: 3K full carbon fiber
Frame thickness: 3mm
Brushless motor: 2205 2300KV
Brushless ESC: BLHeli - S 30A
Propeller: 5043 tri-blade ( 2 pairs )
Camera: 1000TVL CMOS NTSC
Video transmitter: 5.8G 32CH 600mW

F3 Flight Controller
Version: ACRO 6DOF
CPU: STM32F303, 72MHz inc FPU
IMU: MPU6050 3-axis gyro / accelerometer
Integrated OSD: yes

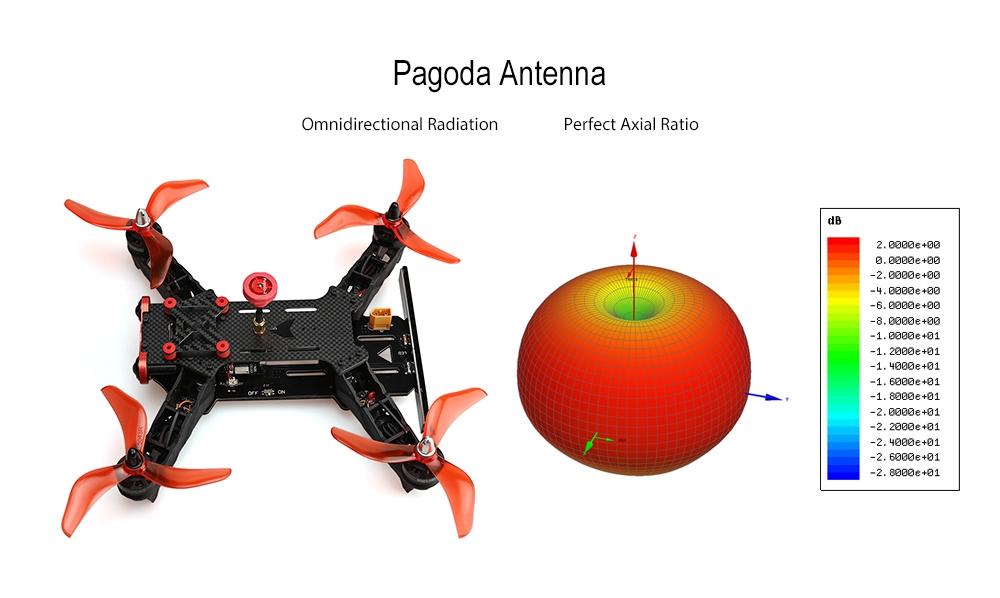

Pagoda Antenna
Gain: 2dBi
Frequency range: 5.55 - 6.05GHz
Matching: S11 less than -20dB, VSWR less than 1.22 ( at center frequency )
Axial ratio: less than 1.3
Polarization: circular

Different Versions:
PNP: no receiver
BNF FLYSKY: with FS - iA6 AFHDS 2A 2.4GHz 6CH receiver, compatible with FLYSKY FS transmitters
BNF FrSky: with FrSky 16CH receiver, compatible with TARANIS transmitters

Specification

General

Type: Frame Kit

Motor

Model: 2205
Motor Type: Brushless Motor
KV: 2300
No. of Cells: 3 - 4S

Flight Controller

Flight Controller Type: F3

Camera

Video Resolution: 1000TVL ( horizontal )
Video Standards: NTSC
Sensor: CMOS

Electronic Speed Controller

Firmware: BLHeli-S
Functions: Damped Light,DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42
Continuous Current: 30A
Burst Current: 45A
Input Voltage: 3 - 6S

Dimension and Weight

Product weight: 0.4350 kg
Package weight: 0.8900 kg
Product size (L x W x H): 21.00 x 21.00 x 3.50 cm / 8.27 x 8.27 x 1.38 inches
Package size (L x W x H): 31.00 x 31.00 x 17.00 cm / 12.2 x 12.2 x 6.69 inches

Package Contents

Package Contents: 1 x Aircraft Body, 1 x Battery Strap, 1 x Battery Fitting, 8 x Propeller, 1 x Antenna
