MXK X83 83mm Wheelbase 1.6mm Arm Bottom Plate AIO 5A BLheli_S BB2 DShot600 1-2S ESC for RC Drone - 23.15 €

MXK X83 83mm Wheelbase 1.6mm Arm Bottom Plate AIO 5A BL_S DShot600 1-2S ESC for RC Drone

Specification:
Brand Name: MXK
Model: X83
Item Name: 83mm Wheelbase Bottom Plate AIO 5A 4 In 1 ESC for building FPV Racing Drone
Wheelbase: 83mm
Material: PCB
The Thickness of Arm Plate: 1.6mm
BEC: Without BEC Output

5A 4 In 1 Brushless ESC
Con. Current: 5A
Peak Current: 7A
Firmware: BLheli_S
Battery: 1-2S Lipo
- EFM8BB2 MCU runs at 48Mhz
- Support DShot600
- Weight: 5.9g

Recommended Parts:
Flight Controller: Mini Flight Controller with 16x16mm Mounting Hole
Brushless Motor: 1103 / 1103B / 1104 Motor
VTX: 5.8G 25mW Mini FPV Transmitter ( such as
Lipo Battery: 1-2S Lipo Battery

The Following Parts are suitable:
Flight Controller: Racerstar F3D8 16X16mm F3 Flight Control Built-in 8CH SBUS Receiver
Super_S
Brushless Motor: Racerstar BR1103 8000KV 1S Brushless Motor

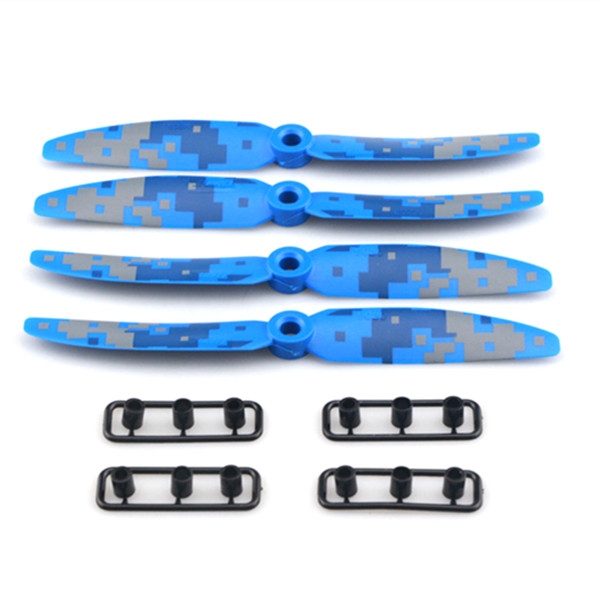

Propeller: Gemfan 3035 3x3.5 3 Inch 3-Blade Propellers 2 CW & 2 CCW

Camera Mounting Base:16x16mm FPV Camera Holder Protective Cover for TinyFish Racewhoop
10/20/30° Mini Camera Tower Inclined Base Mount Holder 16x16mm

FPV Mini Camear: 5.8G 40CH 25MW VTX 800TVL 1/3 Cmos FPV Camera

FPV Transmitter: VM2981T 5.8G 48CH 25/200mW VTX 5-12V 16x16mm

Lipo Battery: 1S 3.7V Lipo Battery

Package Included:
1x 83mm Bottom Plate AIO 5A 4 In 1 ESC
