Description:

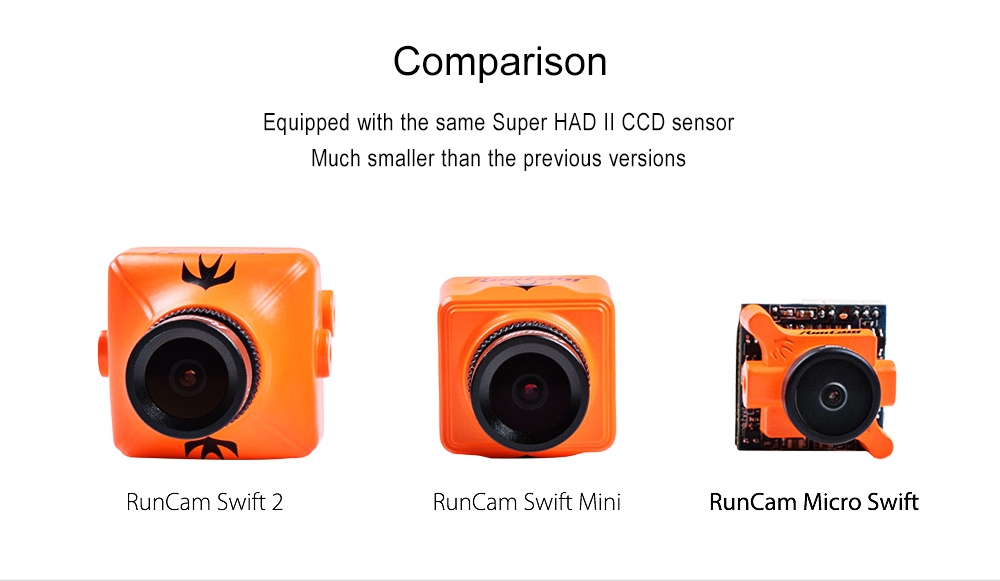

RunCam Micro Swift is the smallest and the lightest FPV camera in the world, measuring 19 x 19 x 19mm and only 5.6g. Equipped with the same CCD sensor, but with 2.1mm 160-degree FOV lens, it is an ideal choice for having a panoramic view.
Main Features:

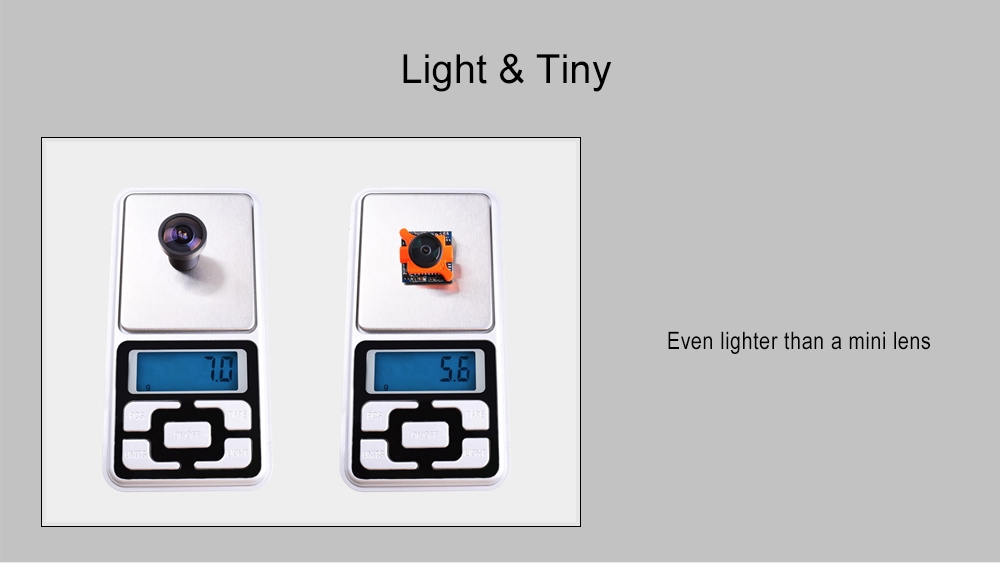

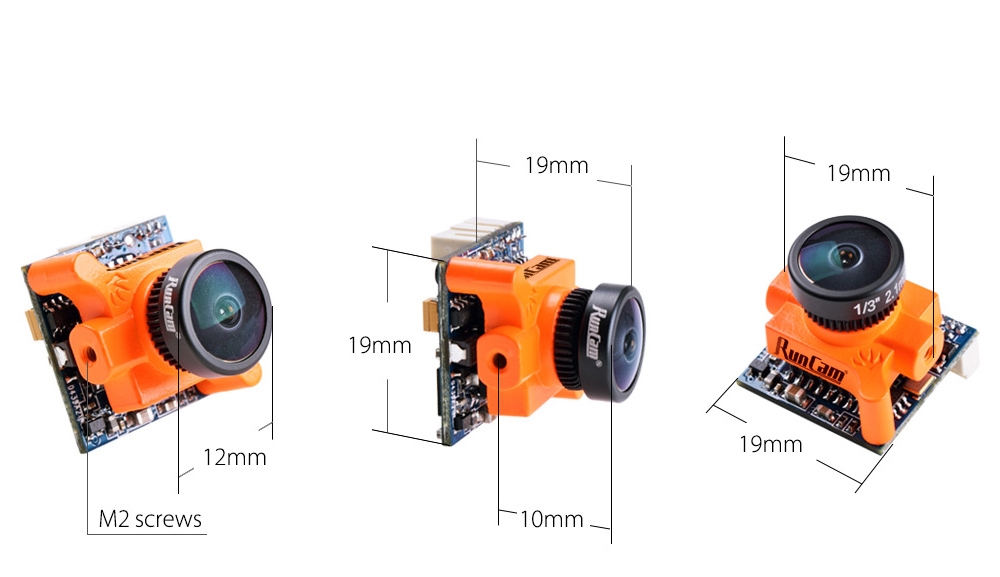

- Smallest and lightest, only 5.6g, 19 x 19 x 19mm
- 1/3 inch Super HAD II CCD sensor
- Ultra wide angle of view, 160-degree FOV
- Supports 5 - 36V DC input voltage
Specifications:
Image sensor: 1/3 inch Super HAD II CCD
Horizontal resolution: 600TVL
Lens: 2.1mm ( M8 ), 160-degree FOV
S/N ratio: more than 60dB ( AGC off )
TV system: PAL / NTSC
Electronic shutter speed: PAL: 1/50 - 100,000s; NTSC: 1/60 - 100,000s
Auto gain control ( AGC ): yes
Back light compensation ( BLC ): yes
Min. illumination: 0.01 lux, f/1.2
WDR: D-WDR
DNR: 2DNR
Day / night shift: Color / Auto / Black and White
Power supply: 5 - 36V DC
Click here to download the user manual.
Specification
General |
Brand: RunCam
FPV Equipments: FPV Mini Camera Functions: Video |
---|---|
Camera |
Sensor: CCD |
Dimension and Weight |
Product weight: 0.0056 kg
Package weight: 0.1340 kg Product size (L x W x H): 1.90 x 1.90 x 1.90 cm / 0.75 x 0.75 x 0.75 inches Package size (L x W x H): 6.10 x 9.60 x 7.60 cm / 2.4 x 3.78 x 2.99 inches |
Package Contents |
Package Contents: 1 x Camera, 1 x 1.25mm 3-pin to 1.25mm 3-pin FPV Silicone Cable, 1 x 1.25mm 3-pin to 1.0mm 3-pin FPV Silicone Cable |
