Highlights
- Support 2 to 4S battery (DC 5 to 17V) Wide voltage Power input
- Removable 5D OSD menu
- Digital Wide Dynamic Range(D-WDR)
- Digital Noise Reduction(2 DNR)
- Low Power Consumption
- Back light compensation (BLC)
- MIRROR
- Anti-exposure function support car license recording(HLC)
- Low illumination: 0.01Lux
- White dot repair(DPC)
- CVBS(RCA) Video output
Specification
| General | |
|---|---|
| Type | Camera |

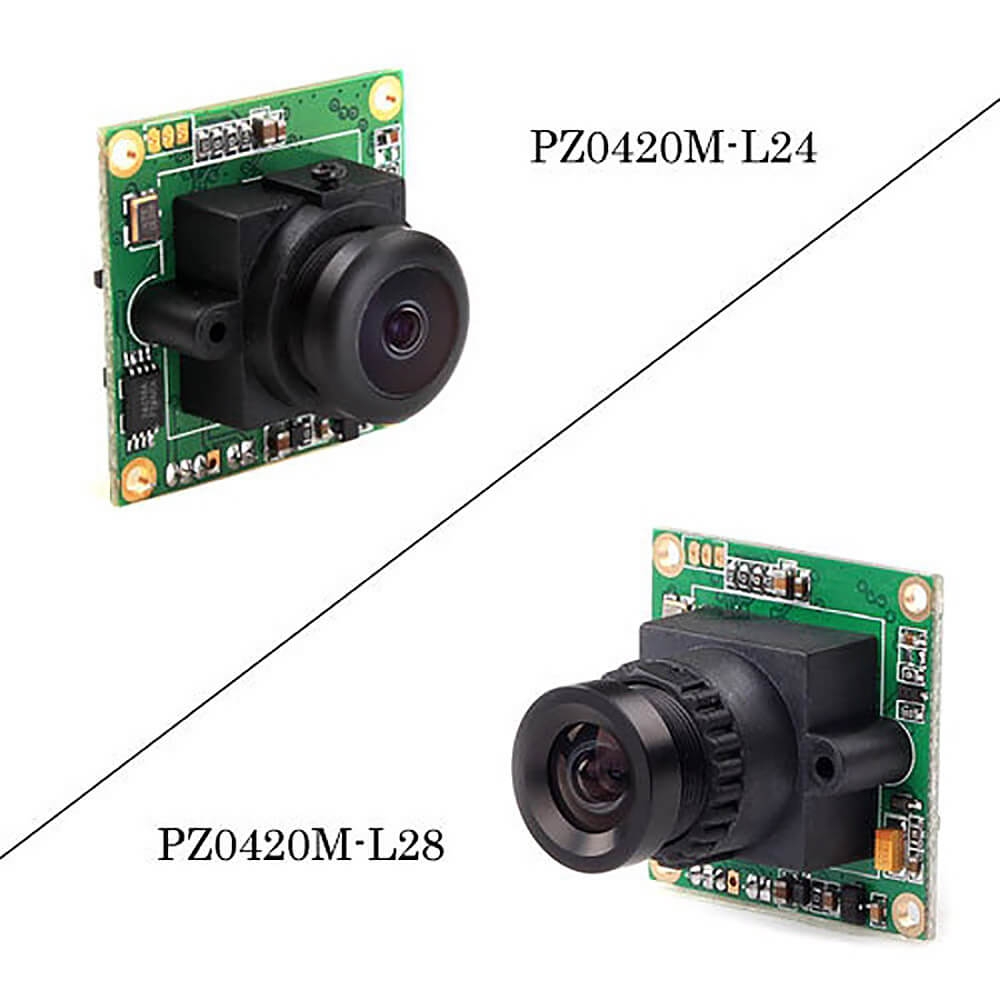

| Model | RunCam PZ0420M-L24 |
| Image Sensor | 1/3 SONY SUPER HAD II CCD |
| Horizontal Resolution | 600TVL |
| Effective Pixel | PAL:753(H)*582(V), NTSC:768(H)*494(V) |
| Signal System | NTSC |
| Synchronization | Internal Auto White Balance: Manual/Auto/Auto tracking |
| S/N Ratio | >60dB(AGC OFF) |
| Electronic Shutter Speed | PAL: 1/50 to 1/100,000sec; NTSC: 1/60 to 1/100,000 |
| Auto Gain Control | off/low/mid/high optional |
| Back light compensation (BLC) | off /BLC/ anti-exposure |
| Motion Detection (MD) | On/Off (multi-level sensitivity) |
| Min. Illumination | 0.01Lux/1.2F |
| Shading Area | 8 |
| Video Output | 1.0Vp-p 75 ohm |
| RCA Output | 170mA-30mA |
| Supply current | 170mA-30mA |
| Operation Temp. | –10 to +50 degrees |
| Operation Environment | 10% to 90% |
| Edge light compensation | Yes |
| Display Mode | LED monitor/CRT monitor |
| IR image optimize | Anti exposure of the object in the middle |
| DNR | 2DNR |
| Day/ Night Switch | Auto/ Color/ B&W/ Outside control (position start and end controllable) |
| Day/ Night time switch | 1 to 30 Switchable time |
| OSD | Chinese/ English |
| White dot repair (DPC) | Yes |
| Image adjust | Yes |
| Function Control | OSD |

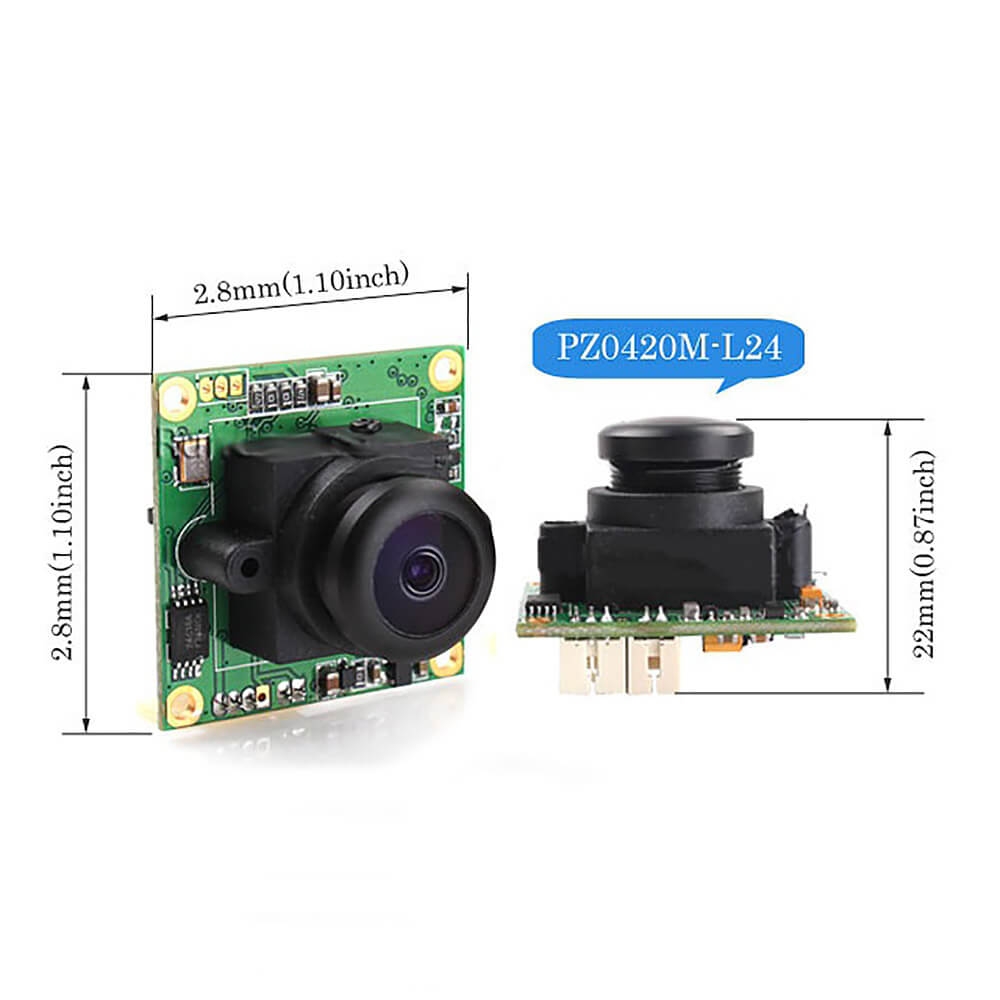

| Size/Weight | Board Size: 28 x 28mm Weight: 12g |
| Compatible | Suitable for Fixed-wing Aircraft, Multirotor like QAV250 etc. |

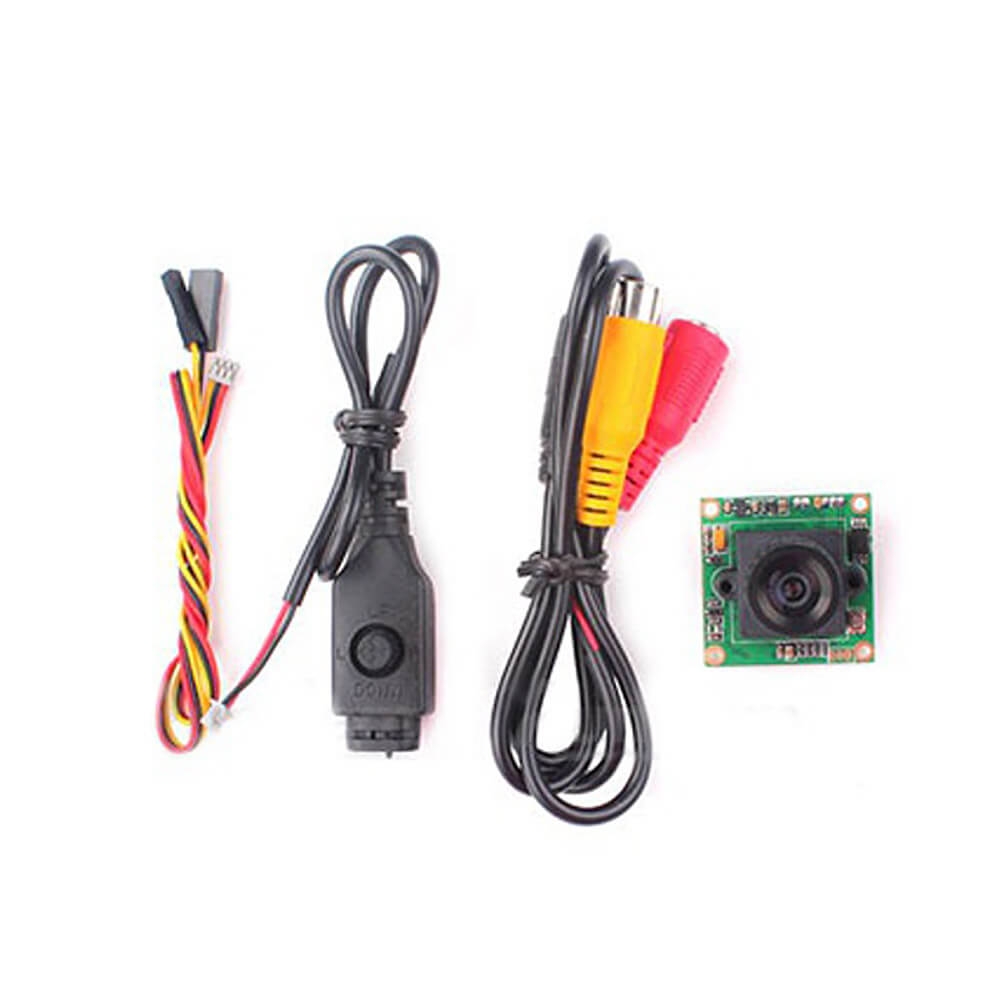

| Package Contents | |
| 1 x Camera | |
| 1 x Cable | |
| 1 x OSD Menu | |
| 1 x FPV Cable | |
| 1 x Manual | |
