Description:

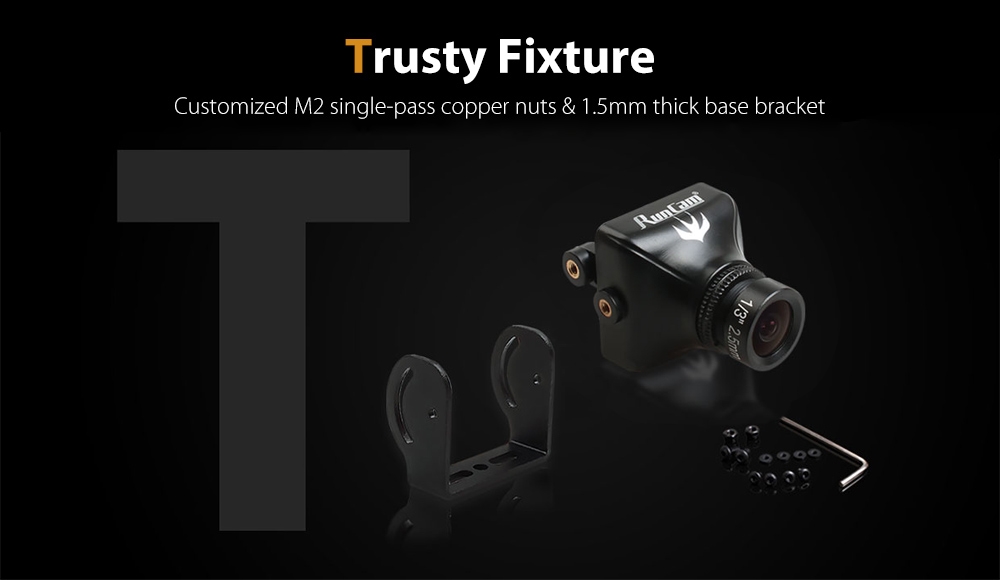

RunCam Swift 2 follows the "SWIFT" principle, by featuring shorter lens, wider input voltage, integrated OSD, microphone, FPV dedicated accessories, as well as trustworthy mounting method.
Main Features:
- 600TVL HD CCD camera with a shorter lens but wider FOV compared to the previous generation
- 5 - 36V ultra wide input voltage range, compatible with nearly all racing drone

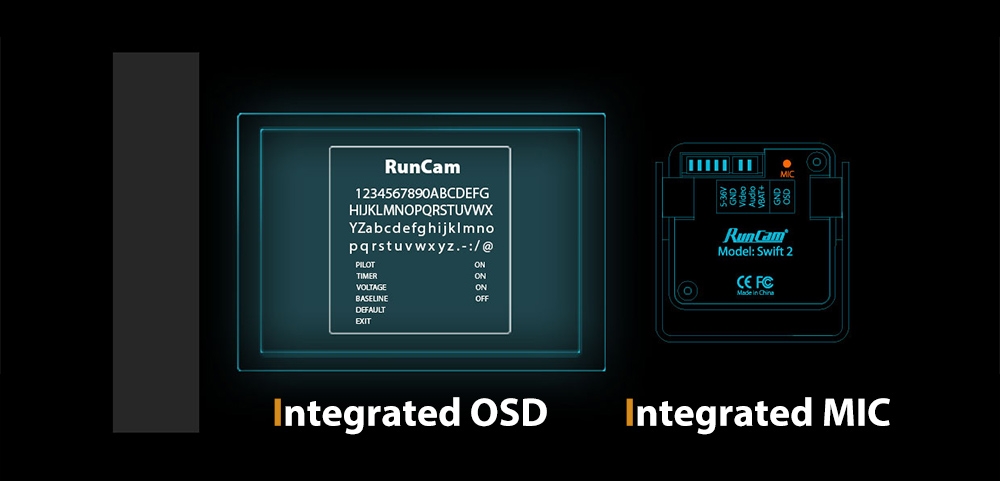

- Integrated OSD for display of parameters; 5D-OSD menu cable for adjusting parameters easily
- Integrated microphone designed for audio transmission brings you more immersive flight
Specifications:
Image sensor: 1/3 inch Super HAD II CCD
Horizontal resolution: 600TVL
Lens: 2.5mm / 2.3mm
TV system: PAL / NTSC
Integrated OSD: yes
Integrated MIC: yes
S/N ratio: more than 60dB ( AGC off )
Electronic shutter speed: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000
Auto gain control ( AGC ): yes
Back light compensation ( BLC ): yes
Min. illumination: 0.01 lux / 1.2F
WDR: D-WDR
DNR: 2DNR
Day / night: color / auto / black and white
Power supply: 5 - 36V DC
Net weight: 14g
Dimensions: 28.5 x 26 x 26mm
Click here to download the user manual.
Specification
General |
Brand: RunCam
FPV Equipments: FPV Mini Camera |
|---|---|
Dimension and Weight |
Product weight: 0.014 kg
Package weight: 0.144 kg Product size (L x W x H): 2.85 x 2.60 x 2.60 cm / 1.12 x 1.02 x 1.02 inches Package size (L x W x H): 6.10 x 9.60 x 7.60 cm / 2.4 x 3.78 x 2.99 inches |
Package Contents |

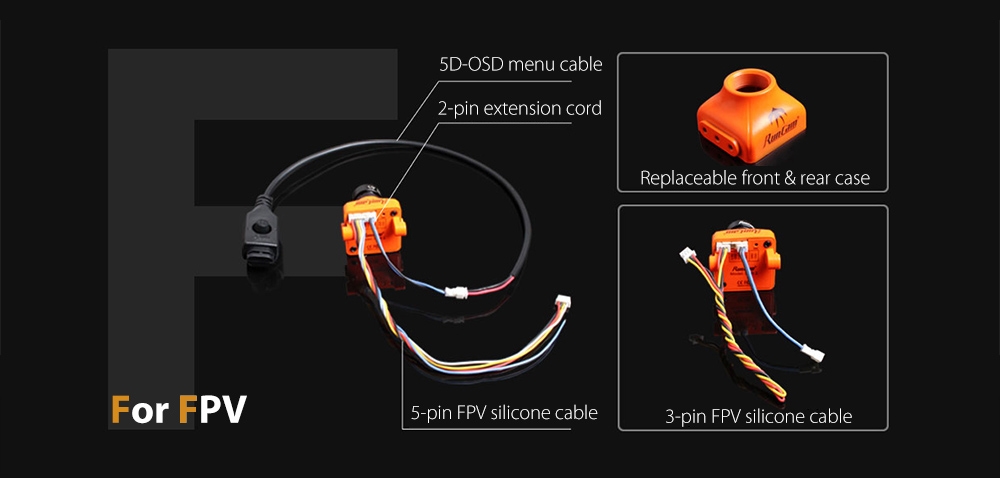

Package Contents: 1 x FPV Camera, 1 x Replaceable Front Case, 1 x Replaceable Rear Case, 1 x Aluminum Bracket, 1 x Set of Screws, 1 x 5D-OSD Menu Cable, 1 x 3-pin FPV Silicone Cable, 1 x 5-pin FPV Silicone Cable, 1 x 2-pin Extension Cord for Menu Cable, 1 x English Manual |
