Main Features:
- 600TVL HD camera with 1/3 inch SUPER HAD II CCD sensor offers you clearer image
- Supports 0.01 lux minimum illumination, excellent performance in low light condition

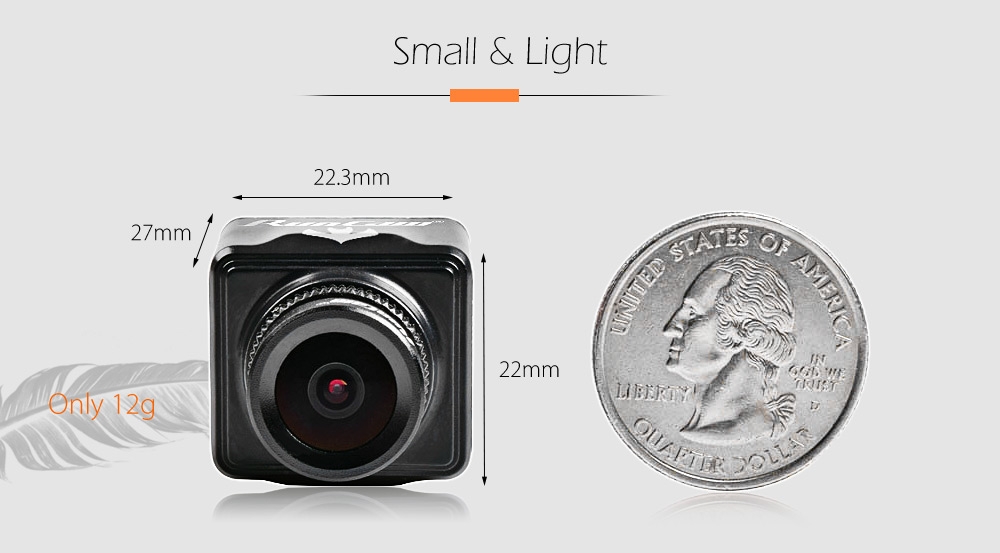

- Extremely small, its length / width approximates that of a coin. Ultralight, only 12g

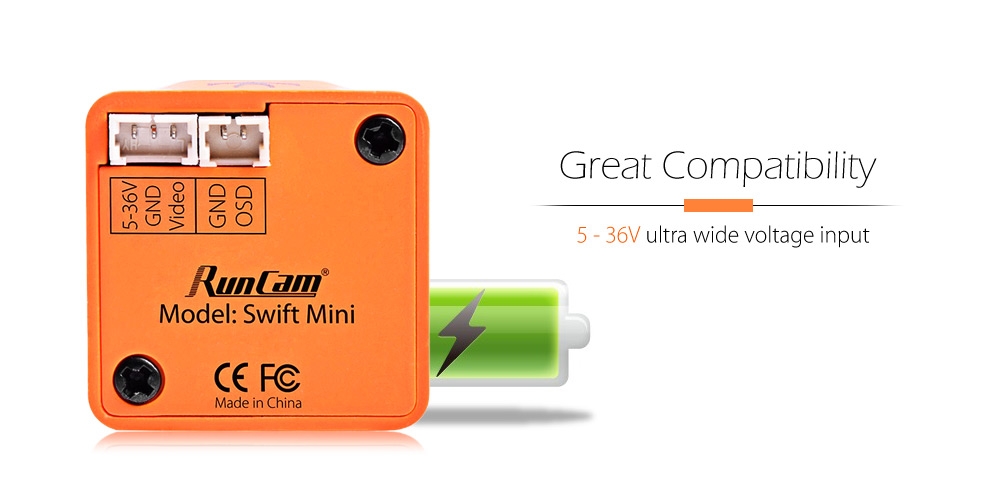

- Compatible with 5 - 36V ultra wide voltage input, ideal for building both small and huge drones
- Easy to adjust the parameters via the 5D OSD menu cable
Specifications:
Image sensor: 1/3 inch SUPER HAD II CCD
Horizontal resolution: 600TVL
Lens: 2.5mm / 2.3mm / 2.1mm
TV system: PAL / NTSC
SNR: more than 60dB ( AGC off )
OSD menu language: English / Chinese
Electronic shutter speed: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000
Auto gain control ( AGC ): yes
Back light compensation ( BLC ): yes
Min. illumination: 0.01 lux at 1.2F
WDR: D-WDR
DNR: 2DNR
Day / night: color / auto / black and white
Power supply: 5 - 36V DC
Net weight: 12g

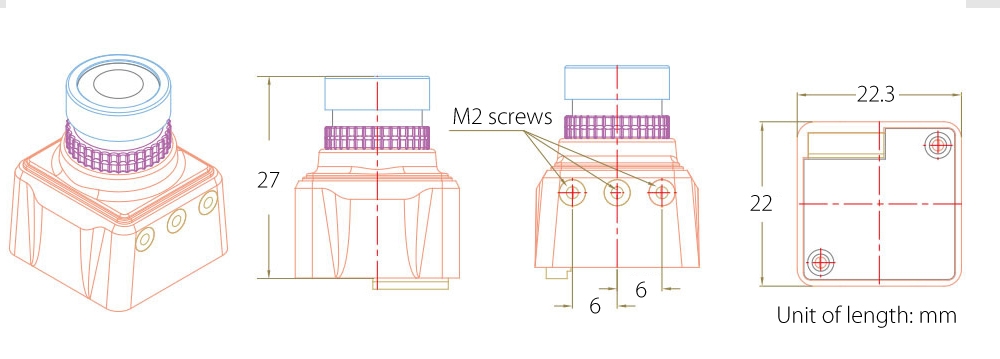

Size: 22.3 x 22 x 27mm
Note:
The coin in the picture is not included.
Click here to download the user manual.
Specification
General |
Brand: RunCam
FPV Equipments: FPV Mini Camera |
|---|---|
Camera |
Sensor: CCD |
Dimension and Weight |
Product weight: 0.0120 kg
Package weight: 0.1440 kg Product size (L x W x H): 2.23 x 2.20 x 2.70 cm / 0.88 x 0.87 x 1.06 inches Package size (L x W x H): 9.60 x 7.50 x 6.00 cm / 3.78 x 2.95 x 2.36 inches |
Package Contents |
Package Contents: 1 x Camera, 1 x Aluminum Bracket, 1 x ABS Bracket, 1 x Set of Screws, 1 x 5D Menu Cable, 1 x 3-pin FPV Silicone Cable, 1 x 2-pin Extension Cord for Menu Cable, 1 x English Manual |
