Specifications:

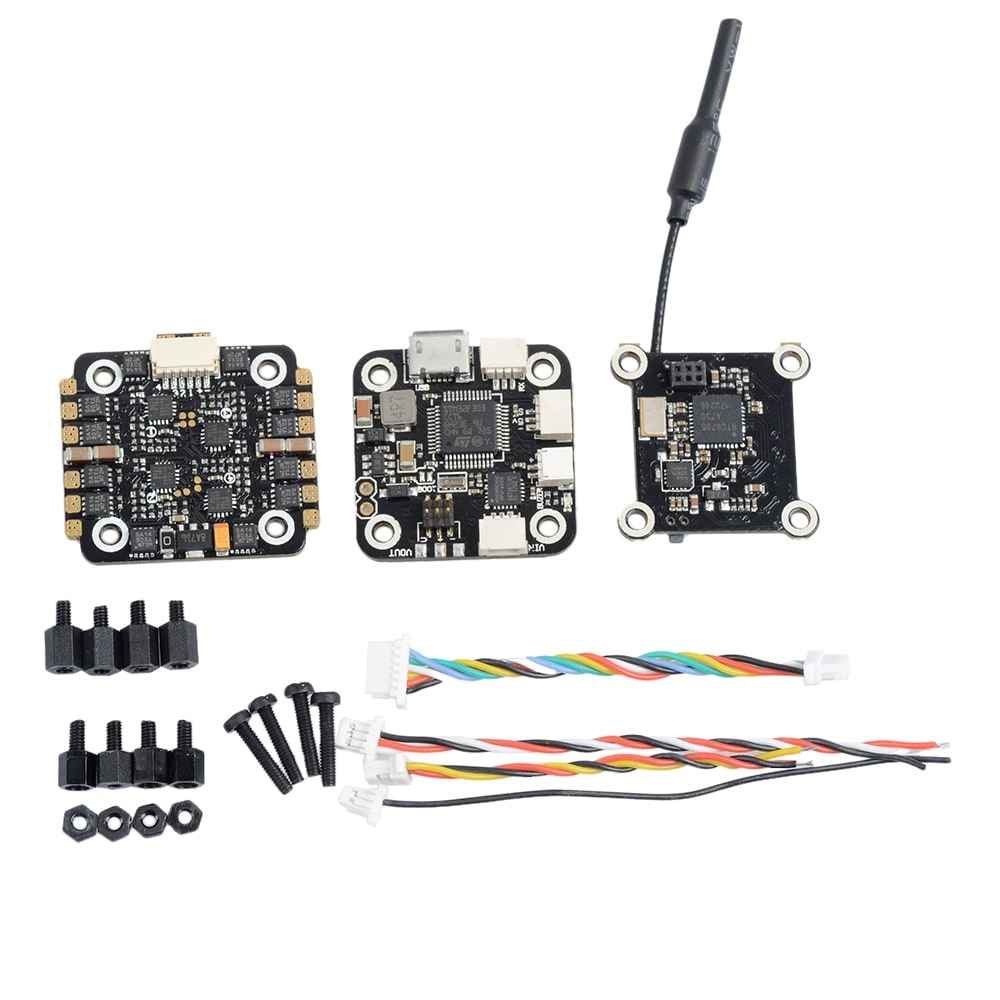

F3 Flight Controller
MCU: STM32F303
IMU: MPU6000
Built-in LC filter: yes
Integrated OSD: yes
Buzzer: support
LED strip: support
Compatible receiver: DSM2 / PPM / SBUS
4-in-1 BLHeli - S ESC
Processor: EFM8BB21
Driver: 3-in-1 IC driver
Continuous current: 4 x 20A
Burst current: 4 x 25A ( up to 5s )

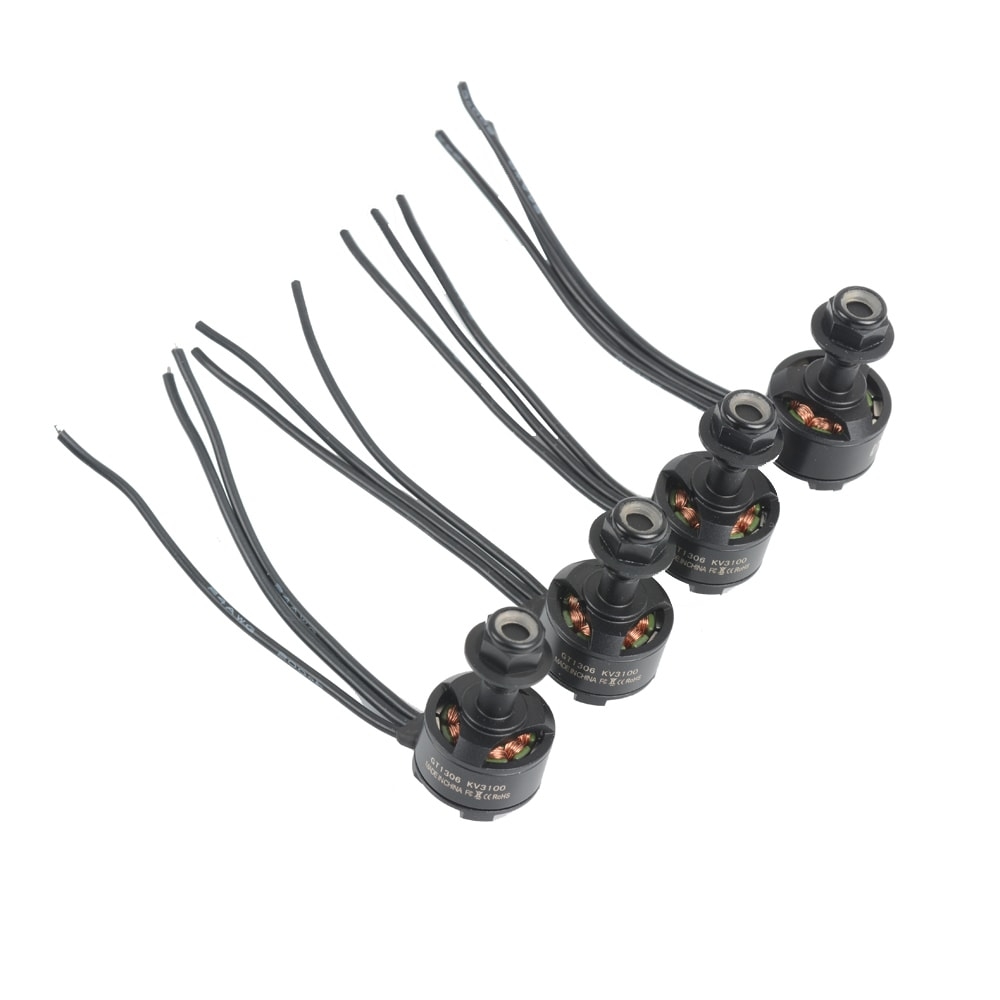

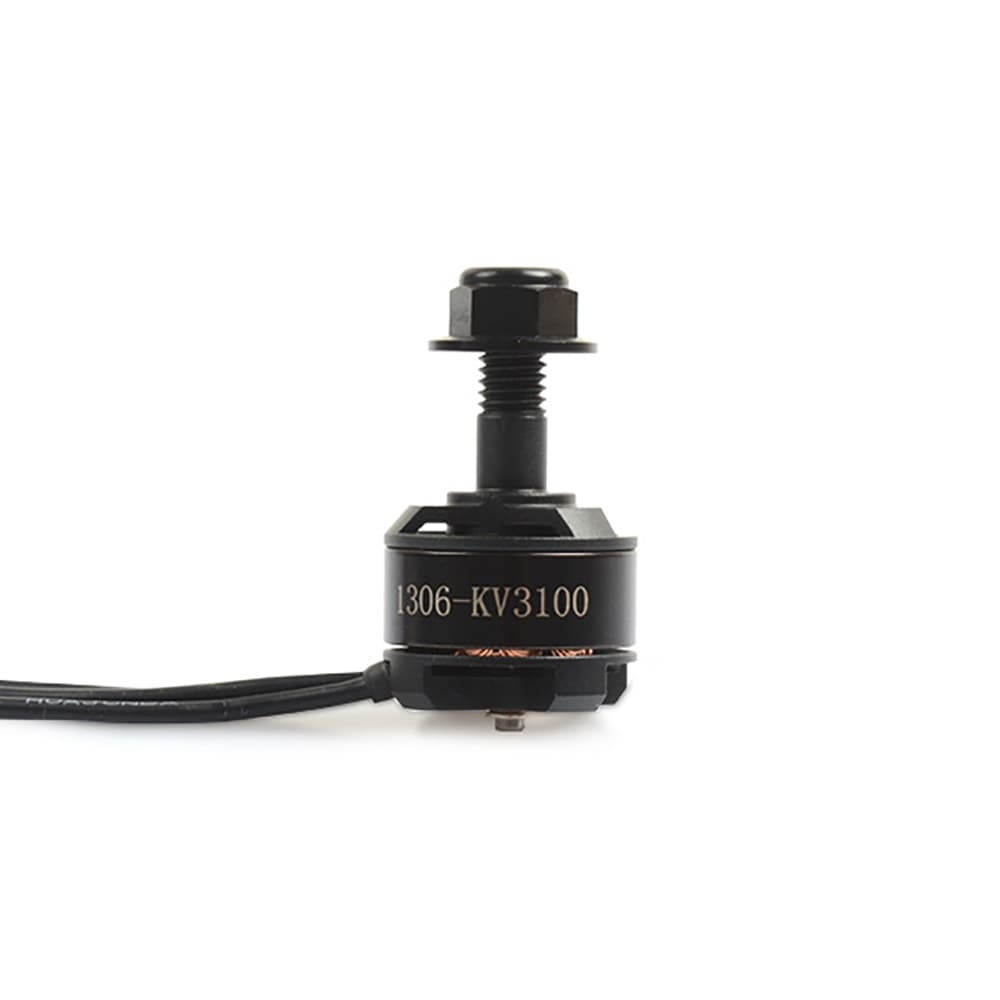

Motor:
Model: 1306
KV: 3100
Operating voltage: 2 - 4S
Shaft Diameter: M5
Maximum tension: 200g
Compatible with 140 - 160mm drones
F3 Flight Controller
MCU: STM32F303
IMU: MPU6000
Built-in LC filter: yes
Integrated OSD: yes
Buzzer: support
LED strip: support
Compatible receiver: DSM2 / PPM / SBUS
4-in-1 BLHeli - S ESC
Processor: EFM8BB21
Driver: 3-in-1 IC driver
Continuous current: 4 x 20A
Burst current: 4 x 25A ( up to 5s )
Motor:
Model: 1306
KV: 3100
Operating voltage: 2 - 4S
Shaft Diameter: M5
Maximum tension: 200g
Compatible with 140 - 160mm drones
Specification
Custom |
|
|---|---|
General |
Type: Flight Controller,ESC,Antenna,Motor |
Dimension and Weight |
Package weight: 0.0600 kg
Package size (L x W x H): 11.00 x 11.00 x 3.00 cm / 4.33 x 4.33 x 1.18 inches |
Package Contents |
Package Contents: Motor x 4, ESC x 4, F3 Flight Controller x 1, Transmitter x 1 |
