Description:

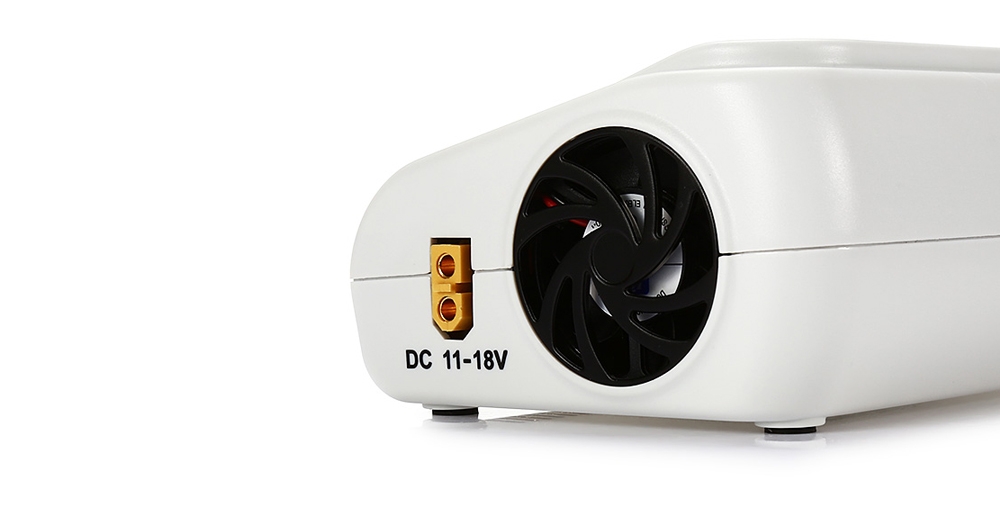

Ultra Power UP100AC Touch charger can be used worldwide with its auto switching power supply, compatible with 100 - 240V. It can also be powered by DC power, allowing it to be used out in the field when a wall outlet is not available. It has a high 100W max output! The charger can also be used as a power supply to power other devices, up to 120W from the DC port! It's a multi-chemistry charger so it can properly charge Li-Po, Li-Hv, Li-Ion, Li-Fe, NiMH, Ni-Cd and Pb ( lead acid ) batteries. It has a built in balancer for Lithium type batteries. It includes temperature sensor port and PC link port. As an added bonus, the charger has a 5V 2.1A USB port built-into it to power and recharge your cell phone, tablet, etc.
Main Features:
Convenience:
The charger is quite compact with only 135 x 95 x 61mm, 0.44kg. So it can be stored in your pit bag or box quite easily! The charger also features Li-Po balance charge, Li-Po fast charge, Li-Po storage, and Li-Po discharge modes.
Power Supply:
The charger can be used to power other DC devices such as chargers, lathes, lights, etc. It puts out a whopping 120W of power! Simply plug the charger into the wall and use the DC port on the right side of the charger to power your device.
Reliability:
Ultra Power is known for their great reliability, we use the best internal components and circuitry available to create a long lasting products.
Lithium Battery Meter:
Check the voltage of a lithium battery's cells when plugged into the balance port. The screen will provide a read out of each cell's voltage, the total pack voltage, as well as the highest and lowest cells.
Battery Memory:
You can program and store up to 10 different types of battery settings. Then simply load the program to start charging using your stored battery settings.
Specifications:
Input voltage: AC 100 - 240V
DC 11.0 - 18.0V
Charge power: Max to 100W
Discharge power: Max to 10W
Charge current: 0.1 - 10.0A
Discharge current: 0.1 - 5.0A
Li-Io / Li-Po / Li-Fe / Li-Hv cell count: 1 - 6 series
Ni-Cd / NiMH battery cell count: 1 - 15cells
Pb battery voltage: 2V - 20V ( 1 - 10cells )
Weight: 0.44kg
Dimension: 135 x 95 x 61mm
High-light:
1) Terminal voltage control between 4.18V to 4.30V.
2) Delta-peak sensitivity ( NiMH / Ni-Cd ).
3) Individual cell balancing charge and discharge.
4) Battery meter function.
5) One button control factory setting.
6) Data storage ( 10 profiles in memory ).
7) USB port for PC control and firmware upgrade.
Main Features:
Convenience:
The charger is quite compact with only 135 x 95 x 61mm, 0.44kg. So it can be stored in your pit bag or box quite easily! The charger also features Li-Po balance charge, Li-Po fast charge, Li-Po storage, and Li-Po discharge modes.
Power Supply:
The charger can be used to power other DC devices such as chargers, lathes, lights, etc. It puts out a whopping 120W of power! Simply plug the charger into the wall and use the DC port on the right side of the charger to power your device.
Reliability:
Ultra Power is known for their great reliability, we use the best internal components and circuitry available to create a long lasting products.
Lithium Battery Meter:
Check the voltage of a lithium battery's cells when plugged into the balance port. The screen will provide a read out of each cell's voltage, the total pack voltage, as well as the highest and lowest cells.
Battery Memory:
You can program and store up to 10 different types of battery settings. Then simply load the program to start charging using your stored battery settings.
Specifications:
Input voltage: AC 100 - 240V
DC 11.0 - 18.0V
Charge power: Max to 100W
Discharge power: Max to 10W
Charge current: 0.1 - 10.0A
Discharge current: 0.1 - 5.0A
Li-Io / Li-Po / Li-Fe / Li-Hv cell count: 1 - 6 series
Ni-Cd / NiMH battery cell count: 1 - 15cells
Pb battery voltage: 2V - 20V ( 1 - 10cells )
Weight: 0.44kg
Dimension: 135 x 95 x 61mm
High-light:
1) Terminal voltage control between 4.18V to 4.30V.
2) Delta-peak sensitivity ( NiMH / Ni-Cd ).
3) Individual cell balancing charge and discharge.
4) Battery meter function.
5) One button control factory setting.
6) Data storage ( 10 profiles in memory ).
7) USB port for PC control and firmware upgrade.
Specifications
General |
Type: Balance Charger |
|---|---|
Dimension and Weight |
Product weight: 0.404 kg
Package weight: 0.750 kg Product size (L x W x H): 6.10 x 9.50 x 14.00 cm / 2.4 x 3.74 x 5.51 inches Package size (L x W x H): 25.00 x 12.00 x 9.00 cm / 9.84 x 4.72 x 3.54 inches |
Package Contents |
Package Contents: 1 x Balance Charger, 1 x Power Line, 1 x T Plug Cable, 1 x English Manual |
