Max speed to 120km / h
The racer can rotate, roll, and flip freely
Motion following shooting with high speed flight
Variable pitch propeller mainly cooperate with high-speed flight and optimum engine speed
Define the flight control parameters freely with the open-source system CC3D

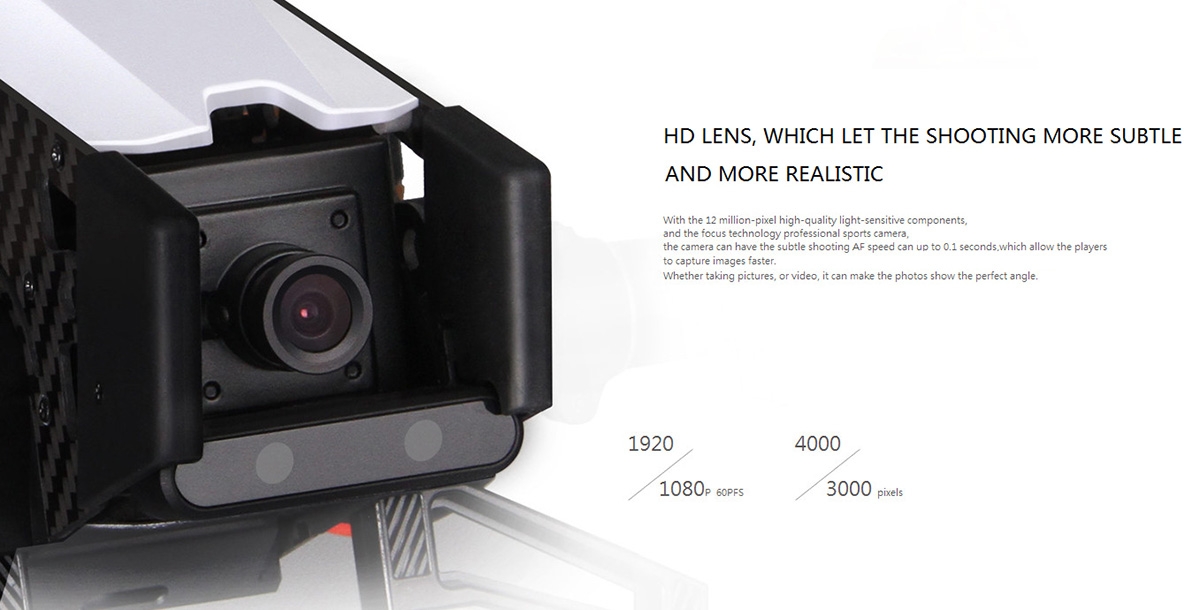

With the 12 million-pixel camera, the subtle shooting AF speed can up to 0.1 second

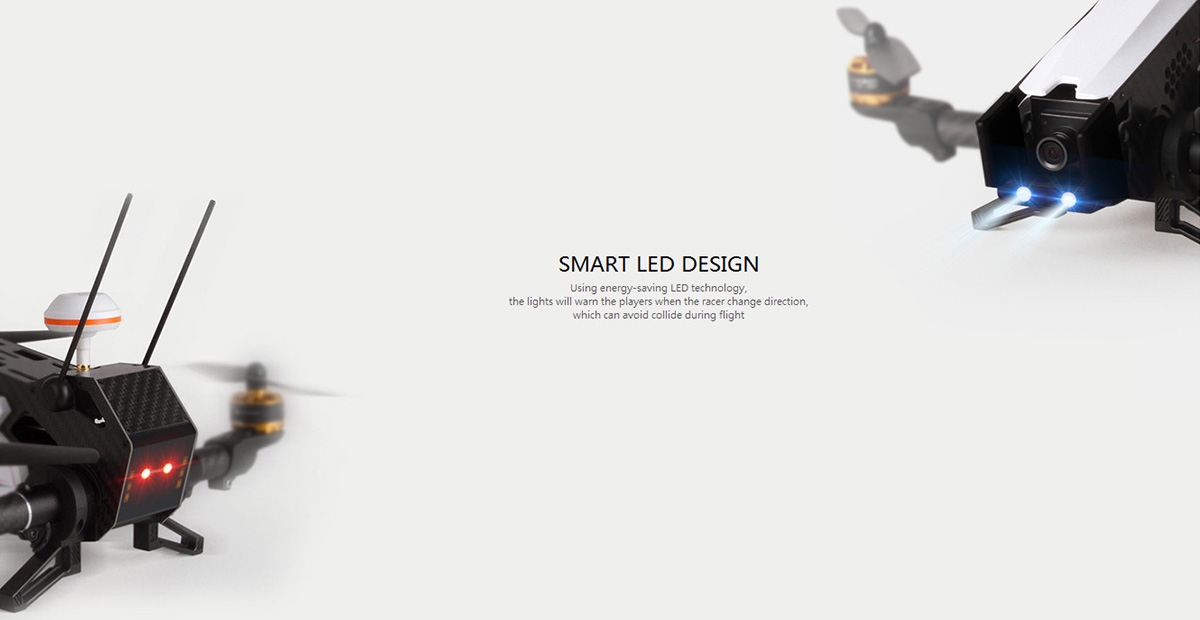

The LED lights will warn the players when the racer change direction

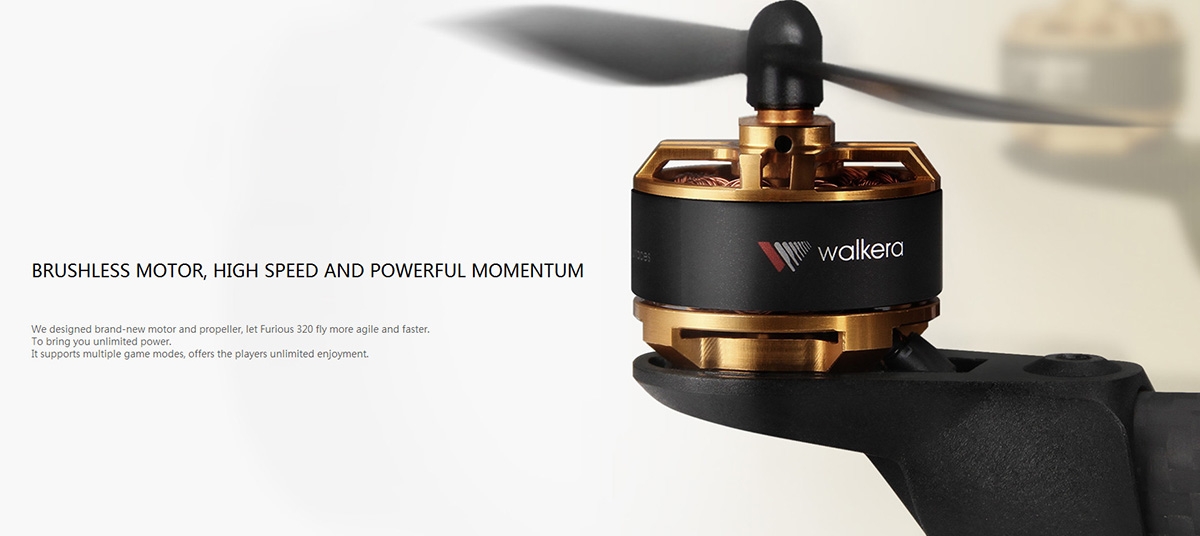

Brand new brushless motors bring you unlimited power
Come with OSD module
It supports battle bode / racing mode / collection mode / teaching mode / challenge mode
Warm Prompt:
BNF version means transmitter is not included. The black DEVO 10 / white DEVO 7 and tablet in pictures are just for showing related functions.
The channel and specific functions are according to transmitter.
You can extra purchase a 2.4G transmitter like DEVO 10 / DEVO 7.
Supports FPV function but need extra purchase FPV system parts.
You can download the spare English manual here.
Specifications:
Brand: Walkera
Item No. : Furious 320C
Version: BNF Version
Charging Time: 2.5h
Flying Time: About 10min
Frequency: 2.4GHz
Gyro: Built-in 6 Axis Gyro
Camera: 12-mega-pixel / 1080P
Control Distance: About 1000m
Copter Battery: 14.8V 2600mAh 25C 4S Battery
Control Battery: 8 x 1.5V AA Battery ( Not Included )
Function: Up / Down, Turn Left / Right, Forward / Backward, Left / Right Sideward Flight, Automatic Return, Rollover, Film and Shoot, with Light
Specification
General |
Brand: Walkera
Type: Frame Kit,RC Simulators Features: Radio Control Functions: 3D rollover,Automatic Return,Camera,Forward/backward,Roll,Sideward flight,Turn left/right,Up/down,With light Night Flight: Yes Built-in Gyro: Yes Material: Electronic Components,Plastic Kit Types: BNF |
|---|---|
Connectivity |
Remote Control: Radio Control
Channel: No Transmitter Mode: No Transmitter Detailed Control Distance: 1000m Transmitter Power: 8 x 1.5V AA battery(not included) Model Power: Built-in rechargeable battery |
Battery |
Flying Time: 9~10mins |
Dimension and Weight |
Package weight: 2.600 kg
Package size (L x W x H): 56.00 x 12.50 x 38.00 cm / 22.05 x 4.92 x 14.96 inches |
Package Contents |
Package Contents: 1 x Drone, 1 x Charger, 1 x Battery, 1 x 1080P 60FPS Camera, 1 x English Manual |
Aircraft
Main Rotor Dia. | 167mm |
Overall ( L x W x H ) | 328 x 254 x 118mm |
Weight | 810g |
Remote Controller | Not Included |
Receiver | DEVO - RX712 |
Main Controller | FCS - FURIOUS 320 ( C ) |
Emitter | TX5821 ( FCC ) / TX5820 ( CE ) |
OSD | FURIOUS 320 OSD ( C ) |
Brushless Motor | WK - WS - 28 - 015 ( CW / CCW ) |
Brushless ESC | FURIOUS 320 ( CW / CCW ) |
Battery | 14.8V 2600mAh 25C 4S Li-Po |
Flight Time | About 10min |
Working Temperature | -10degree to 40degree |
Camera ( 1920 x 1080P ï¼
Video Resolution | 1920 x 1080P 60FPS |
Micro SD card | Max 32G |
Video Format | MOV |
Photo | 4000 x 3000 Pixels |
Photo Format | JPG |
Power Input | DC 5V |
Camera ( 800TVL )
Horizontal Resolution | 800TVL |
System Committee | PAL / NTSC |
Video Out | 1.0Vp - p / 75 Omega |
Power Input | DC 12V |
TX5821 ( FCC ) / TX5820 ( CE ) Emitter
TX5821 ( FCC ) Bind B section | 4 channels |
TX5820 ( CE ) B section | 8 channels |
TX5821 ( FCC ) output power | no more than 200mW |
TX5820 ( CE ) output power | no more than 25mW |
