The Features:
Auto search channel
7 HD widescreen display
Sppport PAL/NTSC video format
7V and 24V DC wide voltage power supply
Compatible with most 5.8G AV transmitter
Specifications:
Model: T - RS2000A
Frequency: 5.8 G
Channel: 32 ch
7 inch Screen size:
Video format: PAL/NTSC
Resolution: 800 x 480
45 db SNR:
7 Working voltage: DC 24 v
The Working current: 0.7 A / 12 v
The Receive sensitivity: - 92 DBM
Screen brightness: 380 CD / m2 (Adjustable)

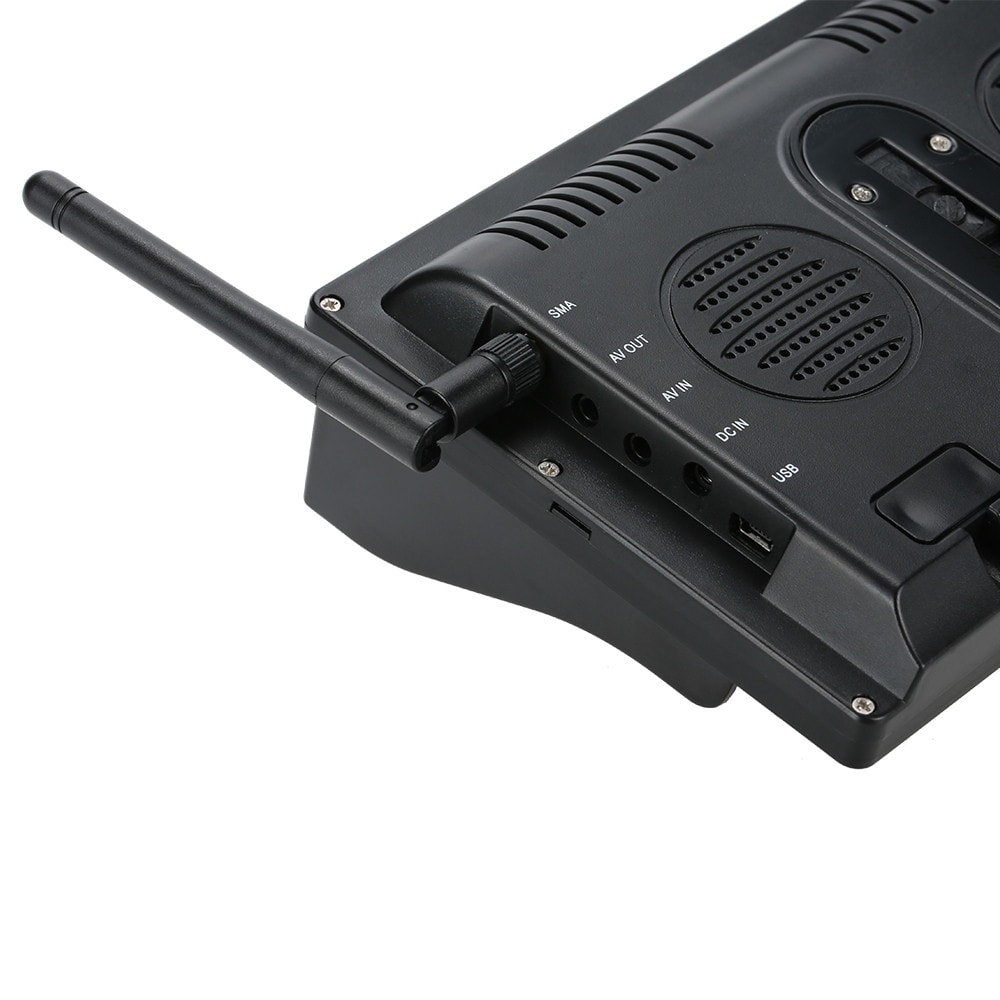

Can Antenna: be used SMA connector - K
Size: 173 x 116 x 59mm
Weight: 308 g
Frequency:
CH1:5865MH, 5845MH, 5825MH, 5805MH, 5785MH, 5745MH, 5725MH
CH2:5733MH, 5752MH, 5771MH, 5790MH, 5809MH, 5828MH, 5847MH, 5866MH
CH3:5705MH, 5685MH, 5665MH, 5645MH, 5885MH, 5905MH, 5925MH, 5845MH
CH4:5740MH, 5760MH, 5780MH, 5880MH, 5820MH, 5840MH, 5860MH
Auto search channel
7 HD widescreen display
Sppport PAL/NTSC video format
7V and 24V DC wide voltage power supply
Compatible with most 5.8G AV transmitter
Specifications:
Model: T - RS2000A
Frequency: 5.8 G
Channel: 32 ch
7 inch Screen size:
Video format: PAL/NTSC
Resolution: 800 x 480
45 db SNR:
7 Working voltage: DC 24 v
The Working current: 0.7 A / 12 v
The Receive sensitivity: - 92 DBM
Screen brightness: 380 CD / m2 (Adjustable)
Can Antenna: be used SMA connector - K
Size: 173 x 116 x 59mm
Weight: 308 g
Frequency:
CH1:5865MH, 5845MH, 5825MH, 5805MH, 5785MH, 5745MH, 5725MH
CH2:5733MH, 5752MH, 5771MH, 5790MH, 5809MH, 5828MH, 5847MH, 5866MH
CH3:5705MH, 5685MH, 5665MH, 5645MH, 5885MH, 5905MH, 5925MH, 5845MH
CH4:5740MH, 5760MH, 5780MH, 5880MH, 5820MH, 5840MH, 5860MH
Specification
General |
FPV Equipments: AV Receiver
Functions: HDMI |
|---|---|
Dimension and Weight |
Product weight: 0.3080 kg
Package weight: 0.4300 kg Product size (L x W x H): 17.30 x 11.60 x 5.90 cm / 6.81 x 4.57 x 2.32 inches Package size (L x W x H): 23.30 x 13.00 x 6.50 cm / 9.17 x 5.12 x 2.56 inches |
Package Contents |
Package Contents: 1 x T - RS2000A 7 inch Monitor DE FPV, 1 x Antena, 1 x Alimentacao Cabo DE |
