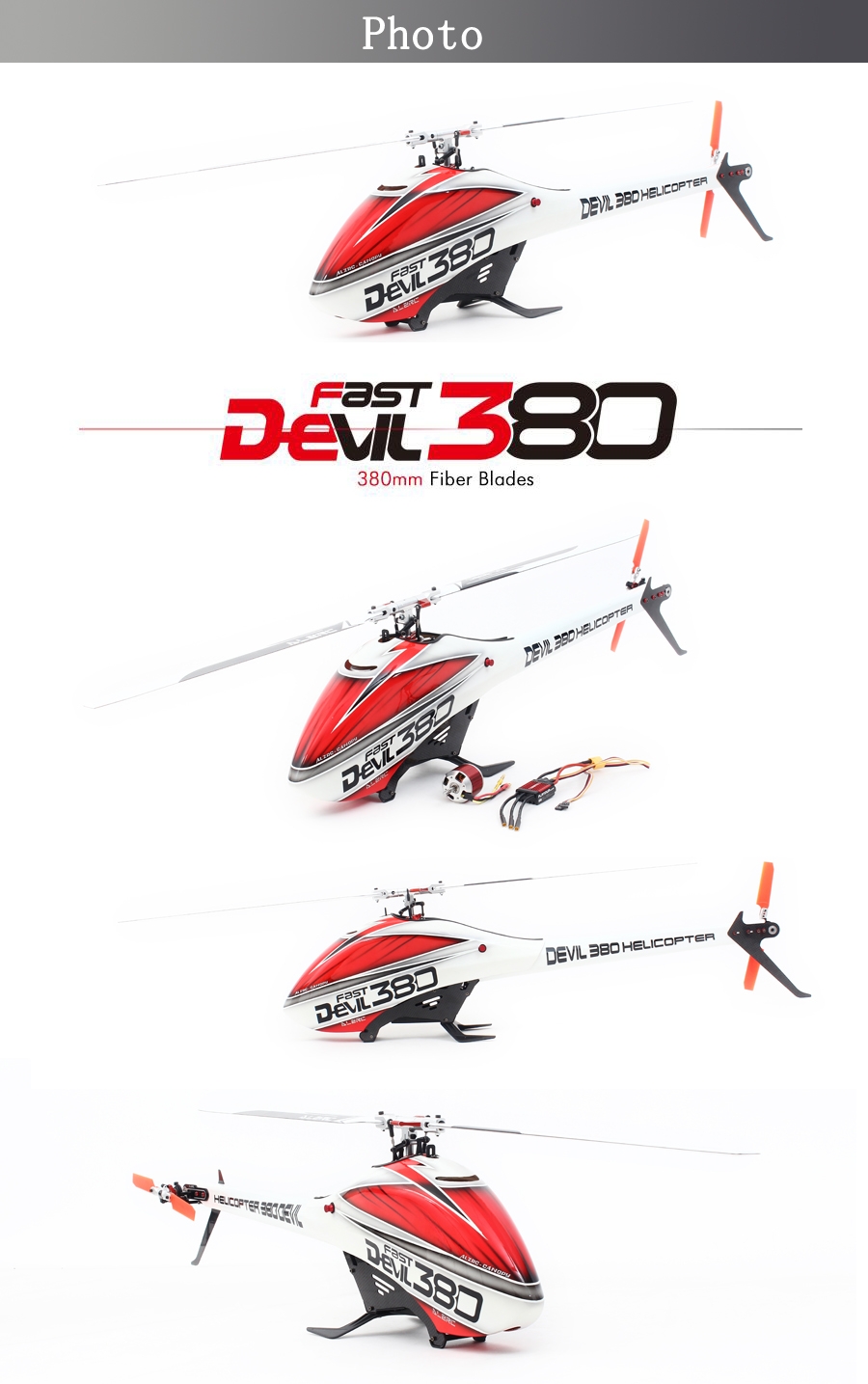

ALZRC Devil 380 FAST Three Blade Rotor TBR Helicopter Kit - 289.99 €

The 3-bladed rotor system not only extends the original flight characteristics, but also improves its stability, lift efficiency and efficiency of cyclic pitch. High strength stainless steels are applied to the spindle shafts. The axis is processed by automatic lathe with precision finishing, perfectly coordinated with the rotor head. It will definitely offer you an amazing performance.

Description:

The 3-bladed rotor system not only extends the original flight characteristics, but also improves its stability, lift efficiency and efficiency of cyclic pitch. High strength stainless steels are applied to the spindle shafts. The axis is processed by automatic lathe with precision finishing, perfectly coordinated with the rotor head. It will definitely offer you an amazing performance.
Equipped with FBL ball linkage rod,makes more convenient to adjust.
New improved 1.5mm carbon fiber compound main frame,enhances the fuselage strength.
Over 90% of screw from Taiwan YFS 12.9 Class inner hexagon screw with red aluminium screw washer.
All-metal five-point connect motor mount.
All-metal swashplate servo mount,accurate fixed position,apply to most commercially micro swashplate servo.
Improved and thickened carbon ficer tail boom.
With all-metal tail rotor control assembly.
With metal tail belt idler.
With carbon fiber landing skid.

Specification:

Main rotor diameter: 820mm
Main blade length: 360mm
Tail rotor diameter: 196mm
Tail blade length: 70mm
Main shaft diameter: 8mm
Tail shaft diameter: 5mm
Weight(KIT): 1070g

Radio transmitter and electronic equipment required for assembly:

1.Transmitter: 6-channel or more,helicopter system
2.Receiver: 6-channel or more
3.Pitch Gauge: Digital Pitch Gauge
4.Battery: 6S/22.2V 1600~2600mAh Li-Po Battery
5.Motor: RMC-BL3120 1000kv 6S Brushless Motor(5mm spindle) x 1
6.ESC: 50~80A Brushless ESC x 1
7.Swashplate Servo: Micro Digital Metal Servo x 3
8.Tail-lock Servo: Medium Digital Metal Servo x 1
9.Gyroscope: Flybarless Gyro System x 1
10.Other: Plug & Assemble Tools Set

Packaging:

Devil 380 FAST TBR KIT x 1
