Main Features:

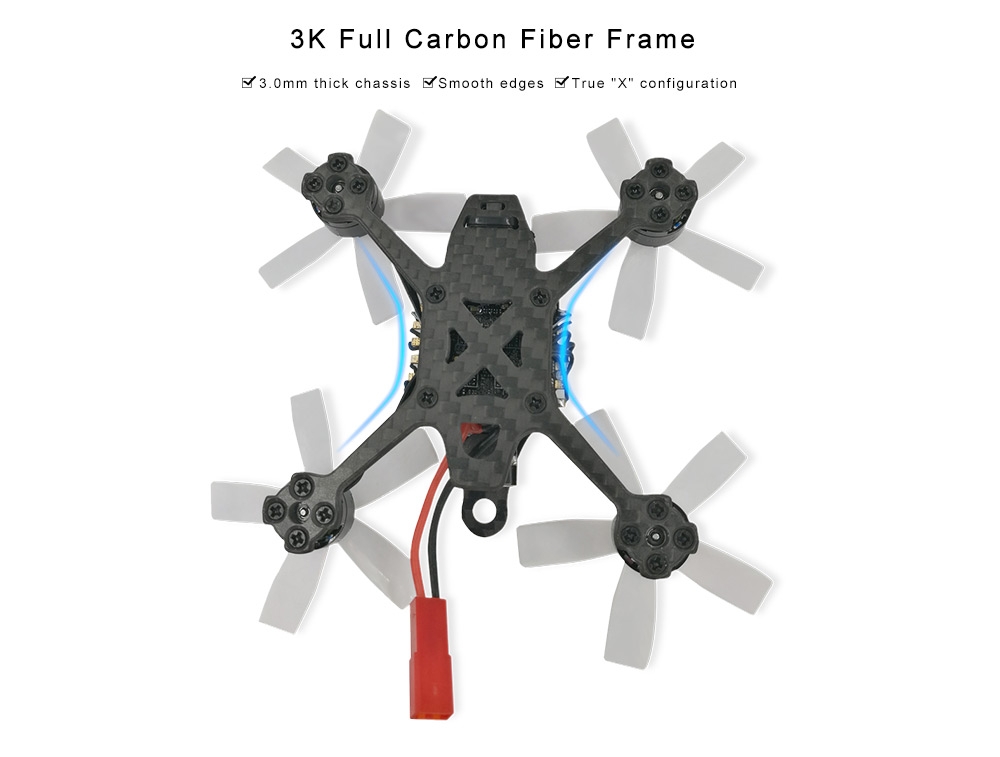

- True "X" carbon fiber frame, perfectly symmetrical, with 3mm thickness and smooth edges
- Mini F3 flight control system with OSD supports PPM / SBUS / DSM2 / DSMX receivers
- Superior operation with 4-in-1 BLHeli - S 20A ESC which uses the latest DShot signals

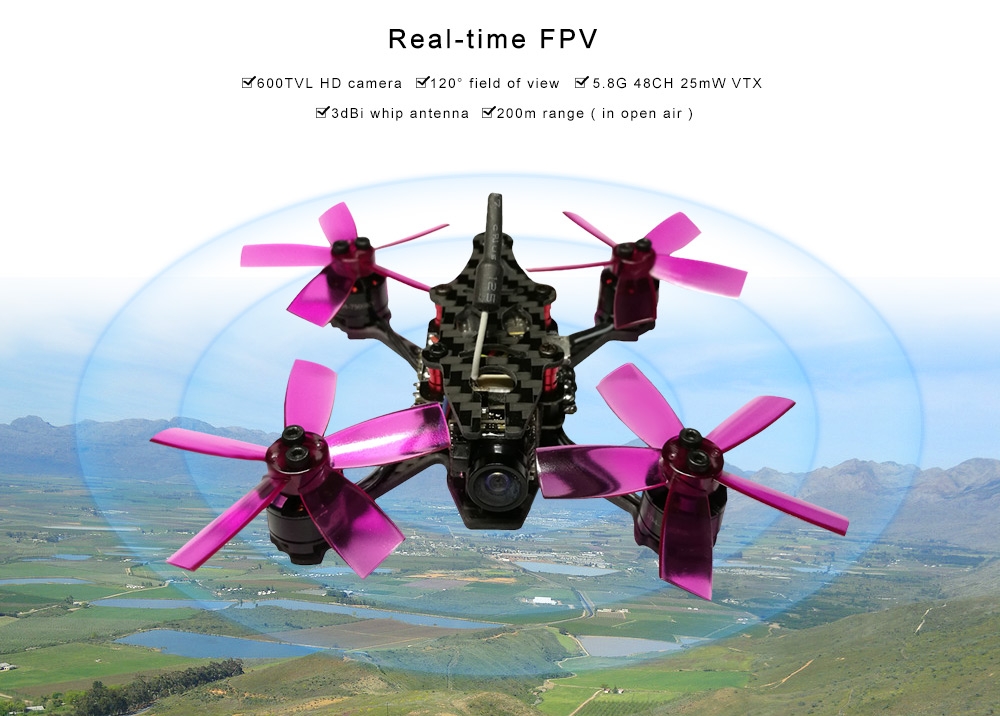

- Outstanding 600TVL HD CMOS camera, extremely sensitive to light, offers you high-quality image
- 5.8G real-time image transmission, 48CH wide coverage within 200m range

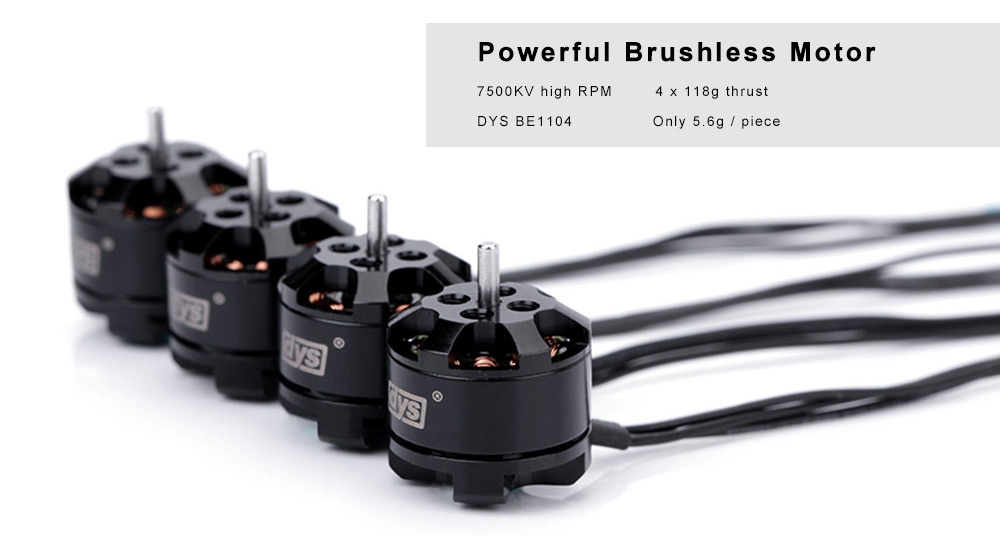

- Powerful DYS BE1104 brushless motor. Each can generate up to 118g thrust

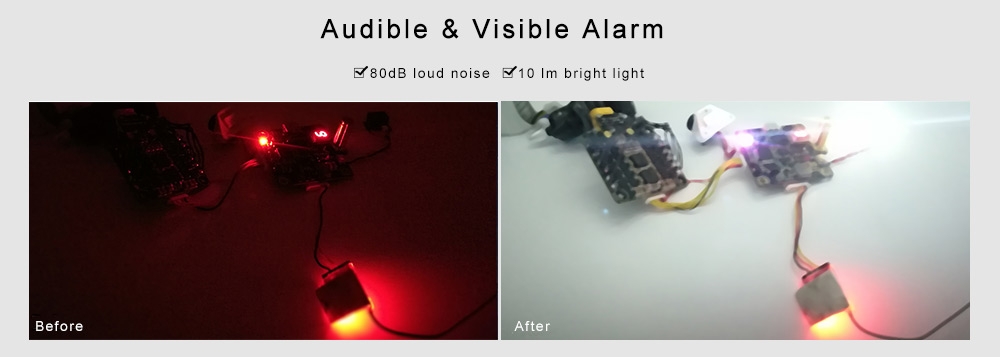

- The alarm can give out 80dB loud noise and 10 lm strong light to keep track of your UAV
- Well-balanced and suitable for flying indoors and outdoors thanks to the five-blade propellers
Specifications:
Flight control system: Tower Mini F3
3K carbon fiber frame thickness: 3mm
Brushless motor: DYS BE1104 7500KV
Brushless ESC: 4-in-1 BLHeli - S 20A
Propeller: 1935 five-blade, 50mm long
Video transmitter: 5.8G 48CH 25mW
Camera: 600TVL HD CMOS
Field of view: 120 degree
Image transmission range: 200m
Antenna gain: 3dBi
Alarm: audible ( 80dB ); visible ( 10 lm )
Power supply: 7.4V 300mAh 25C LiPo ( included )
Note:
There are different colors of the propellers, which is subject to stock availability.
Although the ESC supports 2 - 4S LiPo, the flight controller only supports 2 - 3S LiPo.
Specification
General |
Type: Frame Kit
Version: PNP |
|---|---|
Motor |
Model: BE1104
Motor Type: Brushless Motor KV: 7500 Shaft Diameter: 1.5mm Motor Dimensions: 12.5 x 14mm ( diameter x height ) Maximum Thrust: 118g / piece |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 600TVL ( horizontal resolution )
Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600 Continuous Current: 20A |
Battery |
Battery (mAh): 300mAh
Battery Coulomb: 25C Flying Time: 4mins |
Dimension and Weight |
Product weight: 0.0730 kg
Package weight: 0.1660 kg Product size (L x W x H): 11.50 x 11.50 x 4.00 cm / 4.53 x 4.53 x 1.57 inches Package size (L x W x H): 17.50 x 12.50 x 6.00 cm / 6.89 x 4.92 x 2.36 inches |
Package Contents |
Package Contents: 1 x Carbon Fiber Frame, 1 x Mini F3 Flight Control System, 4 x Motor, 1 x FPV Camera, 8 x Propeller, 1 x 7.4V 300mAh 25C LiPo Battery, 1 x Alarm |
