Main Features:
- CTW Mini flight controller consists of STM32 32-bit processor, high-precision 6-axis gyroscope
- Intelligent lighting system for transmitter error, steering, and throttle

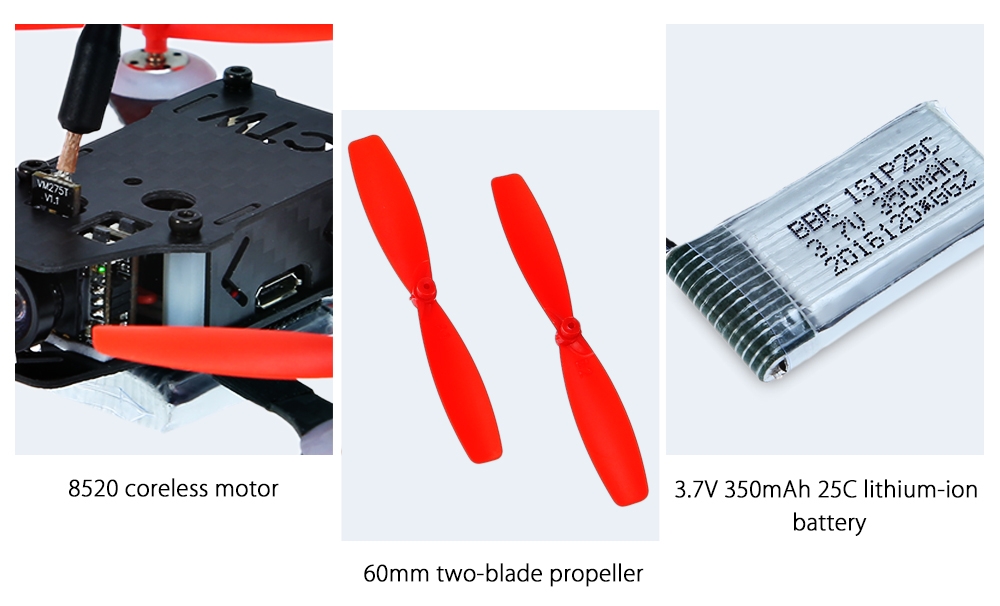

- 60km/h high speed ( no wind ) provided by the 8520 coreless motor and 60mm two-blade propeller
- Buzzer gives out low voltage alarm and loss of signal alarm
- 5.8G real-time image transmission, 520TVL HD camera, 32-channel coverage, 200m effective FPV distance ( in open air )

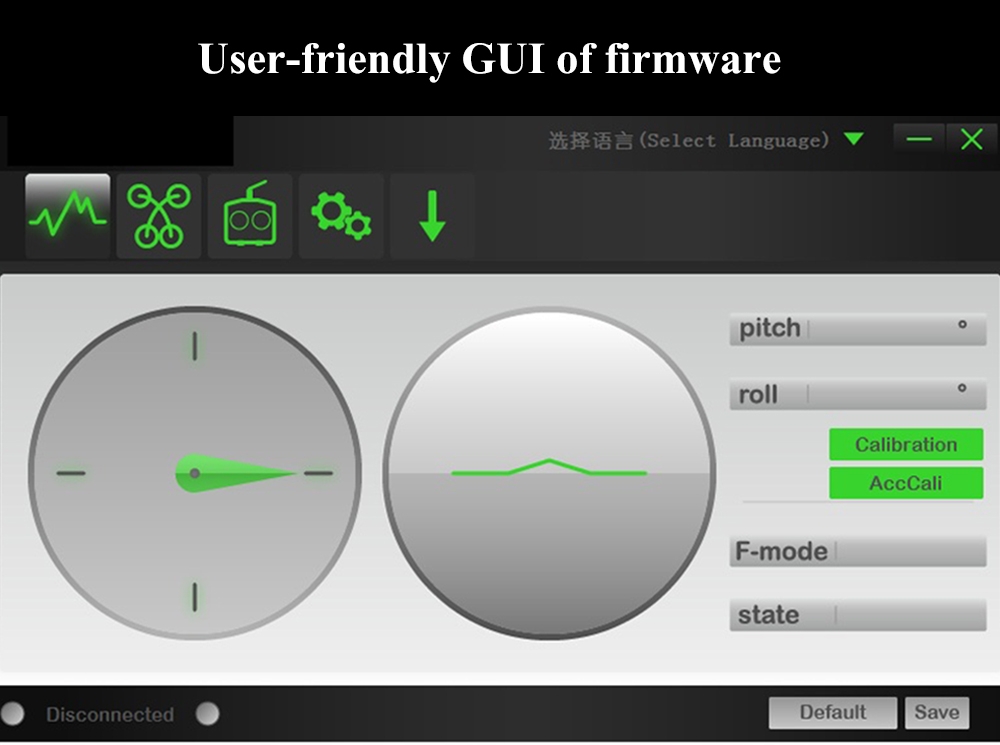

- Easy to adjust parameters via the user-friendly GUI of the firmware
Specifications:
Model: Mini 105

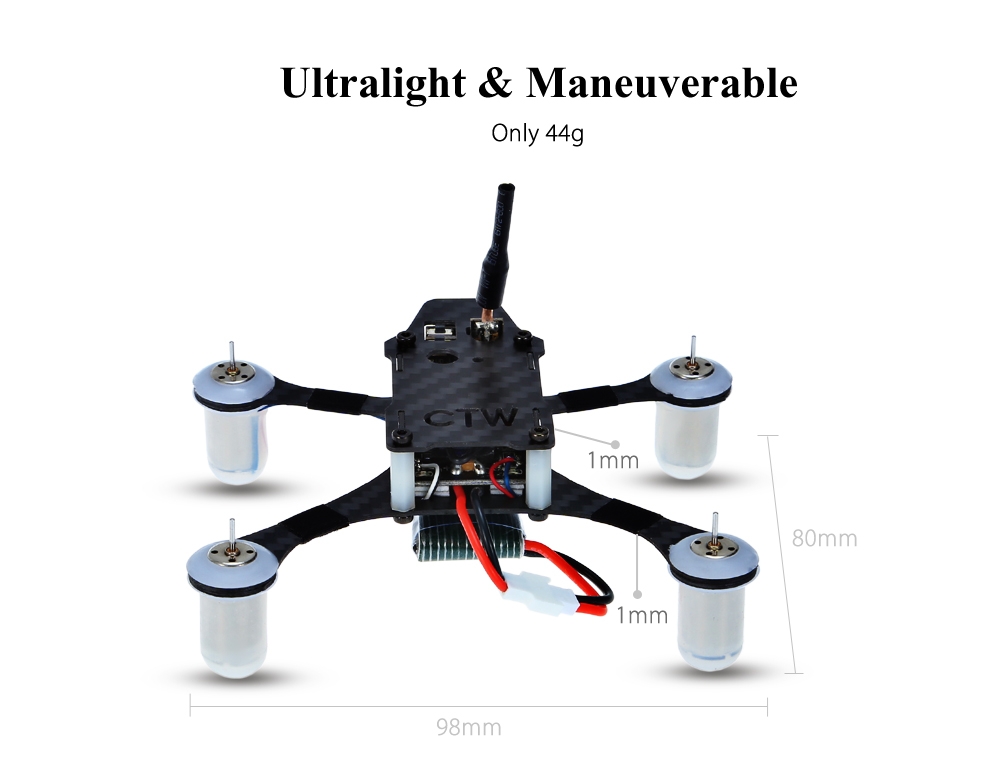

Wheelbase: 105mm
Weight: 44g ( not including propeller, battery )
Max. flying speed: 60km/h
Flight controller: CTW MINI
Battery: 9g, 3.7V 350mAh 25C lithium-ion battery ( included )
Buzzer: for low voltage alarm, LOS ( loss of signal ) alarm
Transmitter debugging: requires 6-channel transmitter - Channel 5 for mode selection, Channel 6 for lock / unlock
Firmware language: English, Chinese
Click here to download the firmware and to know more about the flight controller.
Specification
General |
Brand: CTW
Type: Frame Kit Version: BNF |
|---|---|
Motor |
Model: 8520
Motor Type: Brushed Motor CW / CCW: CCW,CW |
Camera |
Video Resolution: 520TVL |
Battery |
Battery (mAh): 3.7V 350mAh 25C lithium-ion ( included )
Battery Voltage: 1S Battery Coulomb: 25C |
Dimension and Weight |
Product weight: 0.044 kg
Package weight: 0.137 kg Product size (L x W x H): 8.00 x 9.80 x 3.30 cm / 3.15 x 3.86 x 1.3 inches Package size (L x W x H): 20.50 x 10.50 x 4.00 cm / 8.07 x 4.13 x 1.57 inches |
Package Contents |
Package Contents: 1 x Drone, 8 x 60mm Propeller, 1 x 3.7V 350mAh 25C Lithium-ion Battery, 1 x USB Charging Cable |
