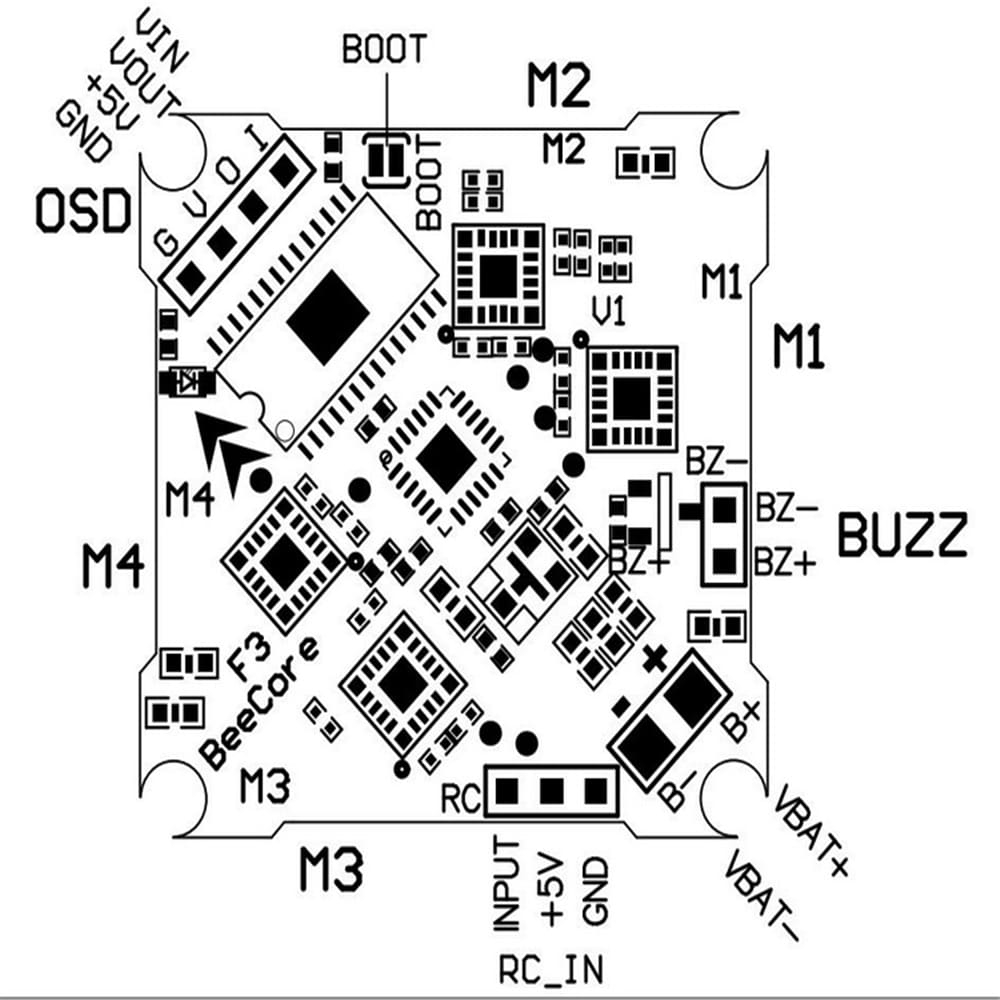

Flight controller:
Firmware: betaflight-3.2.0
CPU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Power supply: 1S battery input (DC 3.6-4.2V)
BEC: Built-in 5V / 0.5A step-up circuit
Receivers: PPM, SBUS, IBUS, For spektrum For DSM2 / For DSMX, 1024/2048.
Built-in OSD interface
Active buzzer interface (with buzzer)
Support BLheli suite ESC programming
Support DHSOT ESC
Built-in voltage detection, alarm
Board size: 28.5 x 28.5MM
Screw hole spacing: 36 x 36MM diameter 3.0MM
Board weight: 2.8 g
ESC:
Power supply: 1S
Current: 5A continuous Max 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O-L-5-REV16-6.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
Package Included:
1 X F3 V1 Flight Controller Built-in OSD Integrated 5A Blheli-S DSHOT Brushless ESC
1 X Buzzer
1 X Power cable
Firmware: betaflight-3.2.0
CPU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Power supply: 1S battery input (DC 3.6-4.2V)
BEC: Built-in 5V / 0.5A step-up circuit
Receivers: PPM, SBUS, IBUS, For spektrum For DSM2 / For DSMX, 1024/2048.
Built-in OSD interface
Active buzzer interface (with buzzer)
Support BLheli suite ESC programming
Support DHSOT ESC
Built-in voltage detection, alarm
Board size: 28.5 x 28.5MM
Screw hole spacing: 36 x 36MM diameter 3.0MM
Board weight: 2.8 g
ESC:
Power supply: 1S
Current: 5A continuous Max 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O-L-5-REV16-6.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
Package Included:
1 X F3 V1 Flight Controller Built-in OSD Integrated 5A Blheli-S DSHOT Brushless ESC
1 X Buzzer
1 X Power cable
Specification
Custom |
|
|---|---|
General |
Type: Flight Controller |
Dimension and Weight |
Package weight: 0.0800 kg
Package size (L x W x H): 5.00 x 5.00 x 1.00 cm / 1.97 x 1.97 x 0.39 inches |
Package Contents |
Package Contents: 1 x F3 V1 Flight Controller Built-in OSD Integrated 5A Blheli-S DSHOT Brushless ESC, 1 x Buzzer, 1 x Power cable |
