Main Features:
- 3K full carbon fiber, true "X" configuration, 200mm wheelbase, 4mm thick chassis

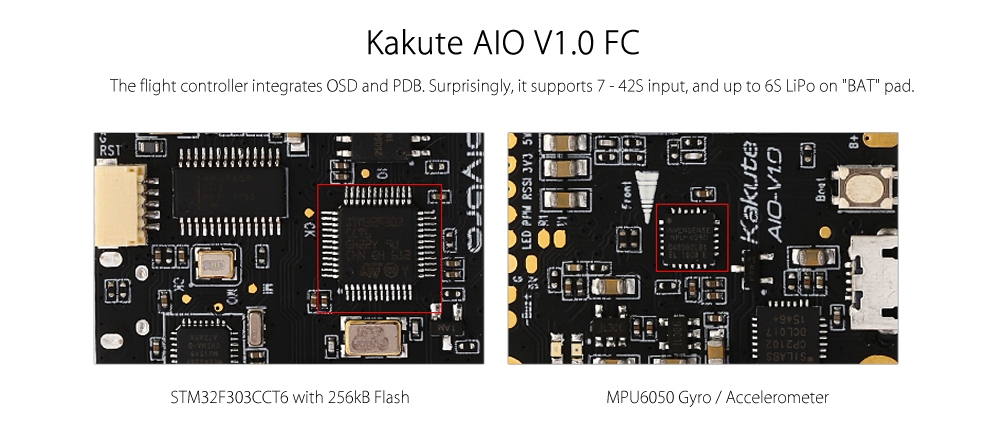

- Kakute AIO V1.0 main board with the integration of flight controller, OSD and PDB
- Integrated miniOSD, MWOSD firmware preloaded; highly customizable OSD interface

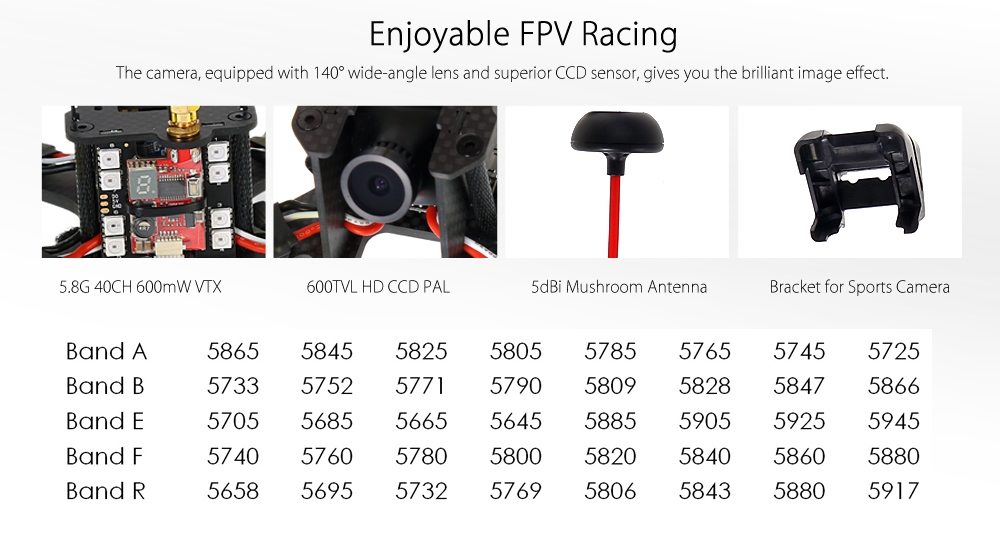

- 1/3 Super HAD II CCD, PAL, 600TVL camera, 2.5mm lens, 140-degree FOV
- 5.8G 600mW image transmission, 40-channel coverage including RaceBand
- 7 - 42V input voltage, 2oz copper PCB ensuring the 120A maximum continuous current
- Reinforced solder pads of trouble-free direct soldering, extremely low profile design
- BetaFlight ready; 3-color LED board controlled by LED strip signal
- Filtered 5V 800mA ( 3.3V 150mA where applicable ) to power peripherals such as GPS, receiver, blackbox etc.
Specifications:
STM32F303CCT6 32-bit processor with 256KB flash
MPU6050 gyroscope / accelerometer
ATmega328P with Adruino Bootloader ( minimOSD )
Micro USB connector for programming

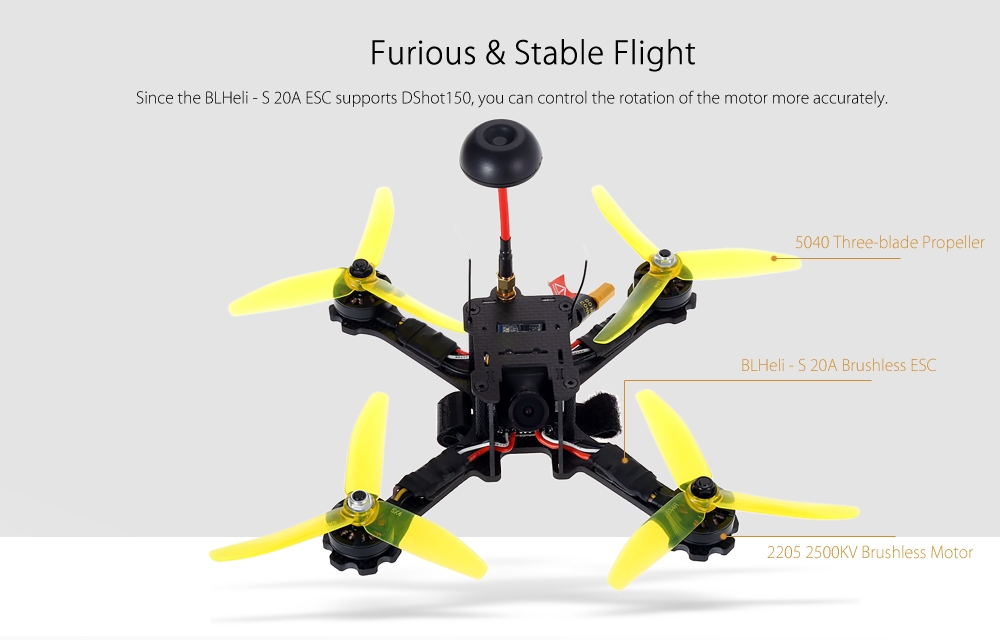

BLHeli - S 20A ESC supports 30A burst current, Oneshot125 and DShot150
2205 2500KV brushless motors
5040 3-blade propellers
Wheelbase: 200mm
Different Versions:
BNF: with FrSky 16CH receiver, compatible with TARANIS
PNP: without receiver
Specification
General |
Brand: FuriBee
Type: Frame Kit Version: BNF |
|---|---|
Motor |
Model: 2205
KV: 2500 CW / CCW: CCW,CW |
Camera |
Video Resolution: 600TVL
Video Standards: PAL Sensor: CCD Lens Diameter: 2.5mm |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,Oneshot125 Continuous Current: 20A Burst Current: 30A |
Dimension and Weight |
Product weight: 0.272 kg
Package weight: 0.729 kg Product size (L x W x H): 17.50 x 17.50 x 4.20 cm / 6.89 x 6.89 x 1.65 inches Package size (L x W x H): 31.00 x 31.00 x 8.00 cm / 12.2 x 12.2 x 3.15 inches |
Package Contents |
Package Contents: 1 x Drone ( with FrSky Receiver ), 4 x Spare Propeller, 1 x Mushroom Antenna, 1 x Camera Bracket, 1 x Battery Strap, 1 x English Quick Start Guide |
