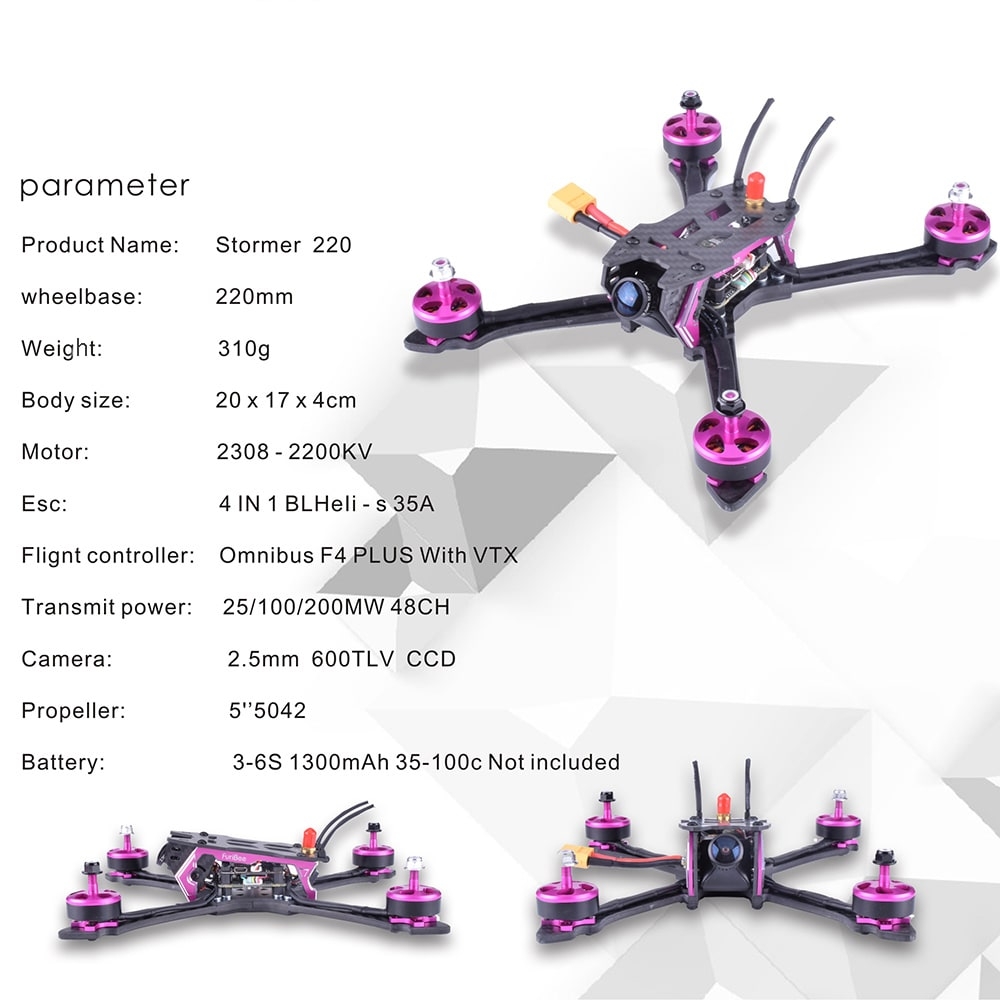

FuriBee Stormer 220mm FPV Racing Drone - BNF

Brief Introduction:
Featuring the brand new X-type carbon fiber frame, FuriBee Stormer 220 flies with higher maneuverability and looks more modern. CNC reinforced body, aerodynamic propellers and tightly fixed components allow 220 deliver breathtaking high-speed FPV racing. Easy, fun and safe to fly! Plus, it can be powered by 3 - 6S Lipo battery.

Specifications:
- Material: 3K carbon fiber frame
- Arm thickness: 4mm
- Wheelbase: 220mm
- Frame weight: 95g

Omnibus F4 PLUS Flight Controller:
- MCU: STM32F405RGT6
- Motion processing unit: MPU6000
- Integrated OSD chip: AT7456E
- Video transmitter: 5.8G 48CH 25MW / 100MW / 200MW
- Image transmission: IPEX-2 antenna connector
- Receiver port: DSMX, IBUS, PPM, SBUS
- LED_Strip port: yes
- LED buzzer module: yes
- Voide INPUT port: switchable from 5V to battery voltage; default input: 5V
- Supported micro SD card: included
- UART3 ports: TX3, RX3
- LC filter
- Built-in 5V 3A BEC

 Electric Speed Controller:
- 4 IN 1 BLHELI-S 35A 3-6S
- Communication protocol: Dshot, Oneshot, Multishot, PWM
- Firmware: BLHELI_S J_H_15_REV16_6

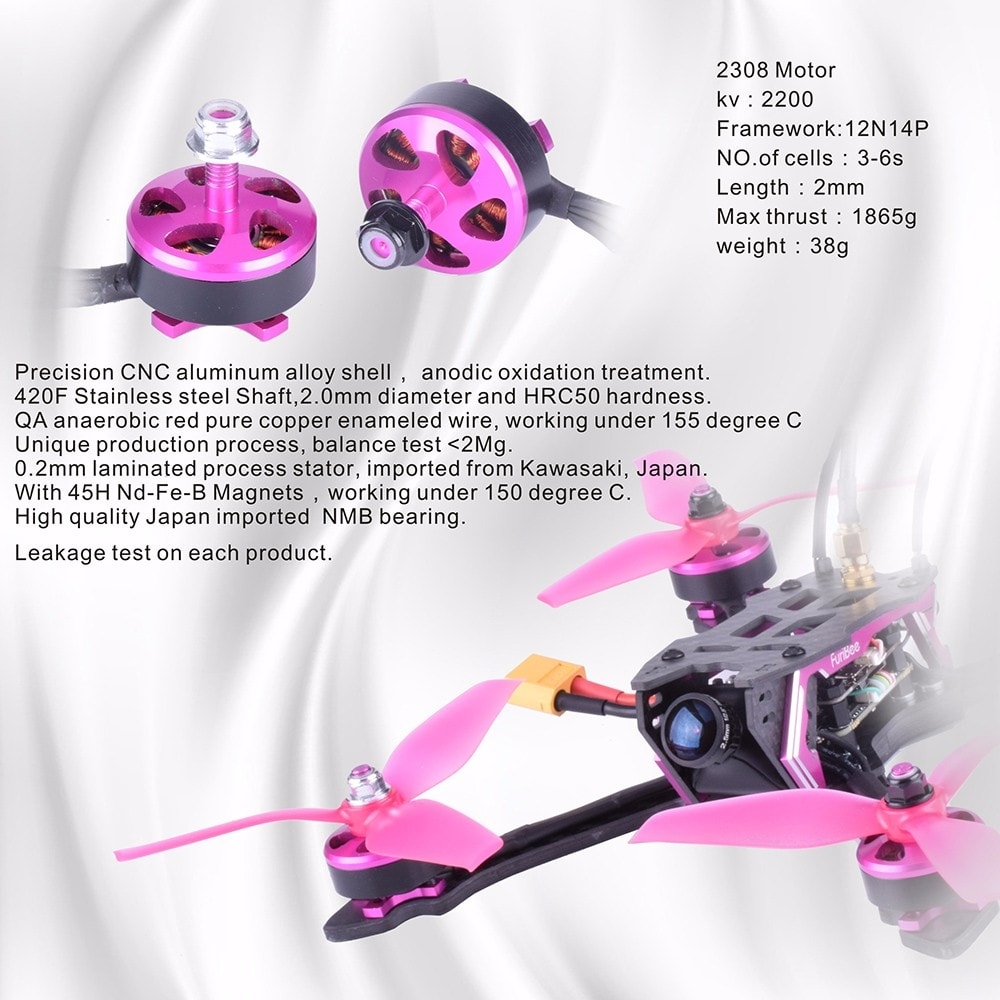

Brushless motor:
- Mode: FuriBee 2308
- KV: 2200KV
- Input voltage: 3-6S
- Maximum pulling force: 1865g

Camera:
- FuriBee HS1177 2.5mm 600TVL
- Lens: 2.5mm
- Wide camera: 130 degrees
- Sensor: CCD 1/3 inches Sony SUPER HAD II CCD
- Resolution:650 tvl ( b / w ), 600tvl ( color )
- Minimum illumination: 0.01Lux
- Operating voltage: 5V-22V
- Operating current: 70mA
- Dimension: 25 x 25mm
- OSD menu: support
- Pixel: PAL: 976 ( H ) x 494 ( V ); NTSC: 768 ( H ) X 494 ( V )
- DNR: 2DNR
- WDR: D-WDR
- Power: DC5V - 22V
- Workplace temperature: -10 degrees to 50 degrees
- Working humidity: 20 to 80 percent

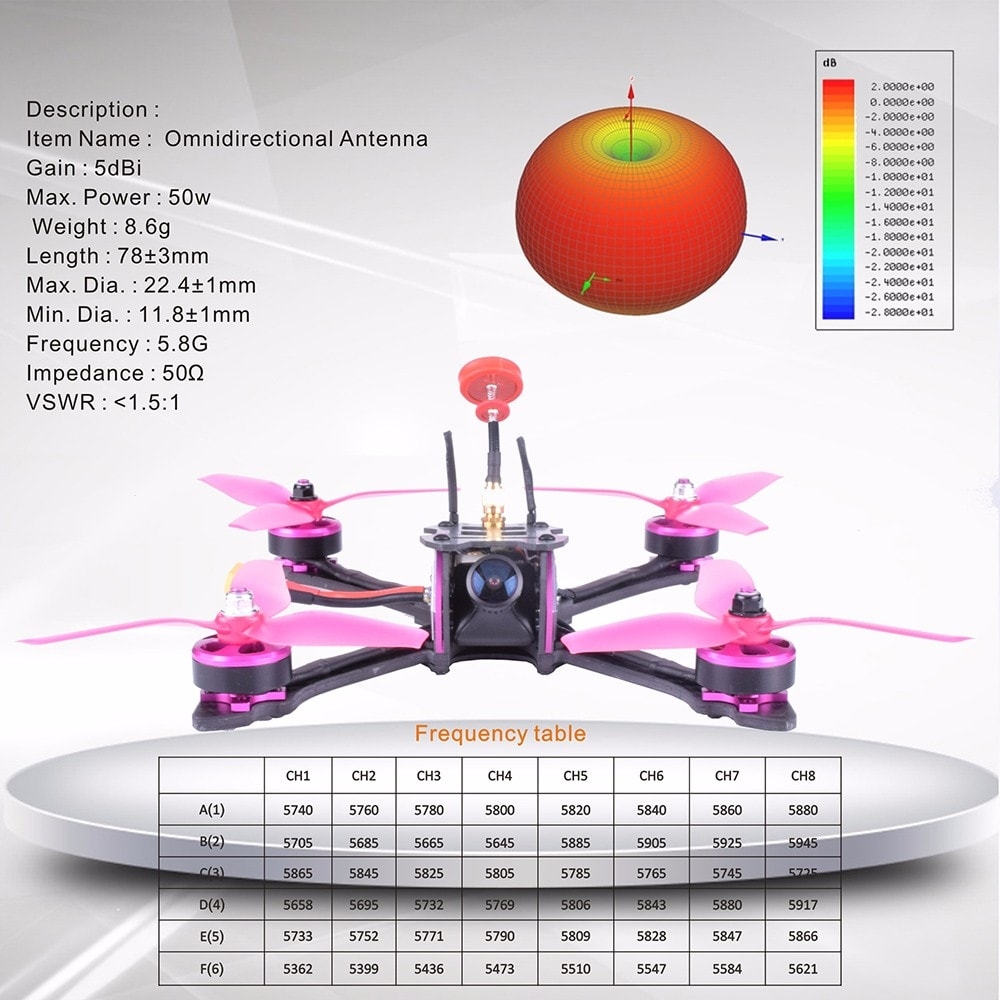

Antenna:
- Frequency: 5.8G
- Impedance: 50 ohm
- Gain: 5dBi
- Maximum power: 50W
- Connector: RP-SMA male
- VSWR: less than 1.5:1
- Polarization: RHCP
- Radiation: omnidirectional

Propeller:
- 5042 three-blade

LED Buzzer Module
- Operating voltage: 5V

Receiver
- PNP: no
- BNF: Frsky XM Plus Receiver
- 1.5km long-distance reception with dual antennas
- 16 channels available. Compatible with D16 mode transmitters
- Operating voltage: 3.7 - 10V
- Operating current: 30mA at 5V
