Main Features:
GB190 small yet fully functional FPV quadcopters have gained a lot of popularity recently
This quadcopter frame is light, strong, and leaves you loads of space for packing in all your FPV components. You will be amazed by the speed and agility that this little frame has
Specifications:
190mm airframe specifications:
- Material: carbon fiber
- Wheelbase: 190mm
- Arms board: 4mm
- Main board: 2mm
- Other board: 1.5mm
- Weight: 109g ( include aluminum parts )
- PDB board: output 5V 3A; 12V 3A

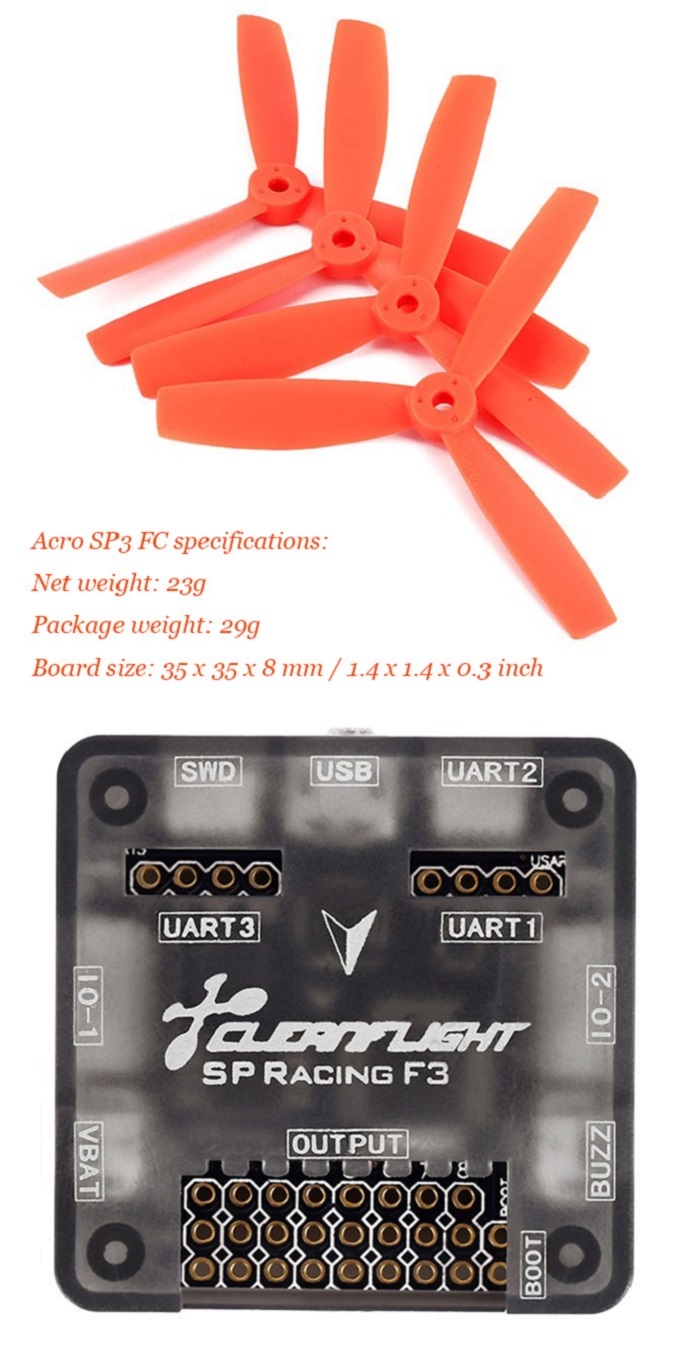

Acro SP3 specifications:
10DOF
Panel color: black
Board size: 35 x 35 x 8 mm / 1.4 x 1.4 x 0.3 inch
EMAX RS2205 brushless motor specifications:
Weight: approx. 30g with wires
Wire AWG: 20AWG
Stator diameter: 22mm
Stator height: 5mm
Shaft diameter: 3mm
Configuration: 12N14P
Motor diameter: 27.9mm
Motor height: 31.7mm
Prop adapter shaft thread: M5
Input voltage: 3 - 4 S ( 12.6 - 16.8 V )
KV2300 with HQ5045 BN max. thrust: 1024g

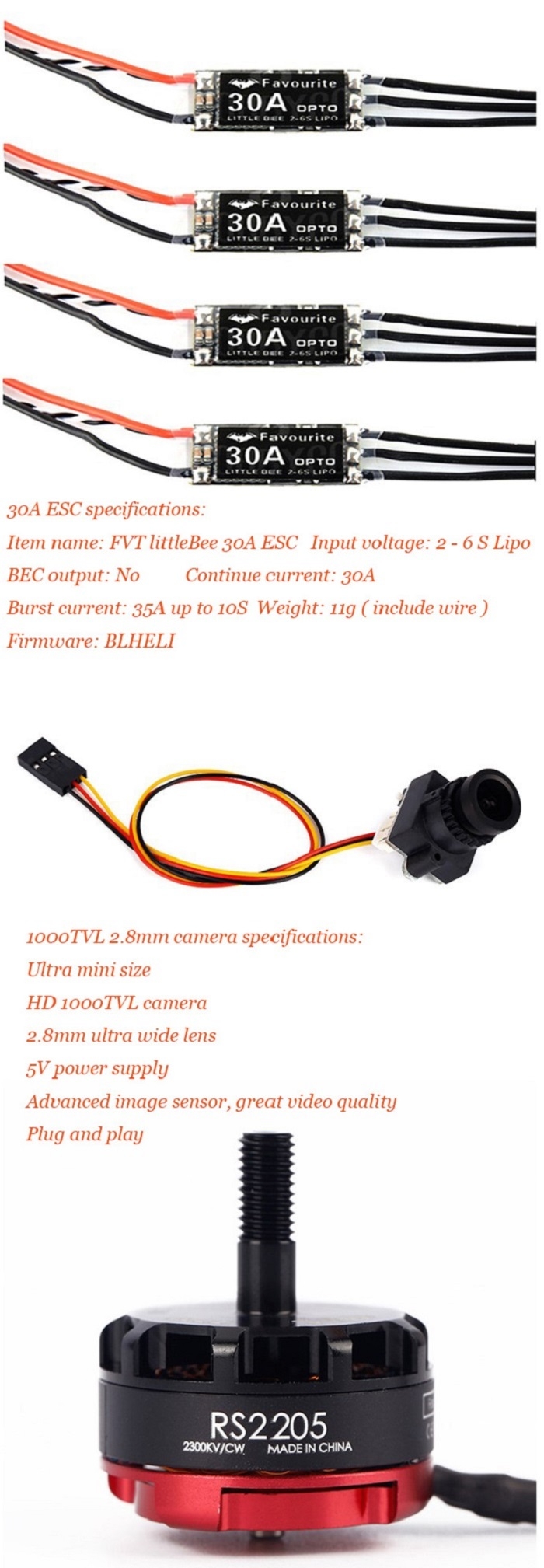

30A ESC specifications:
Item name: FVT littleBee 30A ESC
Input voltage: 2 - 6 S Lipo
BEC output: No
Continue current: 30A
Burst current: 35A up to 10S
1000TVL 2.8mm camera specifications:
Ultra mini size
HD 1000TVL camera
PCB board design, light weight, more application ability
Free switch between PAL / NTSC
Transmitter specifications:
Manufacturers ID: TS5823
Channel: 40
Transmission frequency: 5.6 - 5.9 GHz
Input voltage: 7 - 24 V
Transmitting power: 600mW
Working current: 190mA 12V
Video bandwidth: 8M
Audio coding: 6.5M
The transmitting end: RP-SMA jack
Antenna terminal: RP-SMA plug
Board color: blue
Dimensions: 38 x 18 x 8 mm ( excluding antenna base )
Net weight: 16g
12.4 - 16.8 V, 1300 - 1800 mAh ( 3 - 4 S ) battery ( not included )
Specification
General |
Type: Frame Kit |
|---|---|
Dimension and Weight |
Product weight: 0.3000 kg
Package weight: 0.9300 kg Product size (L x W x H): 17.00 x 17.00 x 7.50 cm / 6.69 x 6.69 x 2.95 inches Package size (L x W x H): 28.00 x 18.00 x 8.00 cm / 11.02 x 7.09 x 3.15 inches |
Package Contents |
Package Contents: 1 x Quadcopter Frame, 4 x Motor, 4 x ESC, 2 x CW Propeller, 2 x CCW Propeller, 1 x F3 Flight Controller Set, 1 x Power Distribution Board, 1 x 5.8G Antenna, 1 x 1000TVL Camera, 1 x 5.8G 600mW Transmitter |
