Main Features:

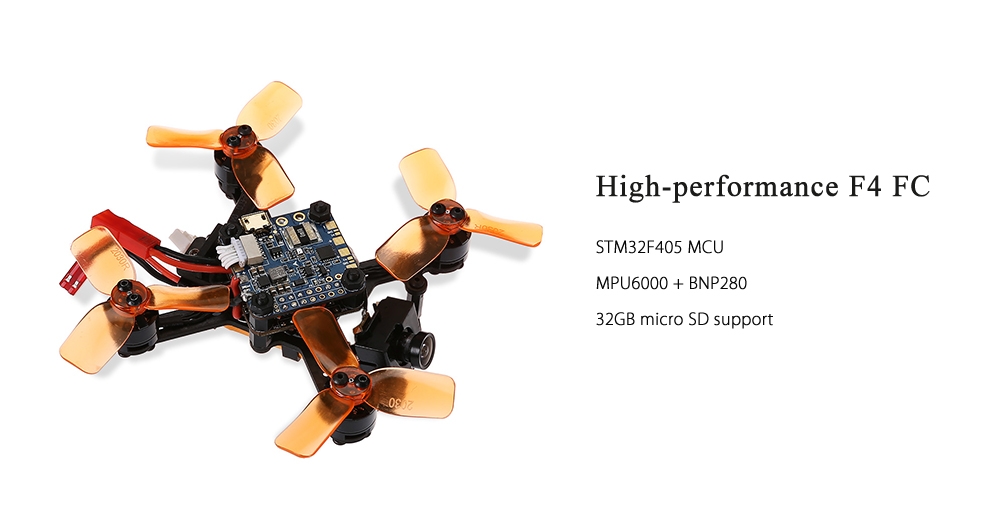

- High-performance F4 FC with STM32F405 MCU, BMP280, MPU6000 and micro SD card slot for flight data logging
- FLYSKY FS - A8S 2.4GHz 8-channel receiver intended for more fun in FPV racing and about 300m long control range

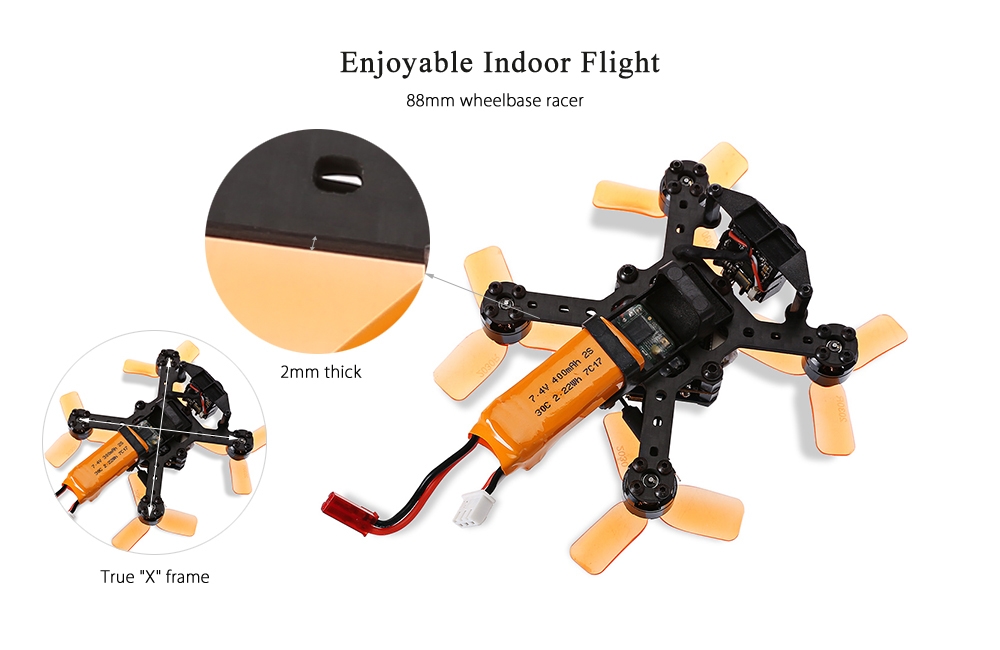

- Small and durable - 88mm wheelbase, true "X" configuration, 2mm thick 3K carbon fiber chassis

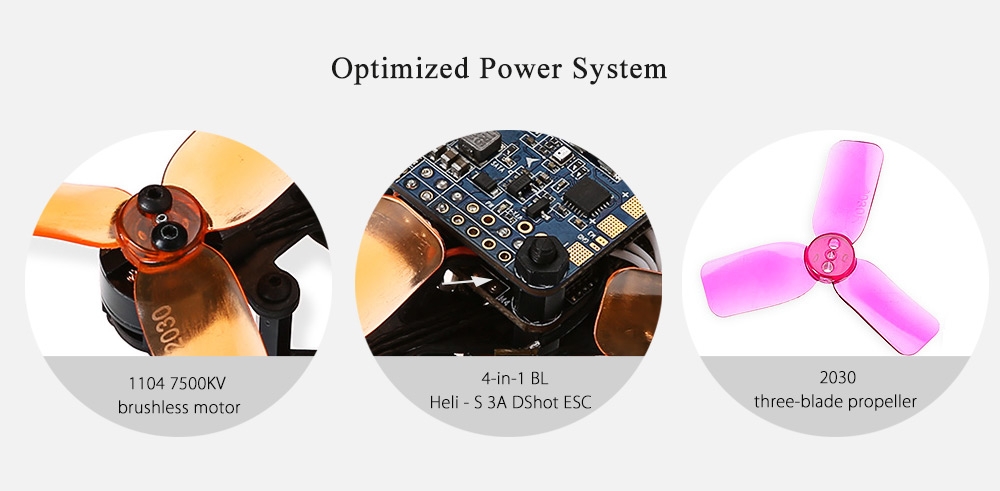

- Powerful 1104 7500KV high RPM brushless motors and 2030 three-blade propellers for thrilling flight
- 5.8G 40CH 25mW image transmission + 600TVL NTSC camera featuring good image quality in strong / low light and 120-degree FOV
Specifications:
General
Weight: 77.5g ( including battery )
Size: 7.3 x 7.3 x 3.5cm
Wheelbase: 88mm
Carbon fiber chassis: 2mm thick
Brushless motor: 1104 7500KV
Propeller: 2030 three-blade
Battery: 7.4V 300mAh 30C LiPo
Flight Controller
Processor: STM32F405 MCU
IMU: MPU6000 connected via SPI
Barometer: BMP280
Micro SD card slot: max. 32GB support
Integrated OSD: yes
Integrated BEC: yes
Dimension: 32 x 32mm
Mounting hole spacing: 25 x 25mm
4-in-1 ESC
Power supply: 1 - 2S
BEC output: no
Continuous current: 4 x 3A
Burst current: 4 x 7A
Weight: 2.7g
FPV Camera
Resolution: 600TVL
TV system: NTSC
Min. illumination: 1 lux
Field of view: 120 degree
Input voltage: 2.5 - 5V

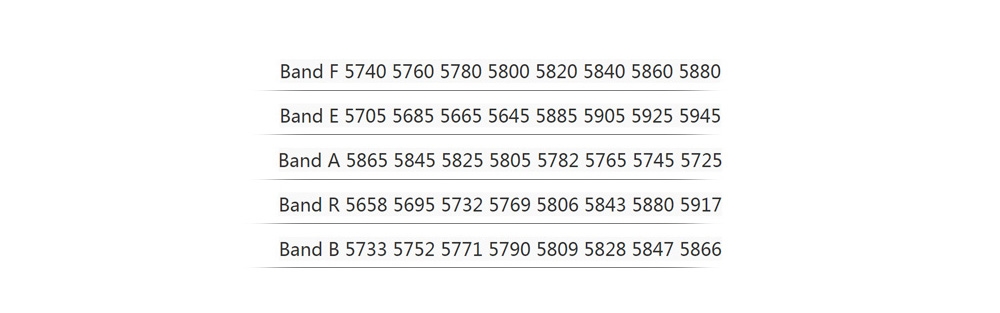

Frequency range: 5645 - 5945MHz
Channels: 40 ( including RaceBand, Band R )
Power: 25mW
FLYSKY FS - A8S Receiver
Frequency: 2.4GHz
Channels: 8 ( PPM ), 18 ( iBUS )
Receive distance: about 300m
Compatibility: FS - i10, FS - i6S, FS - i6X, FS - TM10, FS - TM8
Note:
The flight controller only supports SBUS receivers.
The propeller colors ( orange, purple and transparent ) will be shipped randomly.
Click here to download the wiring diagrams and FPV camera user manual.
Specification
General |
Brand: Ideafly
Type: Frame Kit Version: BNF |
|---|---|
Motor |
Model: 1104
Motor Type: Brushless Motor KV: 7500 |
Flight Controller |
Flight Controller Type: F4 |
Camera |
Video Resolution: 600TVL
Video Standards: NTSC |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Oneshot125,Oneshot42 |
Battery |
Battery (mAh): 300mAh
Battery Coulomb: 30C Flying Time: 5-8mins Charging Time (h): 50mins Plug Type: JST,Other Plug |
Dimension and Weight |
Product weight: 0.0775 kg
Package weight: 0.1900 kg Product size (L x W x H): 7.30 x 7.30 x 3.50 cm / 2.87 x 2.87 x 1.38 inches Package size (L x W x H): 17.30 x 14.20 x 5.00 cm / 6.81 x 5.59 x 1.97 inches |
Package Contents |
Package Contents: 1 x Drone ( Battery Included ), 4 x Spare 2035 Four-blade Propeller, 1 x Sticker |
