JX Servo PDI-HV6214MG 15kg 120 Degree High Precision Metal Gear Digital Standard Servo - 11.99 €

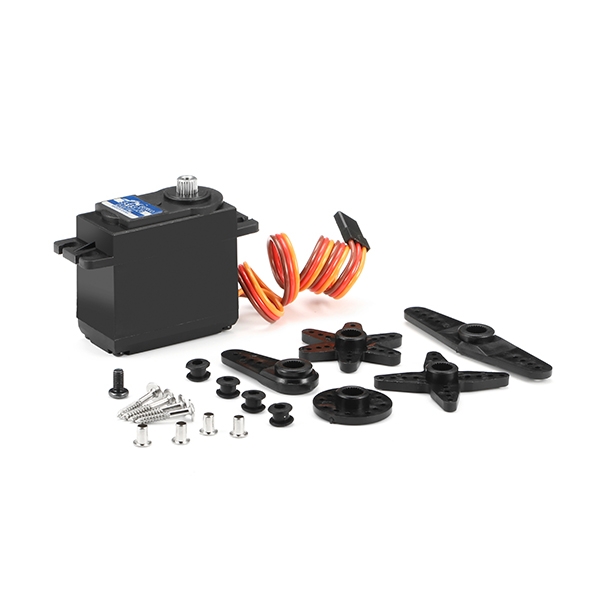

JX Servo PDI-HV6214MG 15kg 120 Degree High Precision Metal Gear Digital Standard Servo
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €


JX Servo PDI-HV6214MG 15kg 120 Degree High Precision Metal Gear Digital Standard Servo
Feature:
- High performance digital standard servo
- High-precision Taiwan-made aluminium gears with hard anodizing
- CNC aluminium middle Shel
- Dual ball bearings
Specifications:

Maximum angle: 120°
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: high quality core motor
Operating Speed (6V): 0.18sec/60°
Operating Speed (7.4V): 0.16 sec/60°
Stall Torque (6V): 12.8kg.cm (177.7oz/in)
Stall Torque (7.4V): 14.6 kg-cm (205.53oz/in)
Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49in
Weight: 62g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Package Included:
1x JX PDI-HV6214MG Servo
