Description:

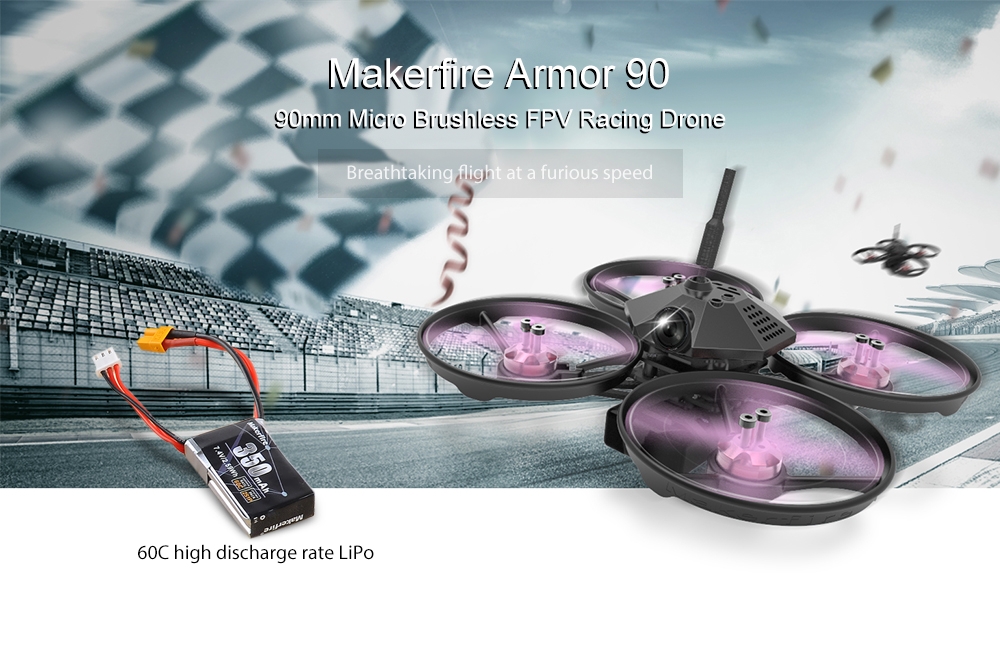

Makerfire Armor 90 is a 90mm FPV racing drone which uses MKF1104 7500KV high RPM brushless motors, enabling it to fly at a thrilling speed. In addition, the F3 flight controller and the 4-in-1 BLHeli - S 10A ESC ensure the high performance of this RC racer. More importantly, the prominent tank shape canopy and propeller guards protect the camera and propellers from the crash respectively, which ensures the durability of the multirotor.
Main Features:
â Furious flight with MKF1104 7500KV high RPM brushless motor
â High-performance F3 FC + 4-in-1 BLHeli - S 10A ESC with LDO function
â AIO 600TVL FPV camera with 5.8G 48CH 25mW VTX and 3dBi whip antenna

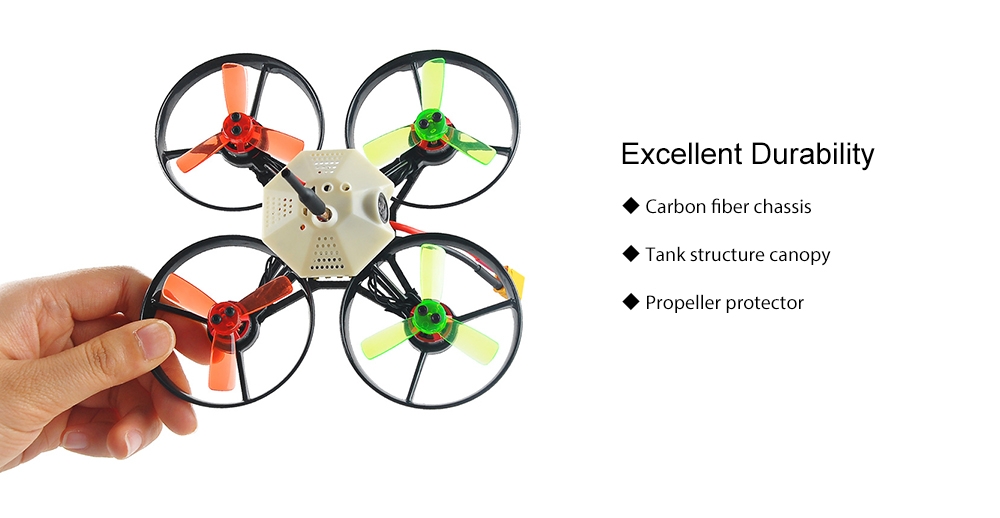

â Durable 3K full carbon fiber chassis, tank shape canopy, and propeller guard
Specifications:
Weight: 60.5g ( without battery )
Brushless motor: MKF1104 7500KV
Brushless ESC: 4-in-1 BLHeli - S 10A with LDO function
Flight controller: F3 with OSD
Firmware: BetaFlight OMNIBUS
Propeller: 1935 three-blade
Camera: 600TVL
Field of view: 120 degree
Video transmitter: 5.8G 48CH 25mW
Antenna gain: 3dBi
Different Versions:
PNP version: no receiver nor battery is included
BNF version: receiver and battery are included
Specification
General |
Brand: Makerfire
Type: Frame Kit |
|---|---|
Motor |
Model: MKF1104
Motor Type: Brushless Motor KV: 7500 |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 600TVL
Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli-S |
Dimension and Weight |
Product weight: 0.0850 kg
Package weight: 0.2960 kg Product size (L x W x H): 12.00 x 12.00 x 4.00 cm / 4.72 x 4.72 x 1.57 inches Package size (L x W x H): 26.50 x 15.50 x 5.50 cm / 10.43 x 6.1 x 2.17 inches |
Package Contents |
Package Contents: 1 x Drone, 1 x Set of Spare Propellers, 1 x USB Cable, 1 x Power Cable, 1 x Battery Strap, 1 x Set of Propeller Guards |
