Description:
P180 180mm FPV racing drone features the high thrust-to-weight ratio and the use of the Pagoda II antenna. Each of the motors is capable of generating up to 1050g thrust, and the BLHeli - S 30A ESCs enable them to respond quickly and accurately, allowing you to enjoy flying at full throttle. More importantly, the reliable Pagoda II antenna ensures the fluent FPV no matter the flying environment is. Thus, you can get the maximum immersion that you are looking forward to.
Main Features:

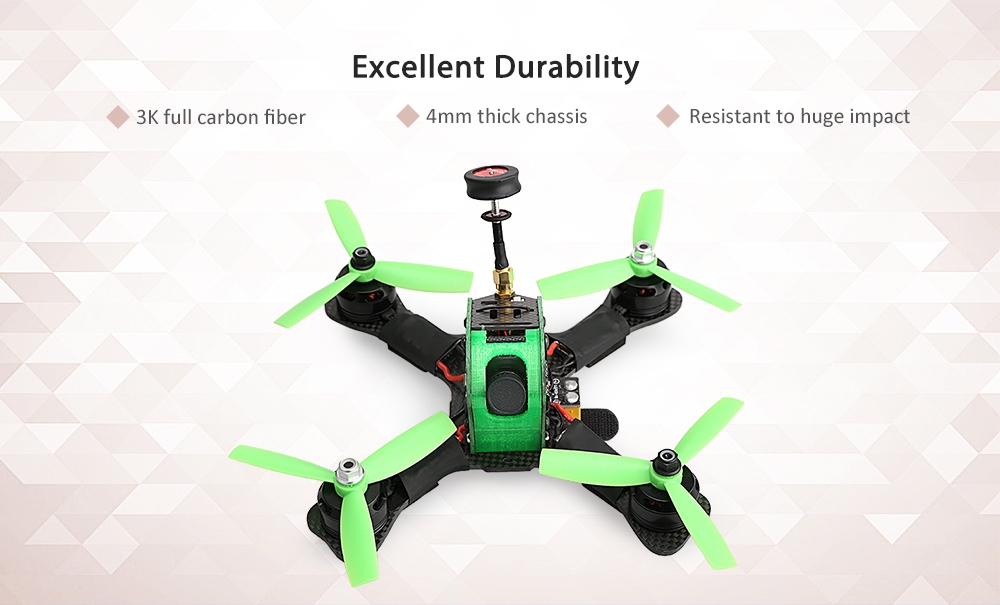

â Durable 3K full carbon fiber frame with 4mm thick chassis
â Mainstream F3 flight controller with integrated OSD and buzzer

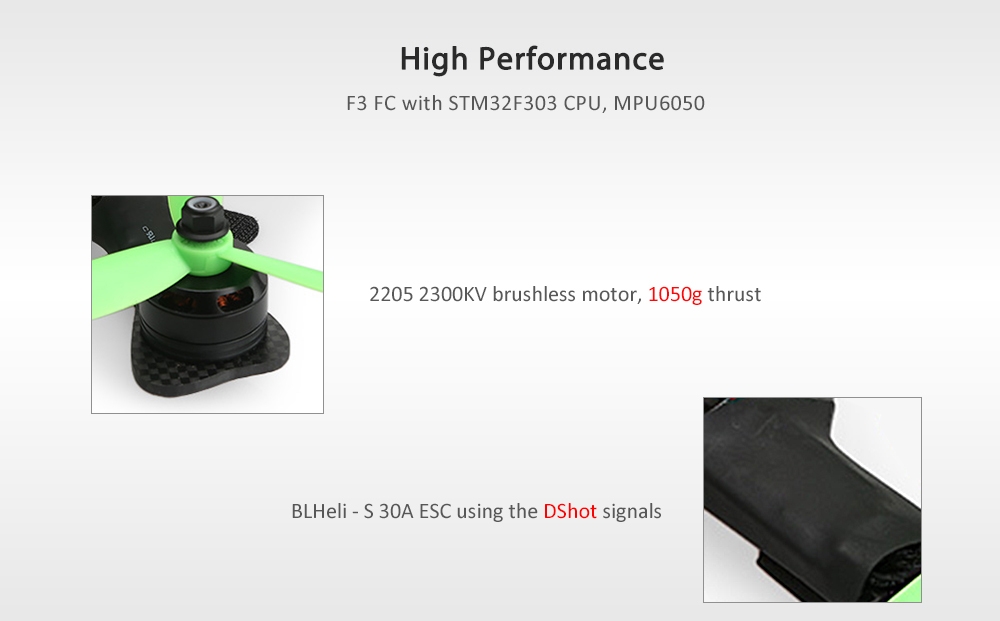

â Powerful 2205 2300KV brushless motor + BLHeli - S 30A DShot ESC

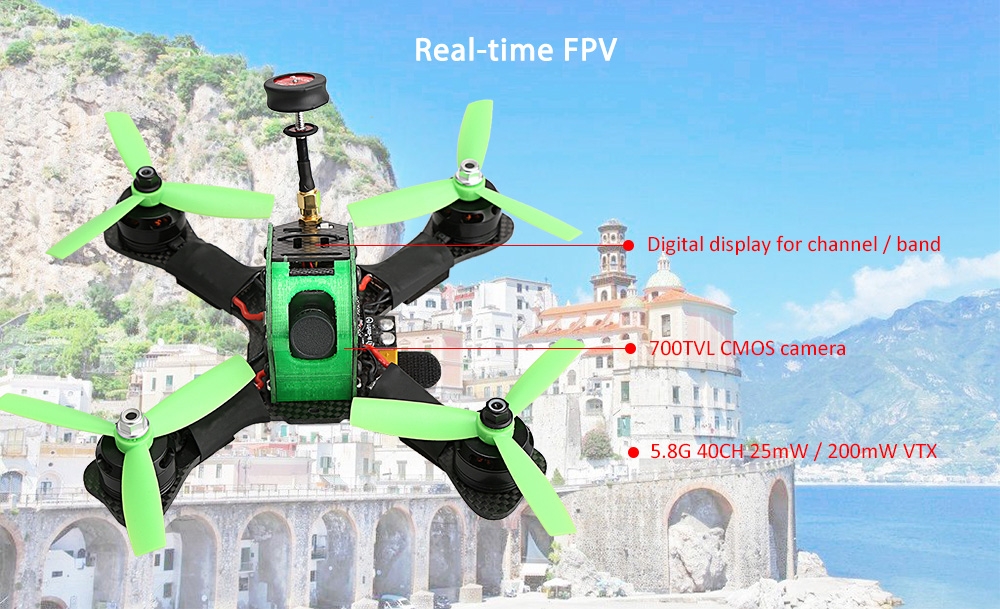

â 5.8G 40CH real-time FPV, 700TVL camera, 25mW / 200mW switchable

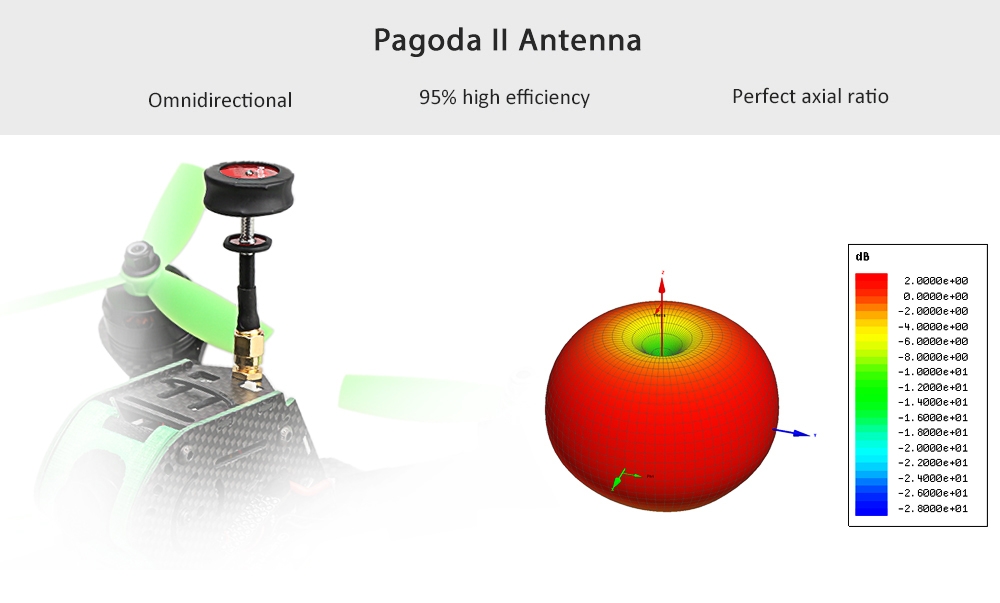

â Pagoda II 5.8G 2dBi antenna guarantees the maximum signal coverage
Specifications:
Wheelbase: 180mm
Weight: 299g ( not including battery, antenna and propeller )
Chassis thickness: 4mm
Material: 3K carbon fiber
Flight controller: F3 with integrated OSD, buzzer
CPU: STM32F303, 72MHz inc FPU
IMU: MPU6050
Brushless motor: 2205 2300KV
ESC: BLHeli - S 30A ( 45A burst current )
Camera: 700TVL CMOS PAL
Pagoda II antenna: 5.8G 2dBi
Video transmitter: 5.8G 40CH 25mW / 200mW switchable
Different Versions:
PNP: no receiver
BNF FrSky: FrSky 16CH receiver, compatible with TARANIS transmitter
BNF FLYSKY: FS - iA6 6CH AFHDS 2A receiver, compatible with FS - i6 transmitter
Specification
General |
Type: Frame Kit
Version: BNF |
|---|---|
Motor |
Model: 2205
Motor Type: Brushless Motor KV: 2300 Configuration: 12N 14P No. of Cells: 3 - 4S Maximum Thrust: 1050g |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Camera Pixels: 700TVL
Video Standards: PAL Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: Damped Light,DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Continuous Current: 30A Burst Current: 45A Input Voltage: 3 - 6S |
Dimension and Weight |
Product weight: 0.2990 kg
Package weight: 0.7450 kg Product size (L x W x H): 17.00 x 17.50 x 7.00 cm / 6.69 x 6.89 x 2.76 inches Package size (L x W x H): 37.50 x 12.20 x 27.30 cm / 14.76 x 4.8 x 10.75 inches |
Package Contents |
Package Contents: 1 x Drone, 1 x Battery Strap, 1 x Battery Fitting, 8 x Propeller, 1 x Antenna |
