QX - MOTOR QM2804 2204 2300KV Brushless Motor

QX - MOTOR QM2804 2204 2300KV Brushless Motor
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Durable Japanese NMB ball bearings, efficient stator steel
- Rare-earth magnets stable under up to 180 Deg.C condition
- Oxygen-free pure copper wires, CNC machined aluminum case
- Patented balance technique, unique wiring method

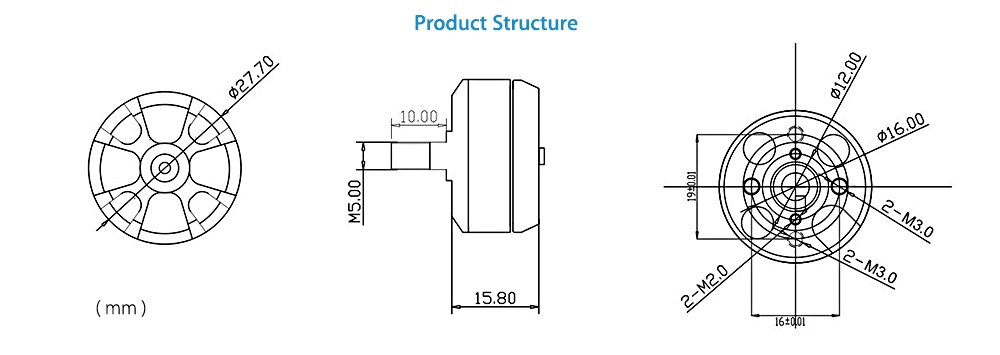

Specification

General

Brand: QX-MOTOR
Type: Motor

Motor

Model: QM2804 2204
Motor Type: Brushless Motor
KV: 2300
Stator Length: 4.5mm
Configuration: 12N 14P
Stator Diameter: 22mm
Shaft Diameter: 5mm
Max. Continuous Current (A): 17.5A
No. of Cells: 2 - 3S LiPo
Max. Continuous Power (W): 194W
CW / CCW: CCW

Dimension and Weight

Product weight: 0.0270 kg
Package weight: 0.0660 kg
Product size (L x W x H): 2.77 x 2.77 x 3.20 cm / 1.09 x 1.09 x 1.26 inches
Package size (L x W x H): 9.00 x 5.60 x 4.20 cm / 3.54 x 2.2 x 1.65 inches

Package Contents

Package Contents: 1 x Motor, 1 x Pack of Accessories

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Note:
Product photography is for illustration only. The product sold may have minor physical differences depending on manufacturer specifications, production batch, etc. Customers should carefully consider this before purchase.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
