Main Features:
- Lightweight 3K full carbon fiber frame integrated with PCB. "X" configuration, excellent maneuverability

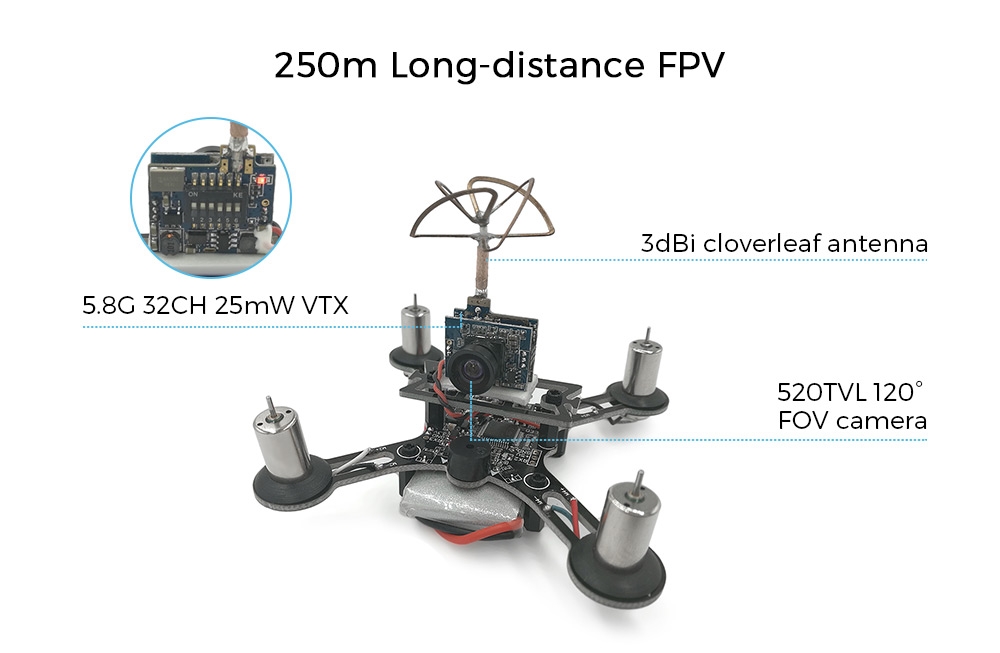

- 5.8G real-time image transmission, 32-channel coverage, 250m effective FPV distance in open air
- Integration of 520TVL 120-degree camera, 5.8G 32CH 25mW video transmitter and 3dBi antenna

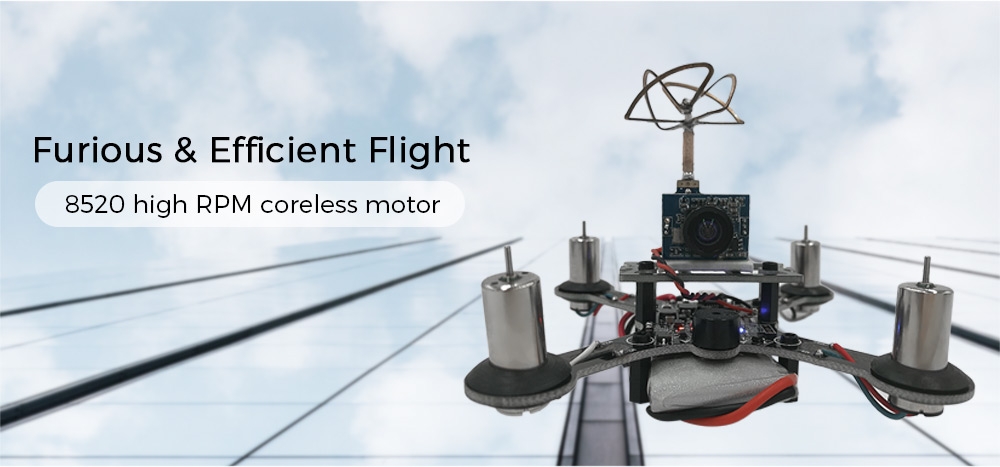

- Thrilling flying experience with 32-bit F3 flight controller and 8520 high RPM coreless motor
- CleanFlight pre-loaded, BetaFlight support. Parameters adjustable via CleanFlight Configurator
Specifications:
Wheelbase: 90mm
Chassis thickness: 1.5mm
Video transmitter: 5.8G 32CH 25mW
Antenna: 3dBi cloverleaf antenna
Image transmission distance: 250m ( in open air )
Camera: 520TVL 120-degree FOV
Motor: 8520 coreless

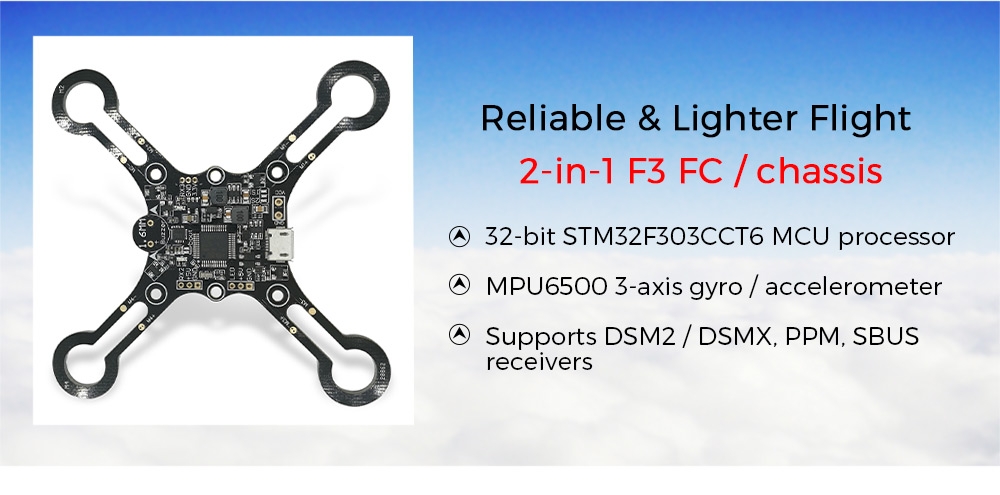

Flight controller: QX90 F3 EVO
MCU: STM32F303CCT6 32-bit processor
MPU: MPU6500 gyro / accelerometer

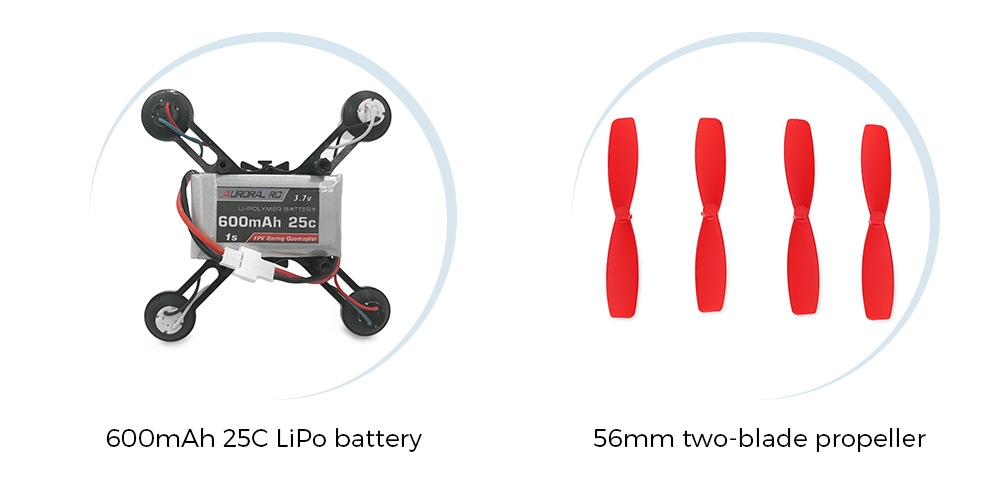

Battery: 600mAh 3.7V 25C LiPo ( included )
Propeller: 56mm
Specification
General |
Type: Frame Kit |
|---|---|
Dimension and Weight |
Package weight: 0.115 kg
Product size (L x W x H): 8.20 x 8.20 x 7.00 cm / 3.23 x 3.23 x 2.76 inches Package size (L x W x H): 10.00 x 10.00 x 10.00 cm / 3.94 x 3.94 x 3.94 inches |
Package Contents |
Package Contents: 1 x QX90 Frame Kit, 4 x 8520 Coreless Motor, 1 x 520TVL AIO FPV Camera, 8 x Propeller, 1 x Propeller Puller, 1 x 600mAh 3.7V 25C LiPo Battery, 1 x Charging Cable |
