Main Features:

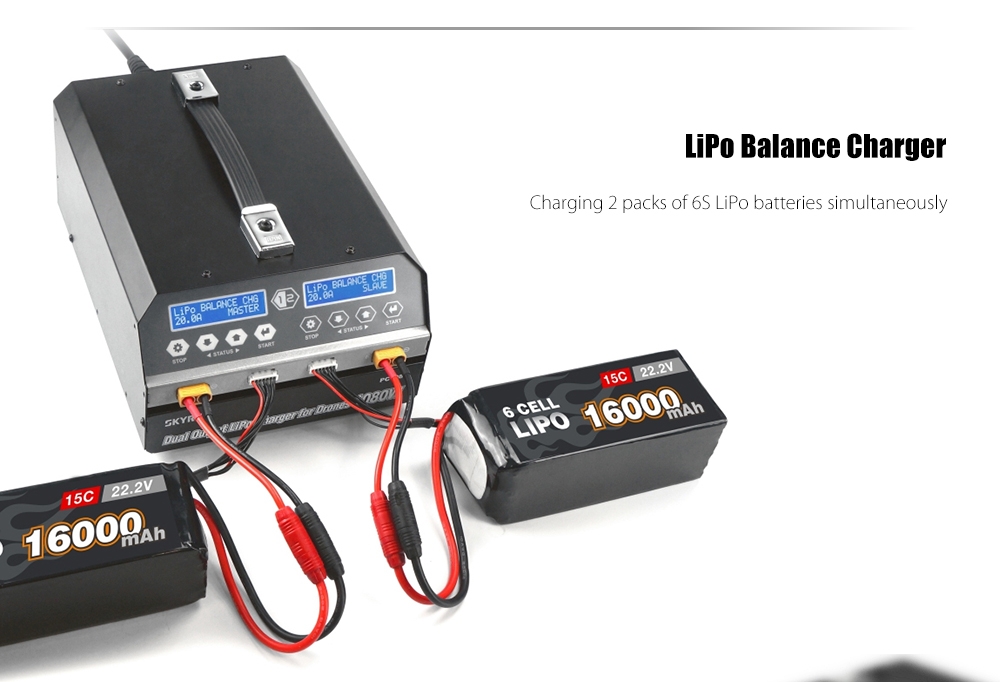

â Supports charging 2 packs of 6S LiPo batteries simultaneously

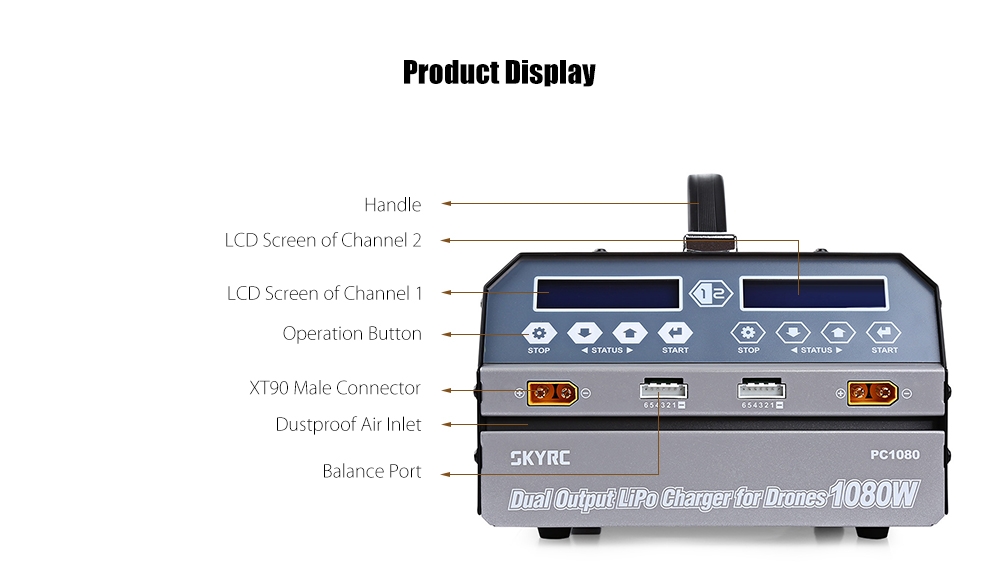

â 2 LCD screens for displaying the real time charging / discharging status
â Three working modes: balance charge mode, storage mode and charge mode
â Master / slave mode effectively shortens the setting time by auto synchronization
â Short circuit protection, reverse polarity protection, over temperature protection
â Charging current can be adjusted from 1.0 to 20.0A
â Built-in battery voltage meter and battery internal resistance meter

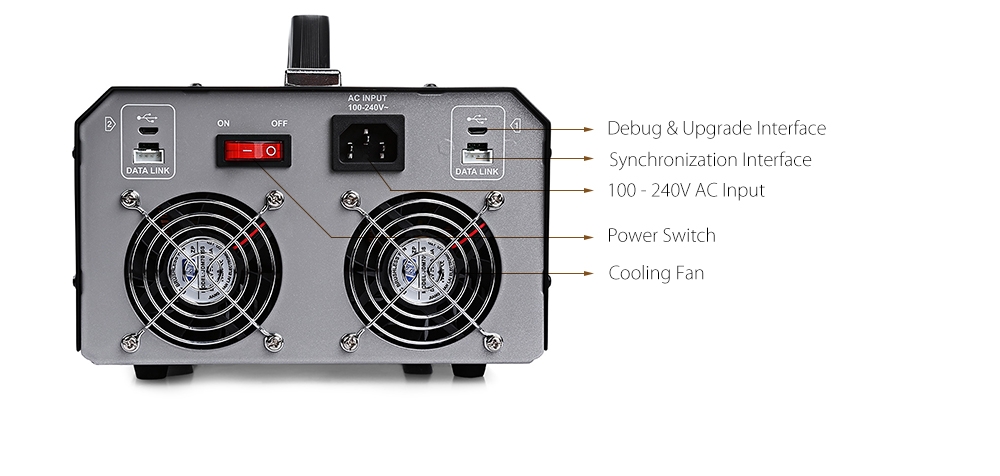

â Firmware can be upgraded via USB port
Specifications:
Single LCD screen size: 6.3 x 1.4cm
Input voltage: 100 - 240V
Output power: 1080W ( 2 x 540W )
Discharge power: 100W ( 2 x 50W )
Charging current range: 2 x ( 1.0 to 20.0A )
Balance current: 1.2A
Compatible battery type: LiPo / LiHV
Battery cell count: 2 x 6S
Working mode: Balance Charge Mode, Storage Mode, Charge Mode
Application: for plant protection drones
Specification
General |
Brand: SKYRC
Type: Balance Charger |
|---|---|
Charger Informations |
Charger Power Supply: AC
Input Voltage (V) : 100 - 240V |
Dimension and Weight |
Product weight: 5.0100 kg
Package weight: 5.6100 kg Product size (L x W x H): 27.20 x 20.20 x 11.86 cm / 10.71 x 7.95 x 4.67 inches Package size (L x W x H): 37.80 x 25.00 x 16.80 cm / 14.88 x 9.84 x 6.61 inches |
Package Contents |
Package Contents: 1 x Balance Charger, 1 x Data Cable, 1 x Power Cable, 1 x English Manual |
