Racer Micro brushless frames for 1103-1105 motors (Easy race brushless micro quadcopter parts list)

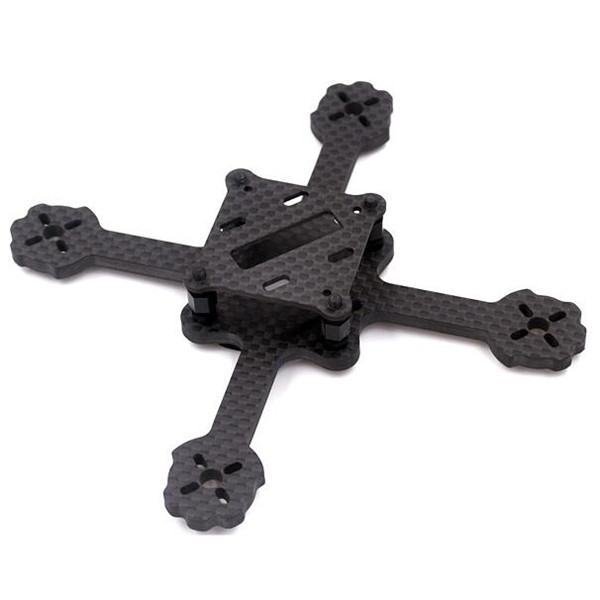

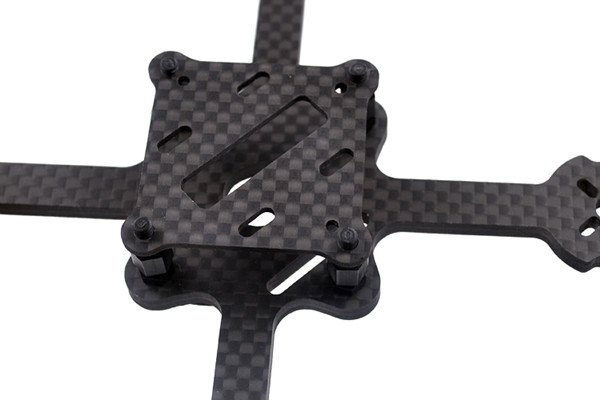

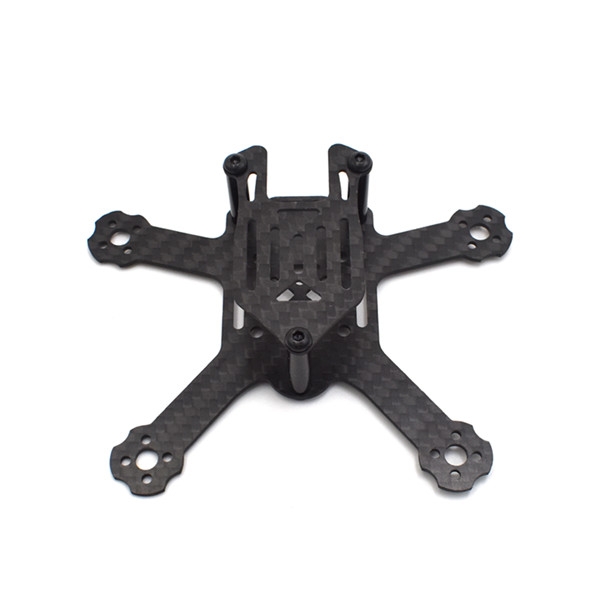

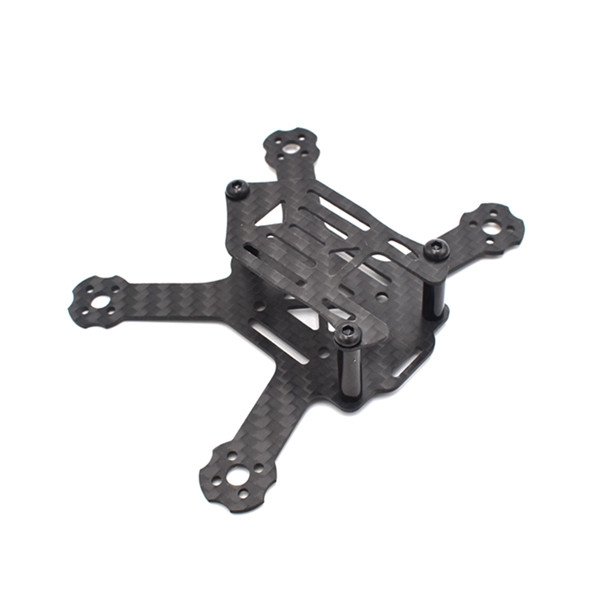

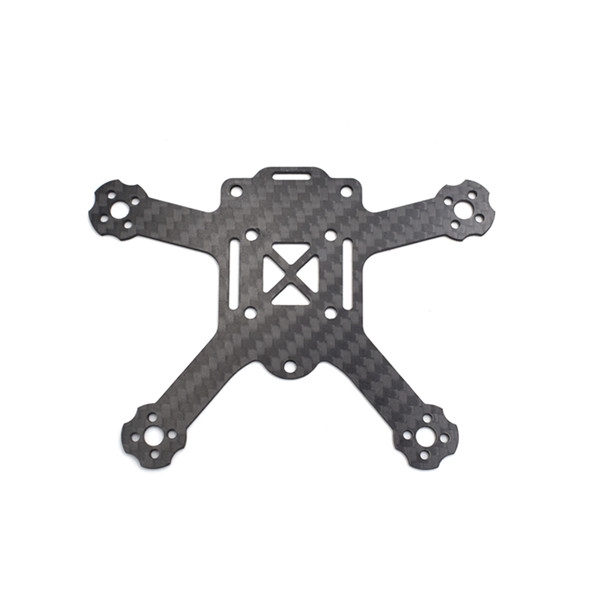

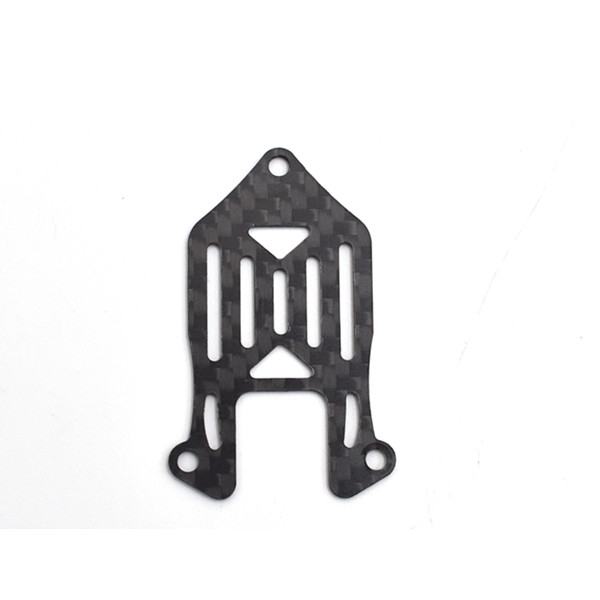

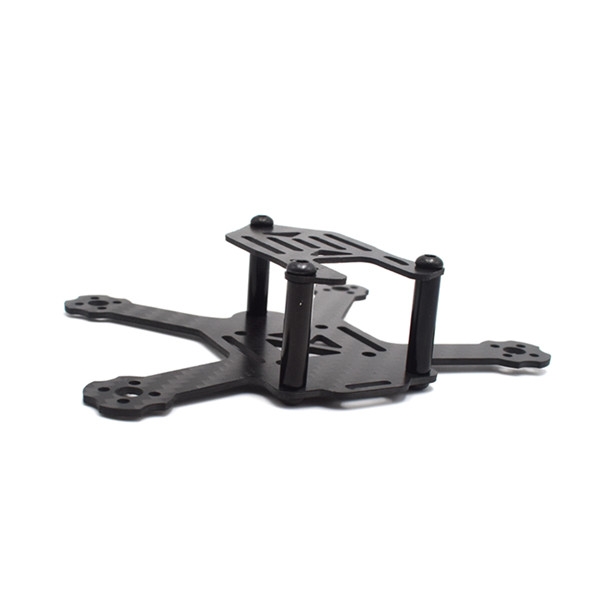

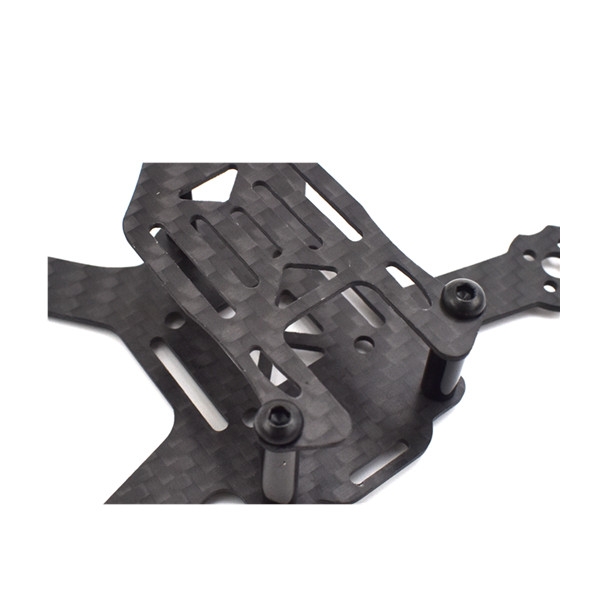

Realacc Bobo 95mm Carbon Fiber Frame Kit with PDB for FPV Racing
Specification:
Brand: Realacc
Item Name.: Bobo
Wheelbase: 95mm
Top board thickness: 1mm
Bottom board thickness: 1.5mm

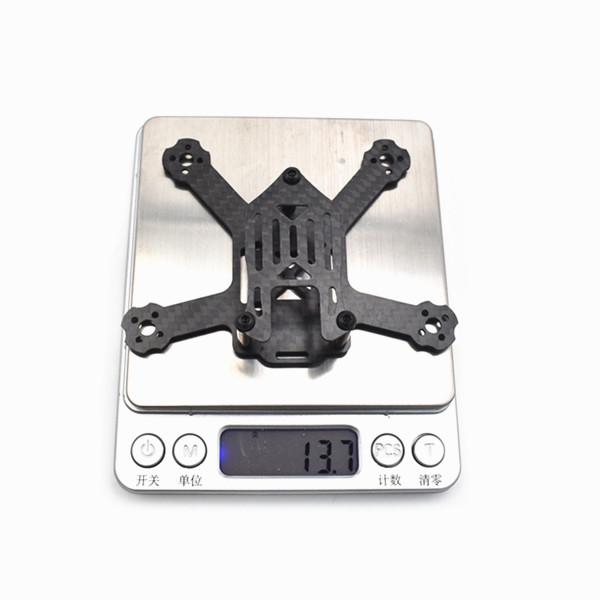

Net weight: 13.8g
Motor mounting hole: 9x9
Flight control mounting hole: 20x20

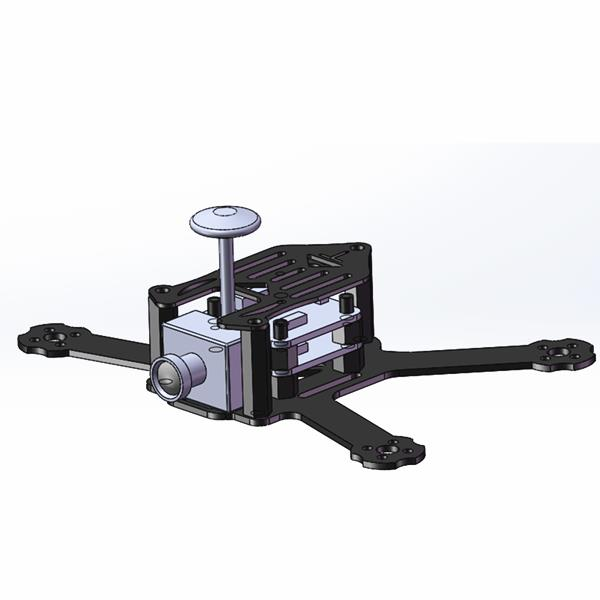

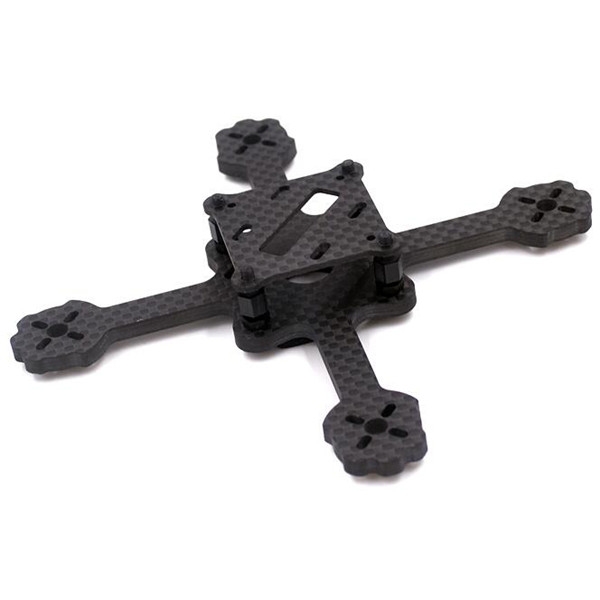

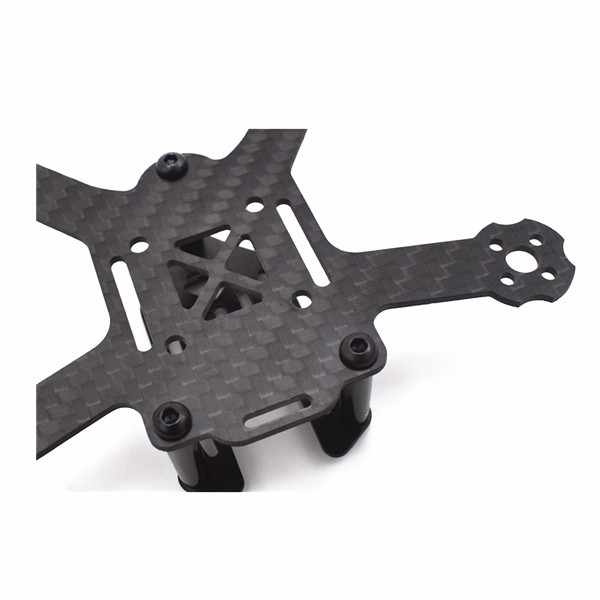

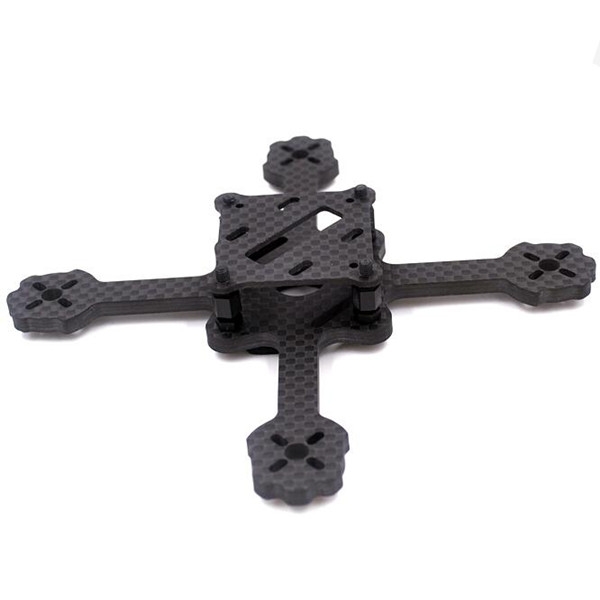

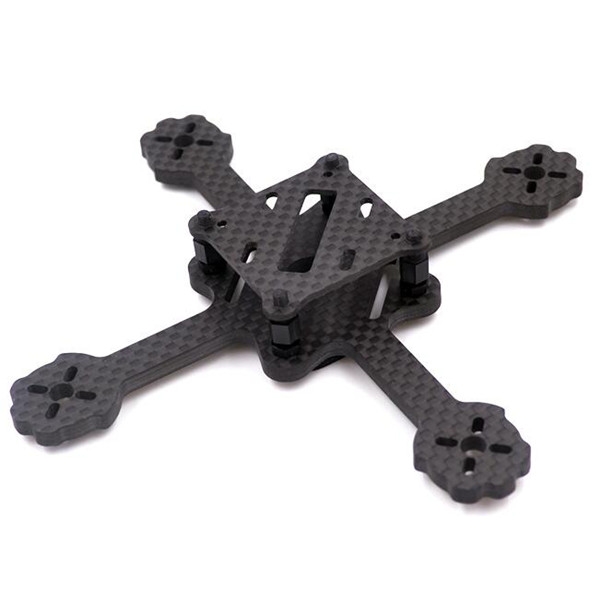

X112 112MM X Type Mini Racing Frame Kit with 3MM 4MM carbon
Specification:
Item Name: QAV130 112MM X Type Mini Frame Kit
Model: X112
Wheelbase: 112MM
Bottom Plate Thickness: 3MM/4MM
Version: 3MM Or 4MM (Bottom Plate)
Upper Plate Thickness: 1.5MM
Weight: 20g (3MM Version)
30g (4MM Version)
Flight Control Board: 30.5x30.5 Installing Hole FC

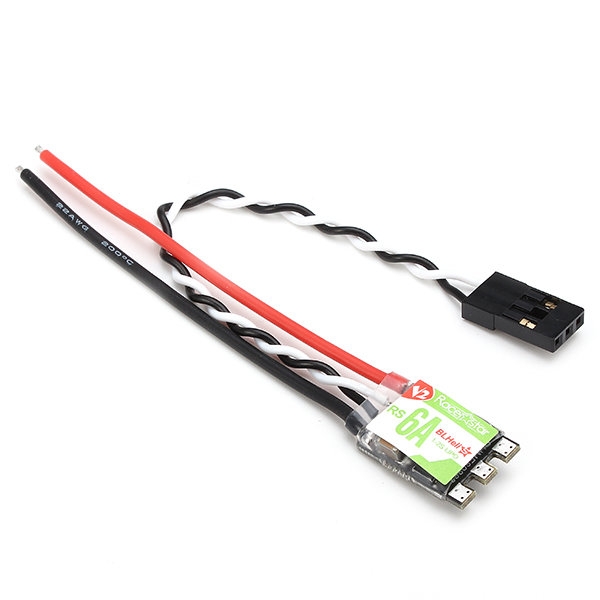

Racerstar RS6A V2 BB2 Blheli_S 6A 1-2S Brushless ESC Oneshot42 Oneshot125 16.5 Dshot600 18*11mm
Specification:
Brand Name: Racerstar
Model: RS6A V2
Item Name: 6A BB2 Blheli_S 1-2S ESC
Input Voltage: 1-2S
Con.Current:6A
Peak Current(10s):10A
BEC:NO
Programming :YES
Net Weight: 1.1g
Size:18*11mm

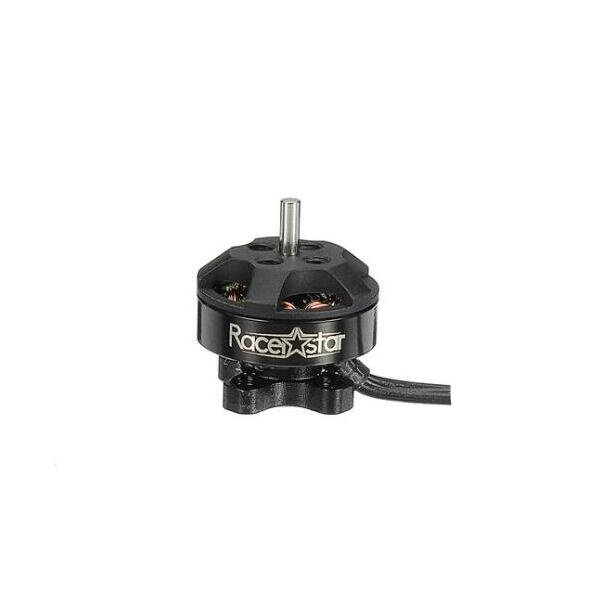

RaceStar BR1103 v2 10000KV Brushless Motor

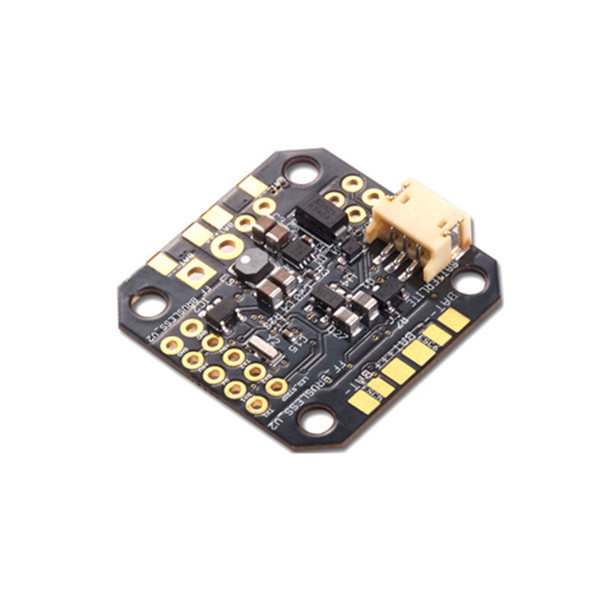

CleanFlight & BetaFlight Micro F3 Flight Controller Built-in PDB Buzzer Port 20X20mm For FPV Racing
Weight: 2.8 gr
The FIRST and ONLY 20X20mm platform micro flight controller with F3 chip
The FIRST and ONLY micro flight controller with PDB built-in Heavy Duty 2A BEC @ 5V Output Built-in
LC filter Built-in Built In Buzzer Gold Plated Pads for the Very Best ConnectivityFirmware Perfection via CleanFlight & BetaFlight
Sbus Ready w/ Built In Inverter
FrSky Telemetry, Ready & Waiting
Full USB Support
Mounting Simplicity via 3mm Screws
Ultra Compact Design for Ease of Installation

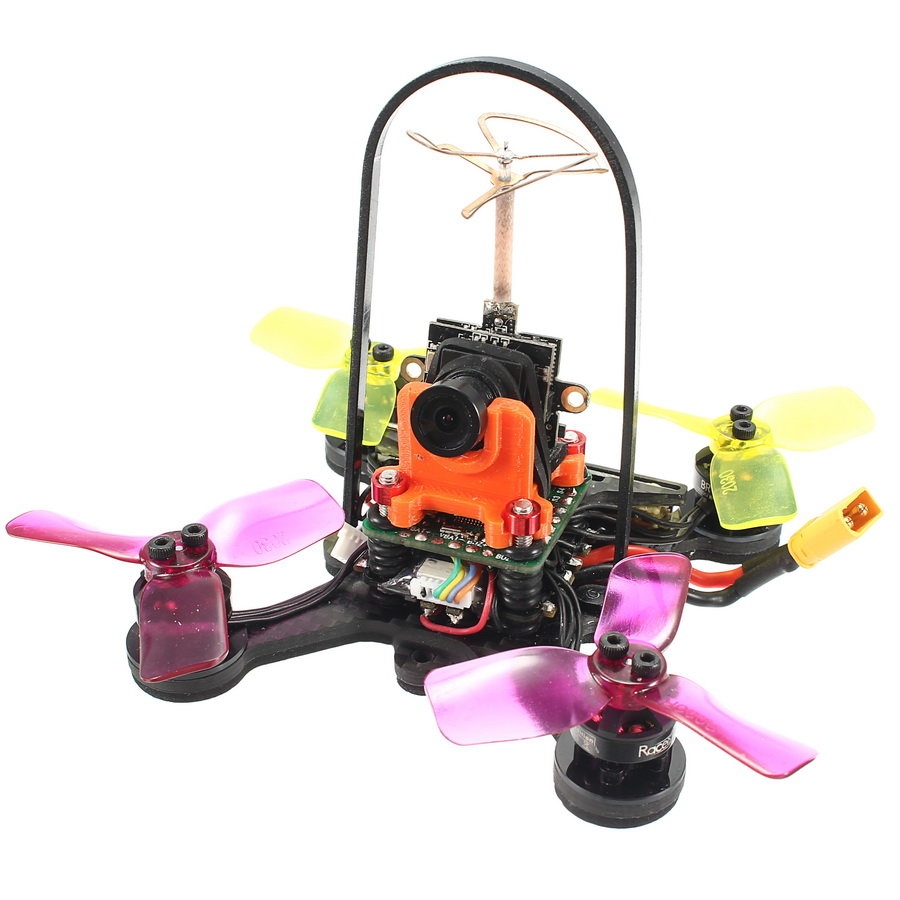

Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera 2-3S
Fully ready to fly version.
| Specification | Features | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chaser88 Frame | Package : 215×110×265mm Weigh(without battery): 67g Weight (with battery): 90g Package Weigh: 215g |
Compatible with 2030 inches propeller Compatible with 1103 motor Can be used with 2-3S battery Wheelbase: 88mm Flight time: 3.5mins Batterry: 2S 45C 450mah With direction indicator LED |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ESC | Model: BLHELI-S 6A Continuous Current: 6A Instantaneous Current(10S): 10A BEC: NO Li-Po Battery: 1-2S Programming: Yes Weight: 5G Size(PCB): 27 x 27mm M3 install Pitch: 20 x 20mm Support DSHOT600 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motor | 1103 10000KV Voltage: 11.1V Power: 64.4W Prop: 2 inches Efficiency: 1.4 g/w Load current: 5.8A Lipo cell: 1-3s Pull: 90g Weight: 3.7 g |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Flight Controller |
F3 Mini Firmware version: bf 1.3.1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 800TVL Camera | Sensor: 1/3 "CMOS Lens: M8 800TVL Lens Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective Format: NTSC / PAL (switchable) Resolution: NTSC: 960X480/ PAL:960X480 Power consumption: 380mA @ 3.7V Power: 3.6-5.5V Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FPV Transmitter | Support video format: NTSC / PAL Output Impedance: 75 Ohm Output signal strength: 23 ~ 24dBm Output Power: 25mW Wireless Channel: 40CH Antenna: RHCP circular polarization clover leaf antenna Operating voltage: 3.6V ~ 5.5V Current: 100mA Audio carrier: 6.5MHz Button function Short press (Apr. 1 sec or less): Change channels 1-8 Long press (More than 1.5 sec): Change bands A-B-E-F-R Long + press (More than 3 sec): Change NTSC/PAL system NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package Included:
1 X Frame Kit
4 X 1103 motor
4 X 2030 Propeller
1 X Camera
1 X VTX
1 X Antenna
1 X 4 IN 1 ESC
1 X Flight controller
1 X LED with Buzzer
1 X Battery
1 X Black Alumina Camera protection ring
